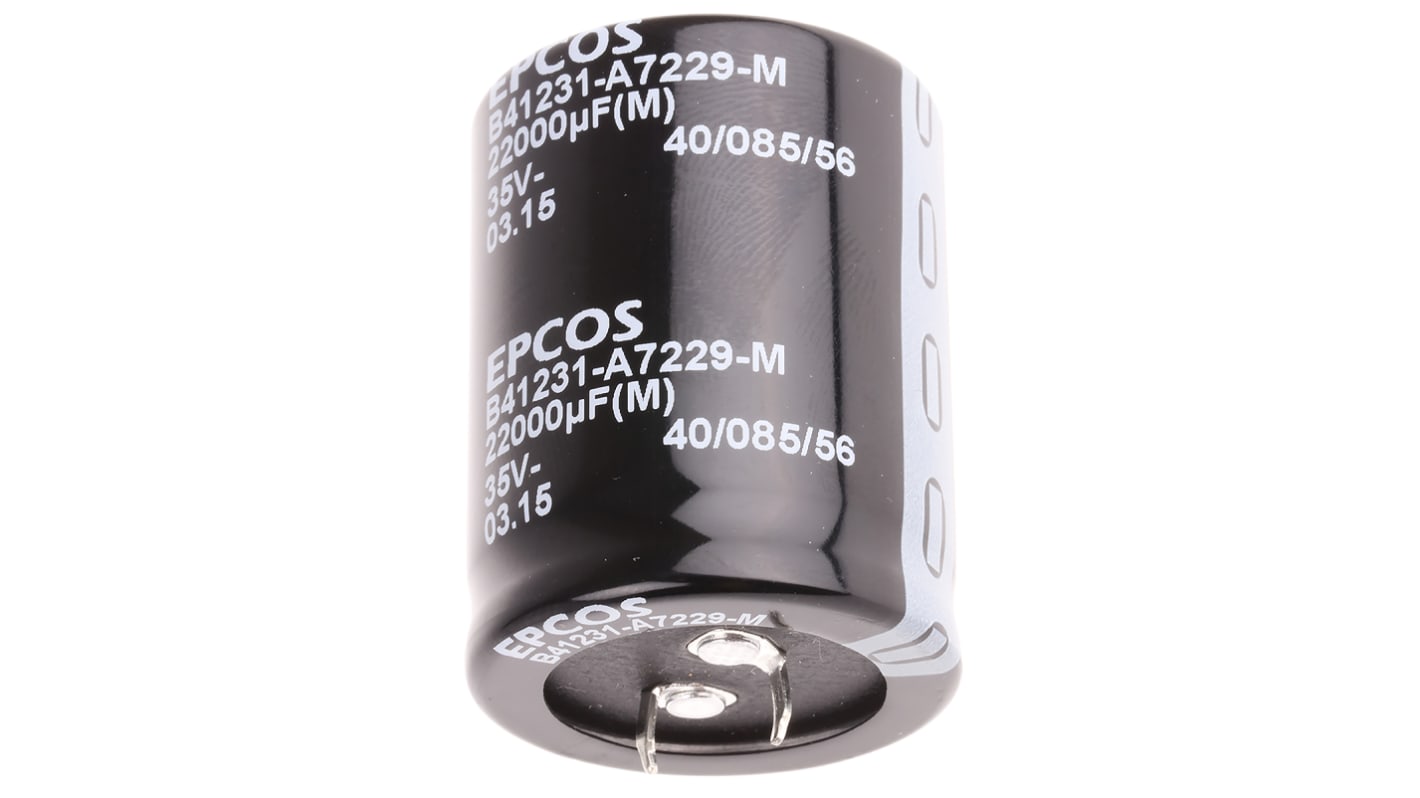

EPCOS 22000μF Aluminium Electrolytic Capacitor 35V dc, Snap-In - B41231A7229M000
- RS Stock No.:
- 173-3452
- Mfr. Part No.:
- B41231A7229M000
- Brand:
- EPCOS
60 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 60)
£3.59
(exc. VAT)
£4.31
(inc. VAT)
| Units | Per unit | Per Bag* |
| 60 + | £3.59 | £215.40 |
| *price indicative | ||
- RS Stock No.:
- 173-3452
- Mfr. Part No.:
- B41231A7229M000
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
B41231 Series
Aluminium housing, fully insulated
Snap-in, self-retaining solder terminals
Negative pole labelling on the housing cover
Negative pole not insulated from the housing
Uniform pitch 10mm
Operating temperature -40 to +85°C
Snap-in, self-retaining solder terminals
Negative pole labelling on the housing cover
Negative pole not insulated from the housing
Uniform pitch 10mm
Operating temperature -40 to +85°C
Specifications
Attribute | Value |
|---|---|
| Capacitance | 22000µF |
| Voltage | 35V dc |
| Mounting Type | Snap-In |
| Technology | Aluminium Electrolytic |
| Dimensions | 35 (Dia.) x 45mm |
| Height | 45mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 35mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 10mm |
| Lifetime | 2000h |
| Leakage Current | <=0.02 μA |
| Ripple Current | 7.07A |
| Tolerance | ±20% |
| Series | B41231 |
