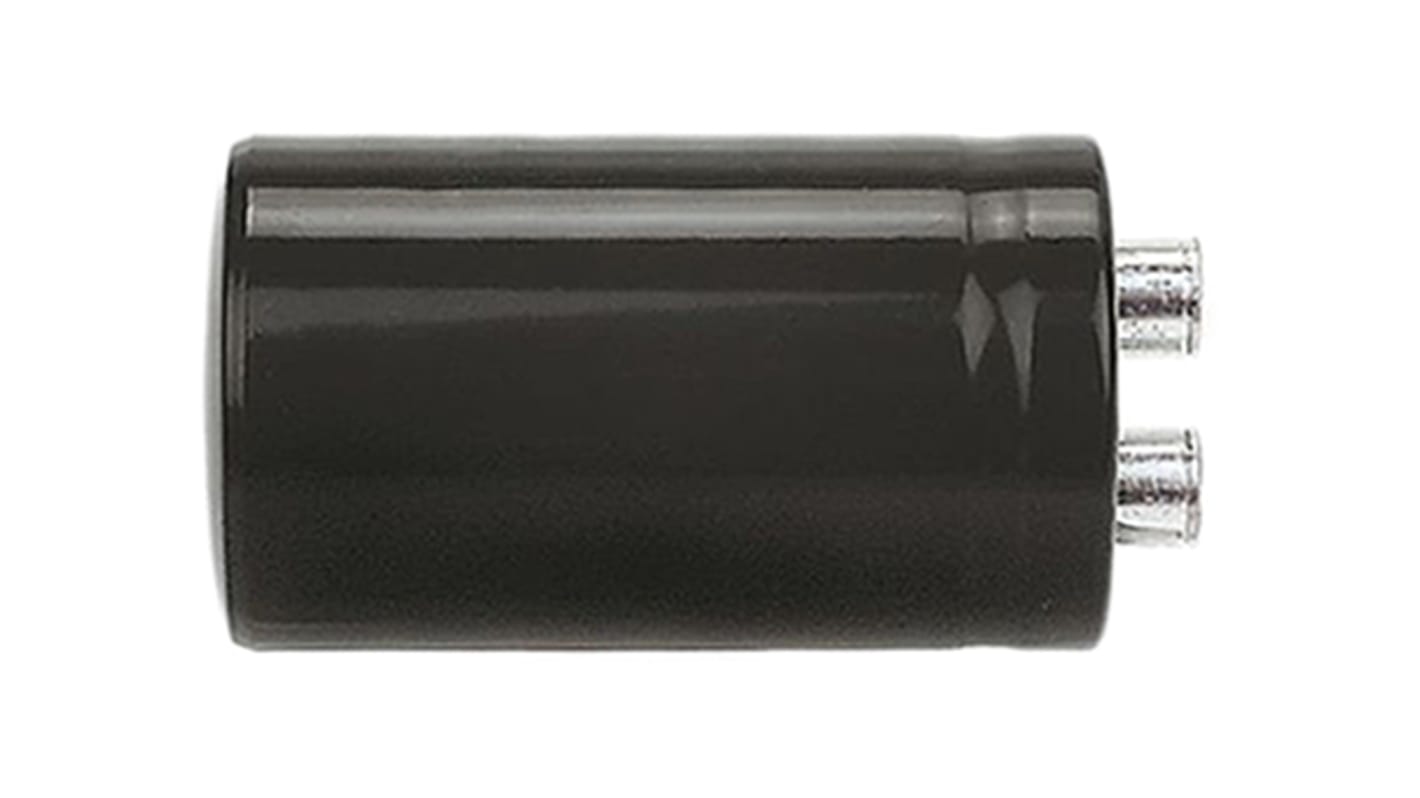

KEMET 3300μF Aluminium Electrolytic Capacitor 550V dc, Screw Terminal - ALS60A332NP550

View all Aluminium Capacitors

Subtotal (1 box of 12 units)*

£997.416

(exc. VAT)

£1,196.904

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
Per Box*
12 +£83.118£997.42

*price indicative

RS Stock No.:
172-6954
Mfr. Part No.:
ALS60A332NP550
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Capacitance

3300µF

Voltage

550V dc

Mounting Type

Screw Terminal

Technology

Aluminium Electrolytic

Dimensions

77 x 146mm

Height

146mm

Length

146mm

Minimum Operating Temperature

-40°C

Diameter

77mm

Maximum Operating Temperature

+85°C

Lead Pitch

31.8mm

Lifetime

20000 h @ +85 °C/550V dc/Ir, 40000 h @ +85 °C/550V dc

Ripple Current

14.6 A @100 Hz, 20.9 A @10 kHz

Equivalent Series Resistance

93mΩ

Tolerance

±20%

Leakage Current

6 mA

Polarised

Polar

Series

ALS60

COO (Country of Origin):
PT

Kemet ALS60 Series


KEMET's ALS60 Series of Screw Terminal Aluminium Electrolytic capacitors is designed for high voltage, high ripple current applications

Long life, up to 20,000 hours at +85°C (VR, IR applied)
High ripple current
Excellent surge voltage capability
Ideally suited for industrial and commercial applications demanding high reliability and long-life expectancy such as frequency converters, uninterruptible power supply (UPS) systems and switch mode power supplies (SMPS)
Typical applications for KEMET's ALS60 Series of capacitors include smoothing, energy storage, demanding power supplies, AC motor control, traction and welding

Standards

AEC-Q200 qualified


Clamp-fixing +85°C


Ideal for computer power supply applications or other applications that require long operational life
