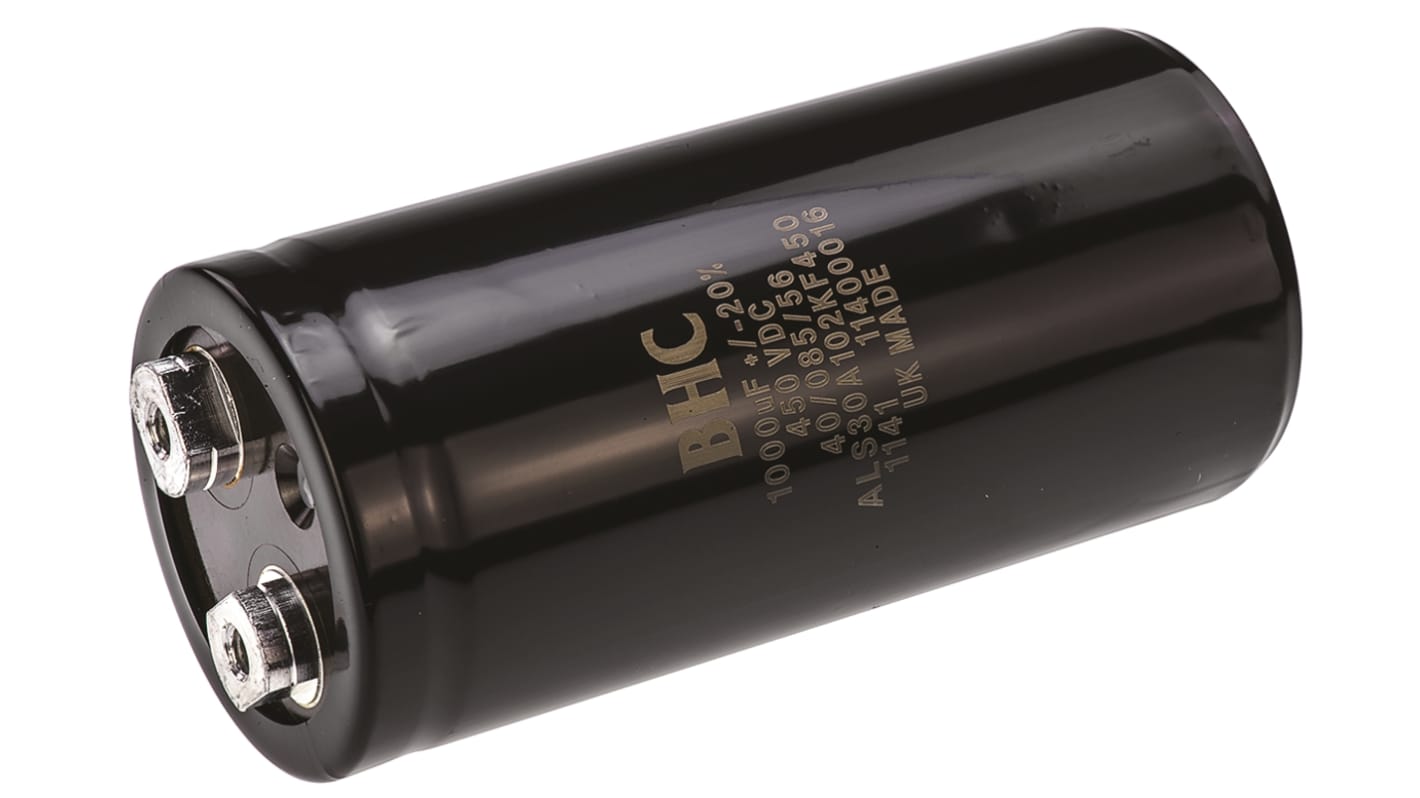

KEMET 1000μF Aluminium Electrolytic Capacitor 450V dc, Screw Terminal - ALS30A102KF450
- RS Stock No.:
- 172-6914
- Mfr. Part No.:
- ALS30A102KF450
- Brand:
- KEMET
Subtotal (1 bag of 24 units)*
£521.328
(exc. VAT)
£625.584
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 216 unit(s) ready to ship
- Plus 96 unit(s) shipping from 16 April 2026
- Plus 96 unit(s) shipping from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 24 + | £21.722 | £521.33 |
*price indicative
- RS Stock No.:
- 172-6914
- Mfr. Part No.:
- ALS30A102KF450
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 1000µF | |
| Voltage | 450V dc | |
| Mounting Type | Screw Terminal | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 51 (Dia.) x 105mm | |
| Height | 105mm | |
| Length | 105mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 51mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 18000 h @ +85 °C/450V dc/Ir, 36000 h @ +85 °C/450V dc | |
| Series | ALS30 | |
| Ripple Current | 6.5A | |
| Equivalent Series Resistance | 118mΩ | |
| Leakage Current | 2.7 mA | |
| Polarised | Polar | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 1000µF | ||
Voltage 450V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 51 (Dia.) x 105mm | ||
Height 105mm | ||
Length 105mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 51mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 18000 h @ +85 °C/450V dc/Ir, 36000 h @ +85 °C/450V dc | ||
Series ALS30 | ||
Ripple Current 6.5A | ||
Equivalent Series Resistance 118mΩ | ||
Leakage Current 2.7 mA | ||
Polarised Polar | ||
Tolerance ±20% | ||
ALS30/31 Series
KEMET ALS30/31 series screw terminal capacitors cover a wide range of case sizes and voltage ratings featuring high ripple currents and long-life performance. Typical applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring.
Features and Benefits:
Compact size
Long life expectancy up to 20000 h
High ripple current
Excellent surge voltage capability
Aluminium insert terminals with M5 threads
Long life expectancy up to 20000 h
High ripple current
Excellent surge voltage capability
Aluminium insert terminals with M5 threads
Product Application Information
These capacitors are suitable for industrial and commercial applications demanding high reliability and long-life expectancy. For example, frequency converters, uninterruptible power supplies and switch mode power supplies.
Note
Screws and washers are not supplied.
Standards
AEC-Q200
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
