- RS Stock No.:
- 167-1413
- Mfr. Part No.:
- LGG2W101MELZ25
- Brand:
- Nichicon
Available to back order for despatch 10/12/2024
Added
Price Each (In a Bag of 250)
£2.24
(exc. VAT)
£2.69
(inc. VAT)
Units | Per unit | Per Bag* |
250 + | £2.24 | £560.00 |
*price indicative |
- RS Stock No.:
- 167-1413
- Mfr. Part No.:
- LGG2W101MELZ25
- Brand:
- Nichicon
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details

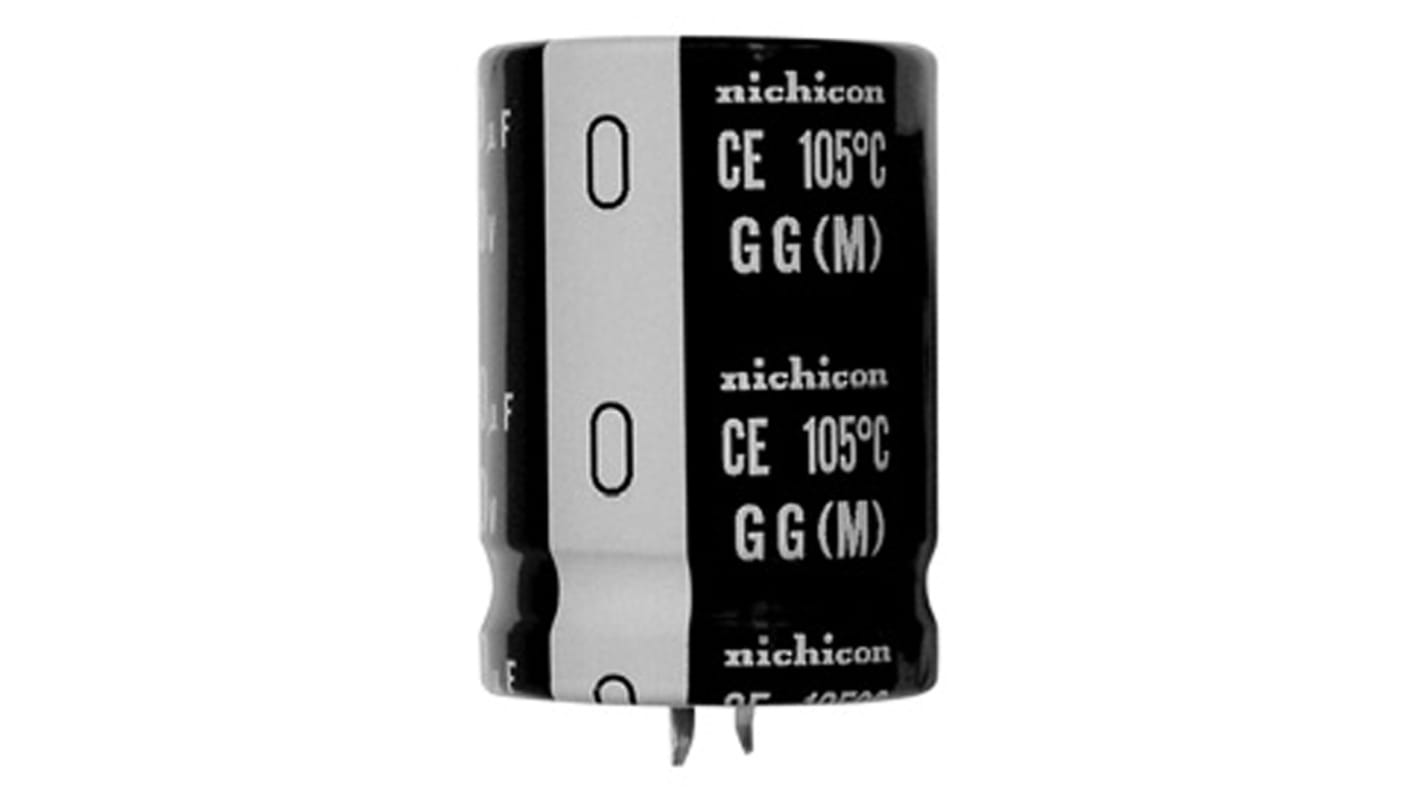

Nichicon Ultra-Small Snap-In, GG Series
Nichicon GG Series Snap-In Aluminium Electrolytic Capacitors can withstand 2000 hours of rated ripple current application The snap-in terminal GG Series Aluminium Electrolytic Capacitors from Nichicon offer a large capacitance range with voltages ranging from 160 to 450V
These ultra-small–sized capacitors are suited for equipment down sizing
These ultra-small–sized capacitors are suited for equipment down sizing
Snap-In terminals
Endurance rating ripple current 2000 hours guaranteed
PET sleeve (non PVC)
Lead-free terminal plating
Endurance rating ripple current 2000 hours guaranteed
PET sleeve (non PVC)
Lead-free terminal plating
Specifications
Attribute | Value |
---|---|
Capacitance | 100µF |
Voltage | 450V dc |
Mounting Type | Snap-In |
Technology | Aluminium Electrolytic |
Dimensions | 22 (Dia.) x 25mm |
Height | 25mm |
Minimum Operating Temperature | -25°C |
Diameter | 22mm |
Maximum Operating Temperature | +105°C |
Lifetime | 2000h |
Lead Pitch | 10mm |
Tolerance | ±20% |
Ripple Current | 640mA |
Leakage Current | 0.63 mA |
Series | GG |
- RS Stock No.:
- 167-1413
- Mfr. Part No.:
- LGG2W101MELZ25
- Brand:
- Nichicon
