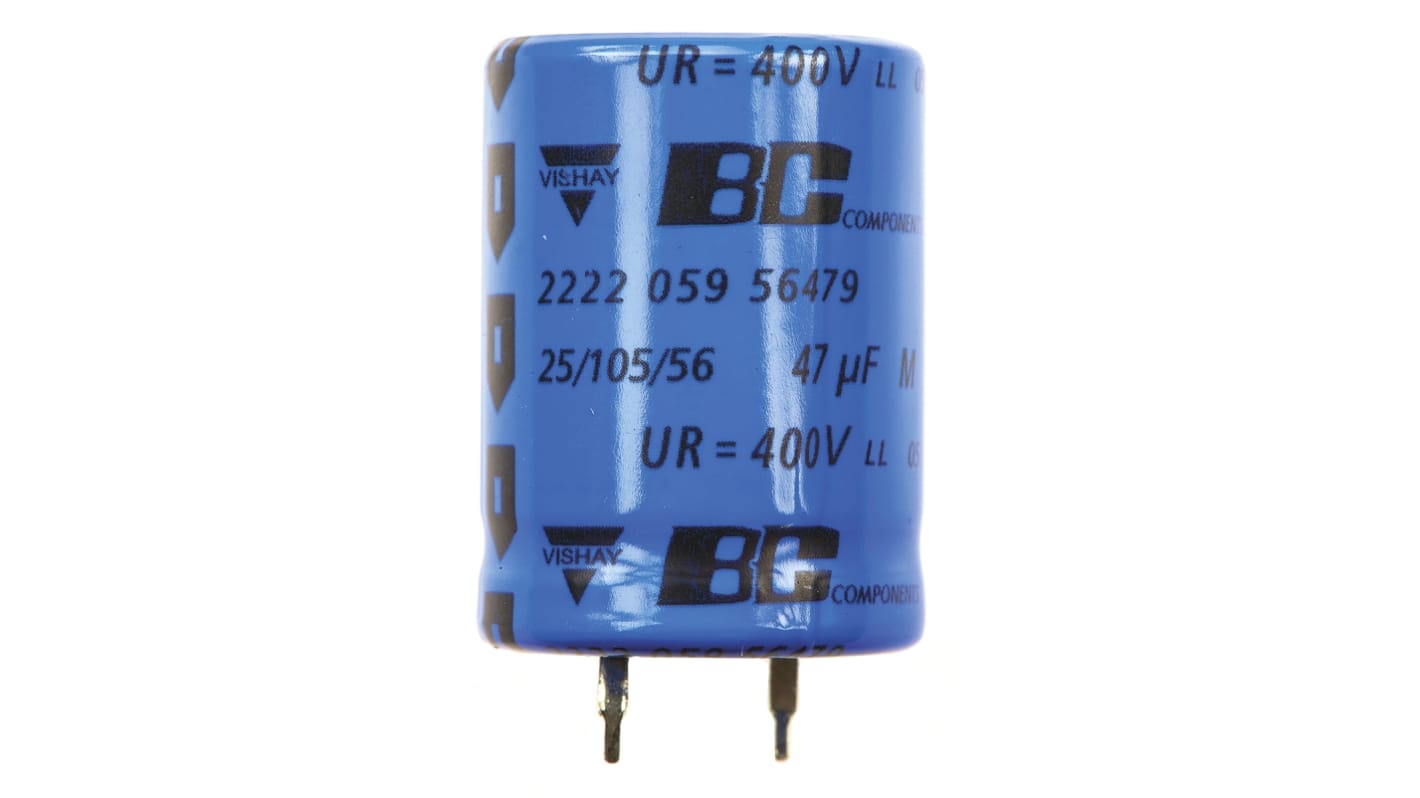

Vishay 47 μF Capacitor 400V dc, Snap-in - MAL205956479E3 Solder
- RS Stock No.:
- 166-8095
- Mfr. Part No.:
- MAL205956479E3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£7.36
(exc. VAT)
£8.83
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £7.36 |
| 10 - 24 | £6.99 |
| 25 - 49 | £6.48 |
| 50 - 99 | £5.88 |
| 100 + | £5.53 |
*price indicative
- RS Stock No.:
- 166-8095
- Mfr. Part No.:
- MAL205956479E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Capacitor | |
| Capacitance | 47μF | |
| Voltage | 400V dc | |
| Construction | Cylindrical Can | |
| Mount Type | Snap-in | |
| Packaging | Tape & Reel | |
| Polarity | Polar | |
| Height | 30mm | |
| Length | 30mm | |
| Minimum Operating Temperature | -25°C | |
| Diameter | 22mm | |
| Capacitor Ripple Current | 300mA | |
| Pin Count | 2 | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 5000 h | |
| Standards/Approvals | EU, IEC | |
| Width | 22mm | |
| Lead Pitch | 10mm | |
| Tolerance | ±20 % | |
| Leakage Current | 117μA | |
| Automotive Standard | No | |
| Series | 59 | |
| Equivalent Series Resistance ESR | 4.26Ω | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Capacitor | ||
Capacitance 47μF | ||
Voltage 400V dc | ||
Construction Cylindrical Can | ||
Mount Type Snap-in | ||
Packaging Tape & Reel | ||
Polarity Polar | ||
Height 30mm | ||
Length 30mm | ||
Minimum Operating Temperature -25°C | ||
Diameter 22mm | ||
Capacitor Ripple Current 300mA | ||
Pin Count 2 | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Lifetime 5000 h | ||
Standards/Approvals EU, IEC | ||
Width 22mm | ||
Lead Pitch 10mm | ||
Tolerance ±20 % | ||
Leakage Current 117μA | ||
Automotive Standard No | ||
Series 59 | ||
Equivalent Series Resistance ESR 4.26Ω | ||
059 Series
Aluminium Capacitors Power Long Life Snap-In
Long useful life: 10 000 h at +105°C
High ripple current capability
Keyed polarity version available
Polarized aluminium electrolytic capacitors, non-solid electrolyte
Large types, minimised dimensions, cylindrical aluminium case, insulated with a blue sleeve
Applications include: Computer, telecommunication and industrial systems; Smoothing and filtering applications;
Standard and Switched Mode Power Supplies; Energy storage in pulse systems
Approvals
CECC, IEC 384-4
