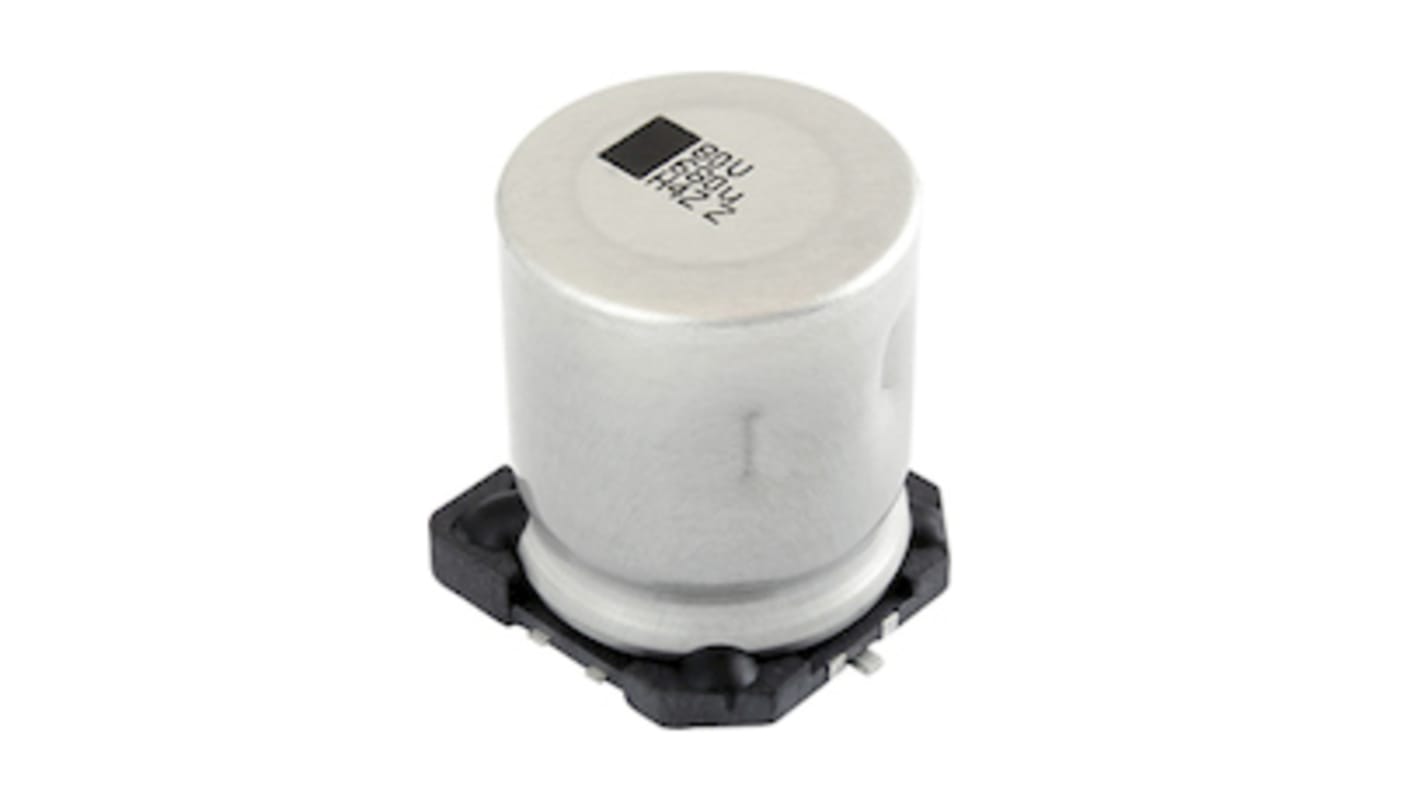

Vishay 470μF Aluminium Electrolytic Capacitor 63V dc, Surface Mount - MAL226099807E3
- RS Stock No.:
- 159-6113
- Mfr. Part No.:
- MAL226099807E3
- Brand:
- Vishay
200 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 100)
£2.64
(exc. VAT)
£3.17
(inc. VAT)
| Units | Per unit | Per Reel* |
| 100 - 100 | £2.64 | £264.00 |
| 200 - 400 | £2.508 | £250.80 |
| 500 + | £2.376 | £237.60 |
| *price indicative | ||
- RS Stock No.:
- 159-6113
- Mfr. Part No.:
- MAL226099807E3
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details
Aluminium Electrolytic Capacitors SMD (Chip), High Temperature, Low Impedance High Vibration Capability
Useful life: up to 2000 h at 150 °C
High reliability
Low ESR
Polarized aluminum electrolytic capacitors, non-solid electrolyte, self healing
SMD-version with base plate, lead (Pb)-free reflow solderable
Charge and discharge proof, no peak current limitation
High temperature reflow soldering according to JEDEC® J-STD-020
High temperature proof
Vibration proof, 6-pin version up to 30 g
AEC-Q200 qualified
Material categorization: for definitions of compliance
APPLICATIONS
SMD technology, for high temperature reflow soldering
High temperature environment, high peak load
Automotive, industrial
Smoothing, filtering, buffering
High reliability
Low ESR
Polarized aluminum electrolytic capacitors, non-solid electrolyte, self healing
SMD-version with base plate, lead (Pb)-free reflow solderable
Charge and discharge proof, no peak current limitation
High temperature reflow soldering according to JEDEC® J-STD-020
High temperature proof
Vibration proof, 6-pin version up to 30 g
AEC-Q200 qualified
Material categorization: for definitions of compliance
APPLICATIONS
SMD technology, for high temperature reflow soldering
High temperature environment, high peak load
Automotive, industrial
Smoothing, filtering, buffering
Specifications
Attribute | Value |
|---|---|
| Capacitance | 470µF |
| Voltage | 63V dc |
| Mounting Type | Surface Mount |
| Technology | Aluminium Electrolytic |
| Dimensions | 18.6 x 16.6 x 22mm |
| Height | 22mm |
| Length | 18.6mm |
| Depth | 16.6mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 16mm |
| Maximum Operating Temperature | +150°C |
| Lifetime | 2000h |
| Lead Pitch | 6.5mm |
| Ripple Current | 0.6A |
| Tolerance | ±20% |
| Leakage Current | 296 μA |
| Polarised | Polar |
| Series | CLA-V |
| Automotive Standard | AEC-Q200 |
| Dissipation Factor | 0.1% |
