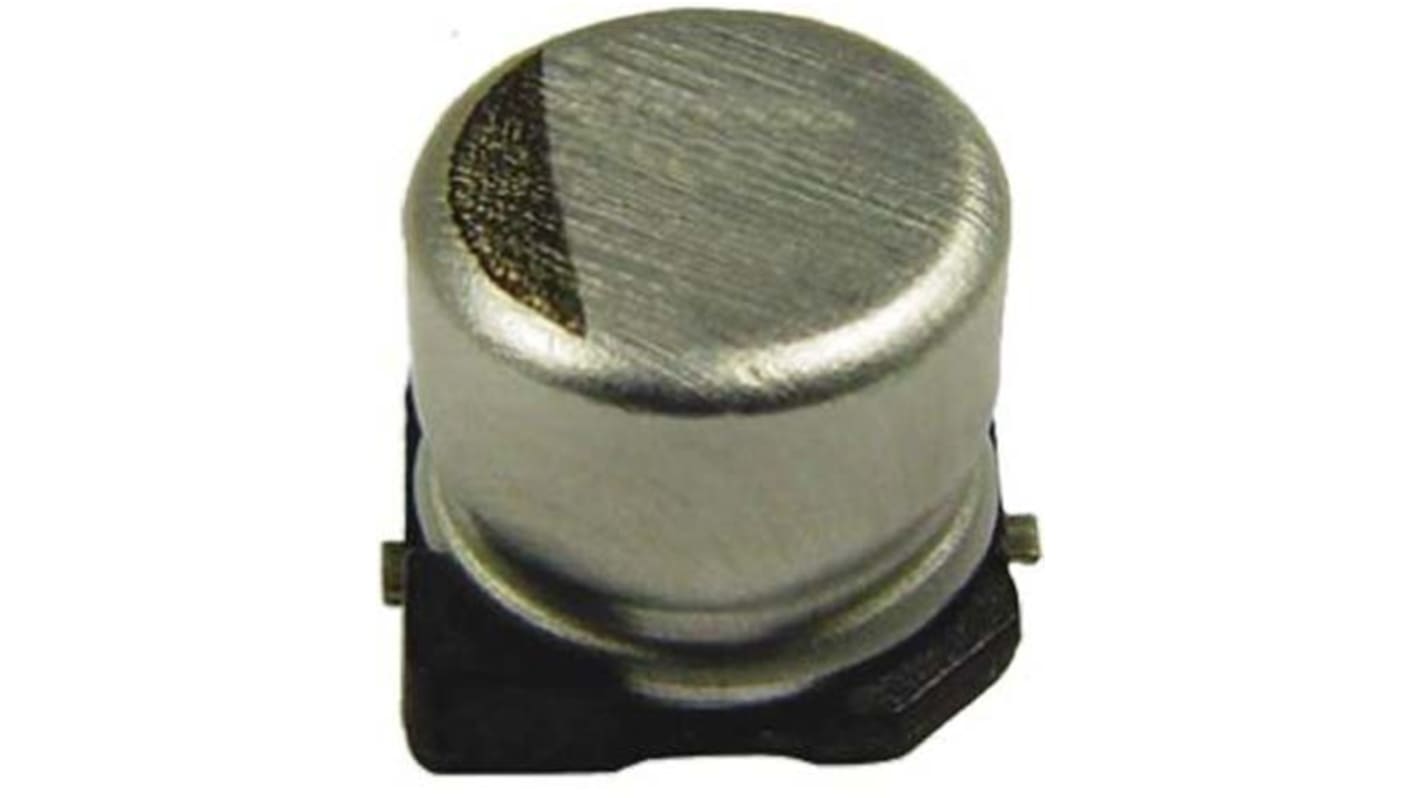

Panasonic 680μF Aluminium Electrolytic Capacitor 35V dc, Surface Mount - EEEFT1V681UP
- RS Stock No.:
- 145-8543
- Mfr. Part No.:
- EEEFT1V681UP
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.61
(exc. VAT)
£9.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 450 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.761 | £7.61 |
| 100 - 240 | £0.716 | £7.16 |
| 250 - 490 | £0.669 | £6.69 |
| 500 - 990 | £0.624 | £6.24 |
| 1000 + | £0.563 | £5.63 |
*price indicative
- RS Stock No.:
- 145-8543
- Mfr. Part No.:
- EEEFT1V681UP
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 680µF | |
| Voltage | 35V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 10 (Dia.) x 10.2mm | |
| Height | 10.2mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 4.6mm | |
| Series | FT SMD | |
| Equivalent Series Resistance | 60mΩ | |
| Leakage Current | ≤0.01 CV μA | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Automotive Standard | AEC-Q200 | |
| Ripple Current | 1190mArms | |
| Dissipation Factor | 0.12% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 680µF | ||
Voltage 35V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 10 (Dia.) x 10.2mm | ||
Height 10.2mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 4.6mm | ||
Series FT SMD | ||
Equivalent Series Resistance 60mΩ | ||
Leakage Current ≤0.01 CV μA | ||
Polarised Polar | ||
Tolerance ±20% | ||
Automotive Standard AEC-Q200 | ||
Ripple Current 1190mArms | ||
Dissipation Factor 0.12% | ||
