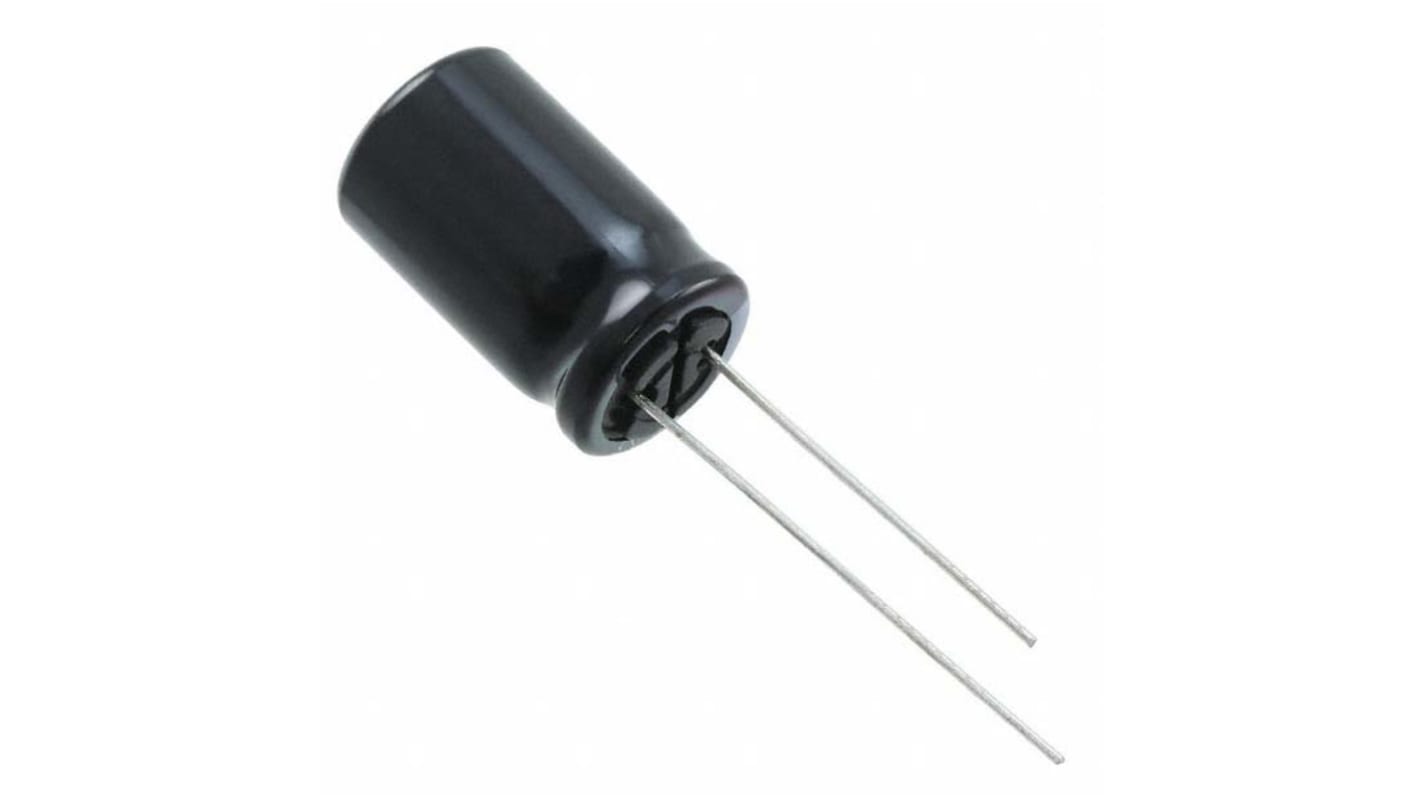

Panasonic 2400μF Aluminium Electrolytic Capacitor 16V dc, Radial, Through Hole - EEUFS1C242
- RS Stock No.:
- 145-8522
- Mfr. Part No.:
- EEUFS1C242
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 10 units)*
£6.04
(exc. VAT)
£7.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.604 | £6.04 |
| 50 - 90 | £0.572 | £5.72 |
| 100 + | £0.448 | £4.48 |
*price indicative
- RS Stock No.:
- 145-8522
- Mfr. Part No.:
- EEUFS1C242
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 2400µF | |
| Voltage | 16V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 12.5 (Dia.) x 20mm | |
| Height | 20mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 12.5mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 10000h | |
| Lead Pitch | 5mm | |
| Tolerance | ±20% | |
| Polarised | Polar | |
| Leakage Current | ≤0.01 CV μA | |
| Series | FS | |
| Ripple Current | 2600mArms | |
| Dissipation Factor | 0.16% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 2400µF | ||
Voltage 16V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 12.5 (Dia.) x 20mm | ||
Height 20mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 12.5mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 10000h | ||
Lead Pitch 5mm | ||
Tolerance ±20% | ||
Polarised Polar | ||
Leakage Current ≤0.01 CV μA | ||
Series FS | ||
Ripple Current 2600mArms | ||
Dissipation Factor 0.16% | ||
