Wurth Elektronik 100μF Aluminium Electrolytic Capacitor 450V dc, Snap-In - 861011483004
- RS Stock No.:
- 124-7440
- Mfr. Part No.:
- 861011483004
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tray of 50 units)*
£158.15
(exc. VAT)
£189.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,950 unit(s) shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 50 - 50 | £3.163 | £158.15 |
| 100 - 200 | £3.036 | £151.80 |
| 250 - 450 | £2.72 | £136.00 |
| 500 - 950 | £2.467 | £123.35 |
| 1000 + | £2.15 | £107.50 |
*price indicative
- RS Stock No.:
- 124-7440
- Mfr. Part No.:
- 861011483004
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Capacitance | 100µF | |
| Voltage | 450V dc | |
| Mounting Type | Snap-In | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 22 (Dia.) x 36mm | |
| Depth | 36mm | |
| Minimum Operating Temperature | -25°C | |
| Diameter | 22mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 2000h | |
| Lead Pitch | 10mm | |
| Tolerance | ±20% | |
| Polarised | Polar | |
| Leakage Current | 900 μA | |
| Ripple Current | 1.03A | |
| Series | WCAP-AIG8 | |
| Dissipation Factor | 20% | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Capacitance 100µF | ||
Voltage 450V dc | ||
Mounting Type Snap-In | ||
Technology Aluminium Electrolytic | ||
Dimensions 22 (Dia.) x 36mm | ||
Depth 36mm | ||
Minimum Operating Temperature -25°C | ||
Diameter 22mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 2000h | ||
Lead Pitch 10mm | ||
Tolerance ±20% | ||
Polarised Polar | ||
Leakage Current 900 μA | ||
Ripple Current 1.03A | ||
Series WCAP-AIG8 | ||
Dissipation Factor 20% | ||
- COO (Country of Origin):
- CN

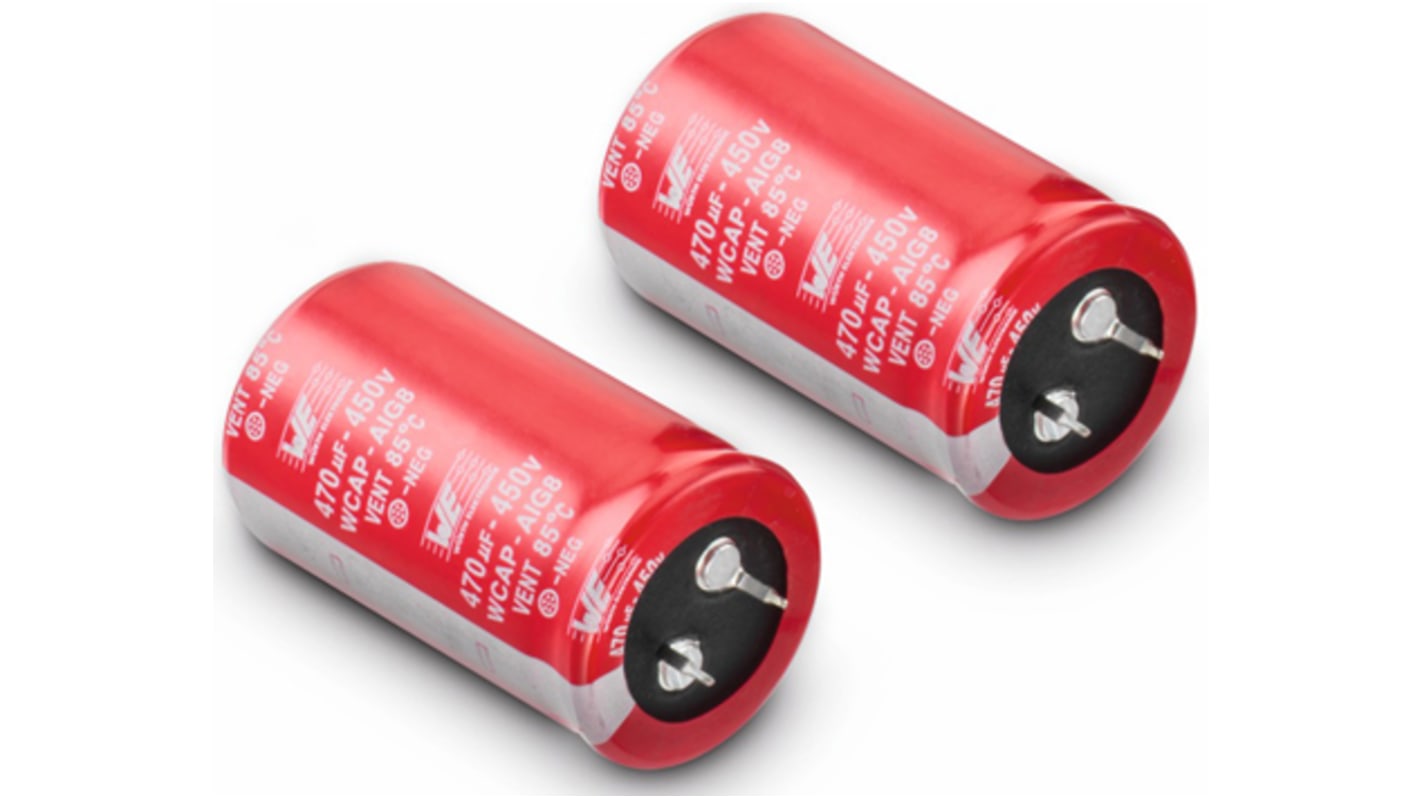

Wurth Elektronik WCAP-AIG8 Series Aluminium Electrolytic Capacitors
Wurth Elektronik WCAP- AIG8 Series aluminium electrolytic capacitors feature an operating temperature of up to +85°C. This general purpose capacitor family WCAP- AIG8 Series offer a capacitance value from 47uF to 180uF.
