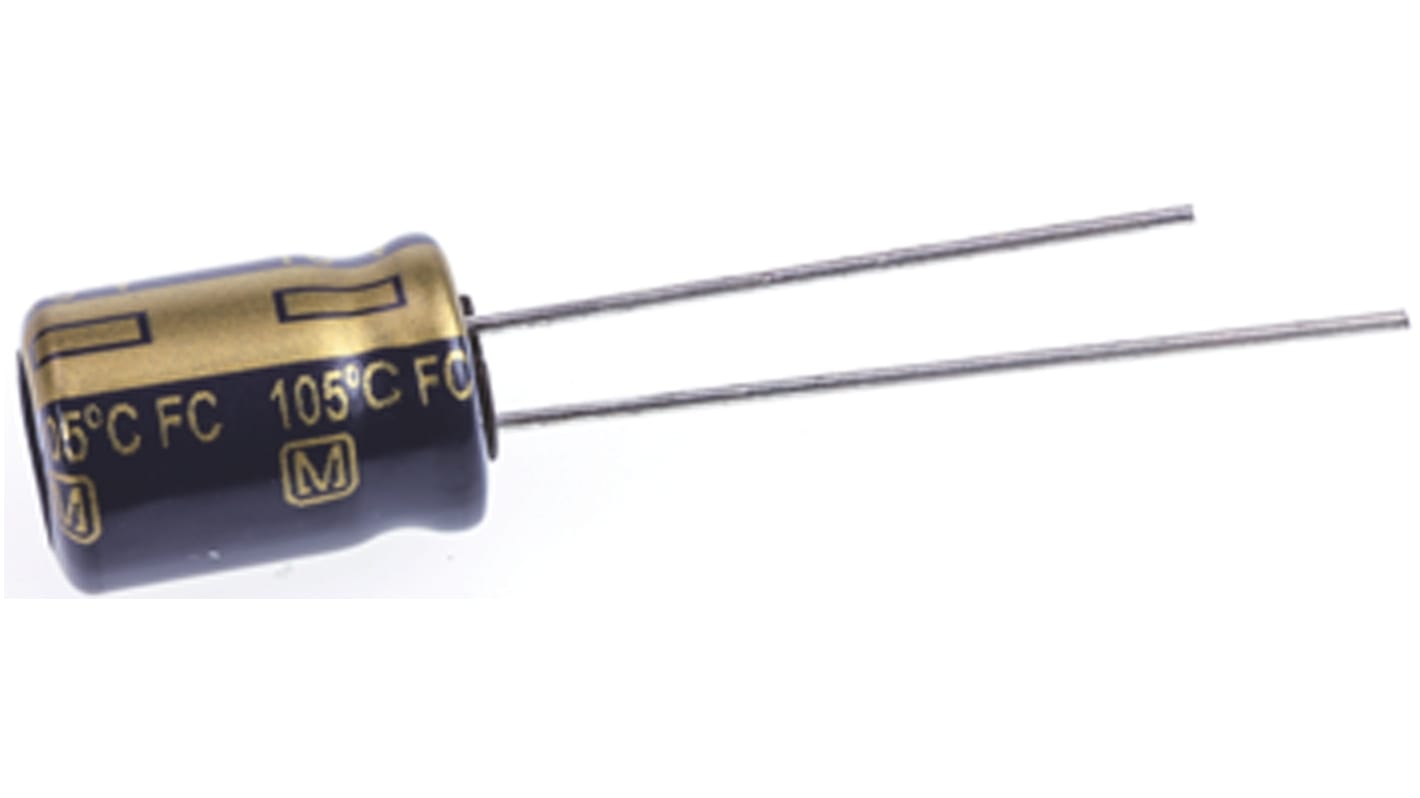

Panasonic 470μF Aluminium Electrolytic Capacitor 10V dc, Radial, Through Hole - EEUFC1A471
- RS Stock No.:
- 107-8356
- Mfr. Part No.:
- EEUFC1A471
- Brand:
- Panasonic
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Bag of 200)
£0.131
(exc. VAT)
£0.157
(inc. VAT)
| Units | Per unit | Per Bag* |
| 200 + | £0.131 | £26.20 |
| *price indicative | ||
- RS Stock No.:
- 107-8356
- Mfr. Part No.:
- EEUFC1A471
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
Product Details
FC Series 330μF - 680μF
Panasonic FC Series Type A electrolytic capacitors offer a high endurance, low impedance solution. These aluminium capacitors feature endurance between 1000 and 5000 hours.
AEC-Q200 qualified
Radial lead type
Low ESR
Compact size
High reliability
Low impedance
High ripple current
Radial lead type
Low ESR
Compact size
High reliability
Low impedance
High ripple current
Applications
Panasonic FC Type A electrolytic capacitors are AEC-Q200 qualified and suitable for automotive applications. High reliability also makes these electrolytic capacitors ideal for application in industrial instruments.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 470µF |
| Voltage | 10V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 8 (Dia.) x 11.5mm |
| Height | 11.5mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 3.5mm |
| Ripple Current | 555mA |
| Leakage Current | 3 μA |
| Polarised | Polar |
| Equivalent Series Resistance | 117mΩ |
| Series | FC |
| Tolerance | ±20% |
