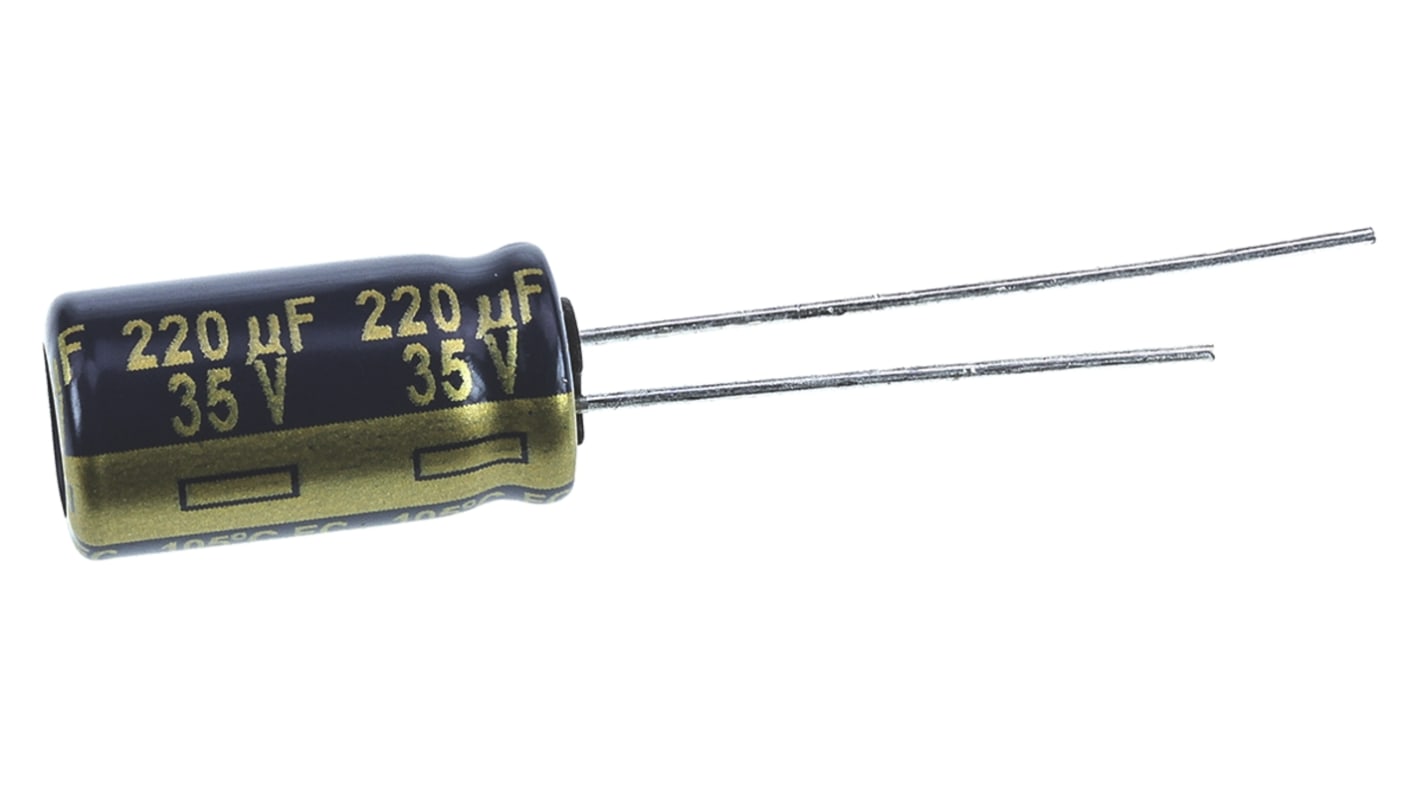

Panasonic 220μF Aluminium Electrolytic Capacitor 35V dc, Radial, Through Hole - EEUFC1V221L
- RS Stock No.:
- 571-101
- Mfr. Part No.:
- EEUFC1V221L
- Brand:
- Panasonic
Save 62% when you buy 1000 units
Subtotal (1 pack of 5 units)*
£2.20
(exc. VAT)
£2.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,365 unit(s) ready to ship
- Plus 1,240 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £0.44 | £2.20 |
50 - 245 | £0.302 | £1.51 |
250 - 495 | £0.198 | £0.99 |
500 - 995 | £0.17 | £0.85 |
1000 + | £0.164 | £0.82 |
*price indicative
- RS Stock No.:
- 571-101
- Mfr. Part No.:
- EEUFC1V221L
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Capacitance | 220µF | |
Voltage | 35V dc | |
Mounting Type | Radial, Through Hole | |
Technology | Aluminium Electrolytic | |
Dimensions | 8 (Dia.) x 15mm | |
Height | 15mm | |
Minimum Operating Temperature | -55°C | |
Diameter | 8mm | |
Maximum Operating Temperature | +105°C | |
Lifetime | 2000h | |
Lead Pitch | 3.5mm | |
Polarised | Polar | |
Tolerance | ±20% | |
Equivalent Series Resistance | 85mΩ | |
Leakage Current | 3 μA | |
Ripple Current | 730mA | |
Series | FC Radial | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Capacitance 220µF | ||
Voltage 35V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 8 (Dia.) x 15mm | ||
Height 15mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 8mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 3.5mm | ||
Polarised Polar | ||
Tolerance ±20% | ||
Equivalent Series Resistance 85mΩ | ||
Leakage Current 3 μA | ||
Ripple Current 730mA | ||
Series FC Radial | ||
FC Series 120μF - 270μF
Panasonic FC Series Type A electrolytic capacitors offer a high endurance, low impedance solution. These aluminium capacitors feature endurance between 1000 and 5000 hours.
AEC-Q200 qualified
Radial lead type
Low ESR
Compact size
High reliability
Low impedance
High ripple current
Radial lead type
Low ESR
Compact size
High reliability
Low impedance
High ripple current
Applications
Panasonic FC Type A electrolytic capacitors are AEC-Q200 qualified and suitable for automotive applications. High reliability also makes these electrolytic capacitors ideal for application in industrial instruments.
