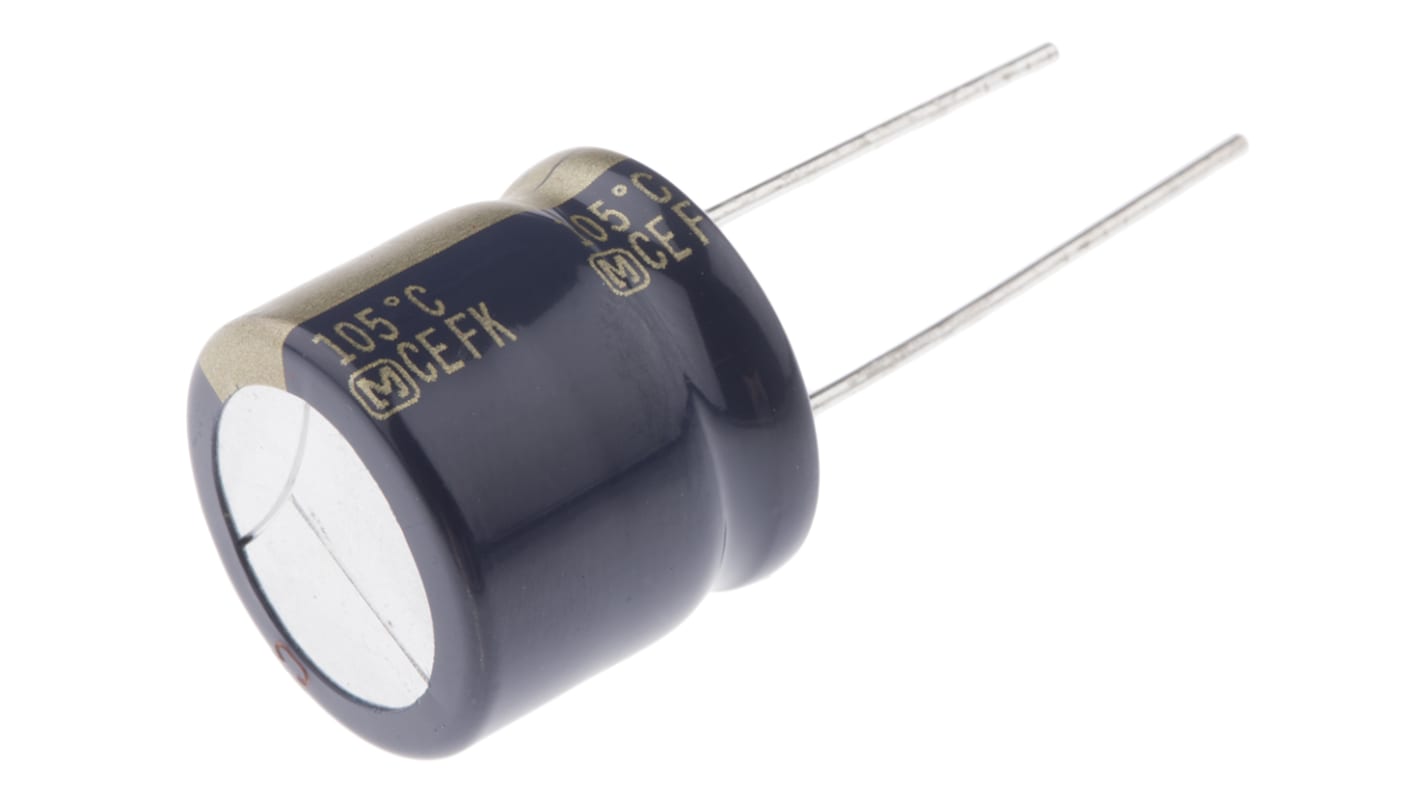

Panasonic 3300μF Aluminium Electrolytic Capacitor 6.3V dc, Radial, Through Hole - EEUFK0J332S
- RS Stock No.:
- 571-060
- Mfr. Part No.:
- EEUFK0J332S
- Brand:
- Panasonic
Subtotal (1 pack of 5 units)*
£5.58
(exc. VAT)
£6.695
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 585 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
| Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.116 | £5.58 |
*price indicative
- RS Stock No.:
- 571-060
- Mfr. Part No.:
- EEUFK0J332S
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 3300µF | |
| Voltage | 6.3V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 16 (Dia.) x 15mm | |
| Height | 15mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 16mm | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 7.5mm | |
| Lifetime | 5000h | |
| Series | FK Radial | |
| Tolerance | ±20% | |
| Polarised | Polar | |
| Ripple Current | 1.8A | |
| Automotive Standard | AEC-Q200 | |
| Select all | ||
|---|---|---|
| Brand Panasonic | ||
| Capacitance 3300µF | ||
| Voltage 6.3V dc | ||
| Mounting Type Radial, Through Hole | ||
| Technology Aluminium Electrolytic | ||
| Dimensions 16 (Dia.) x 15mm | ||
| Height 15mm | ||
| Minimum Operating Temperature -55°C | ||
| Diameter 16mm | ||
| Maximum Operating Temperature +105°C | ||
| Lead Pitch 7.5mm | ||
| Lifetime 5000h | ||
| Series FK Radial | ||
| Tolerance ±20% | ||
| Polarised Polar | ||
| Ripple Current 1.8A | ||
| Automotive Standard AEC-Q200 | ||
FK Series 6.3 V to 16 V
Panasonic FK Series Type A electrolytic capacitors offer low impedance (30% to 40% less than the Panasonic FC series) and high endurance.  At +105°C, the endurance is 3000 hours to 5000 hours (depending on case size).
AEC-Q200 qualified (some deviations apply)
Miniaturised solution (30% to 40% less than the FC series)
Low ESR
High reliability
Long life
High ripple current
Miniaturised solution (30% to 40% less than the FC series)
Low ESR
High reliability
Long life
High ripple current
Applications
Panasonic FK Series Type A electrolytic capacitors are recommended for use in industrial instruments due to their high reliability.
