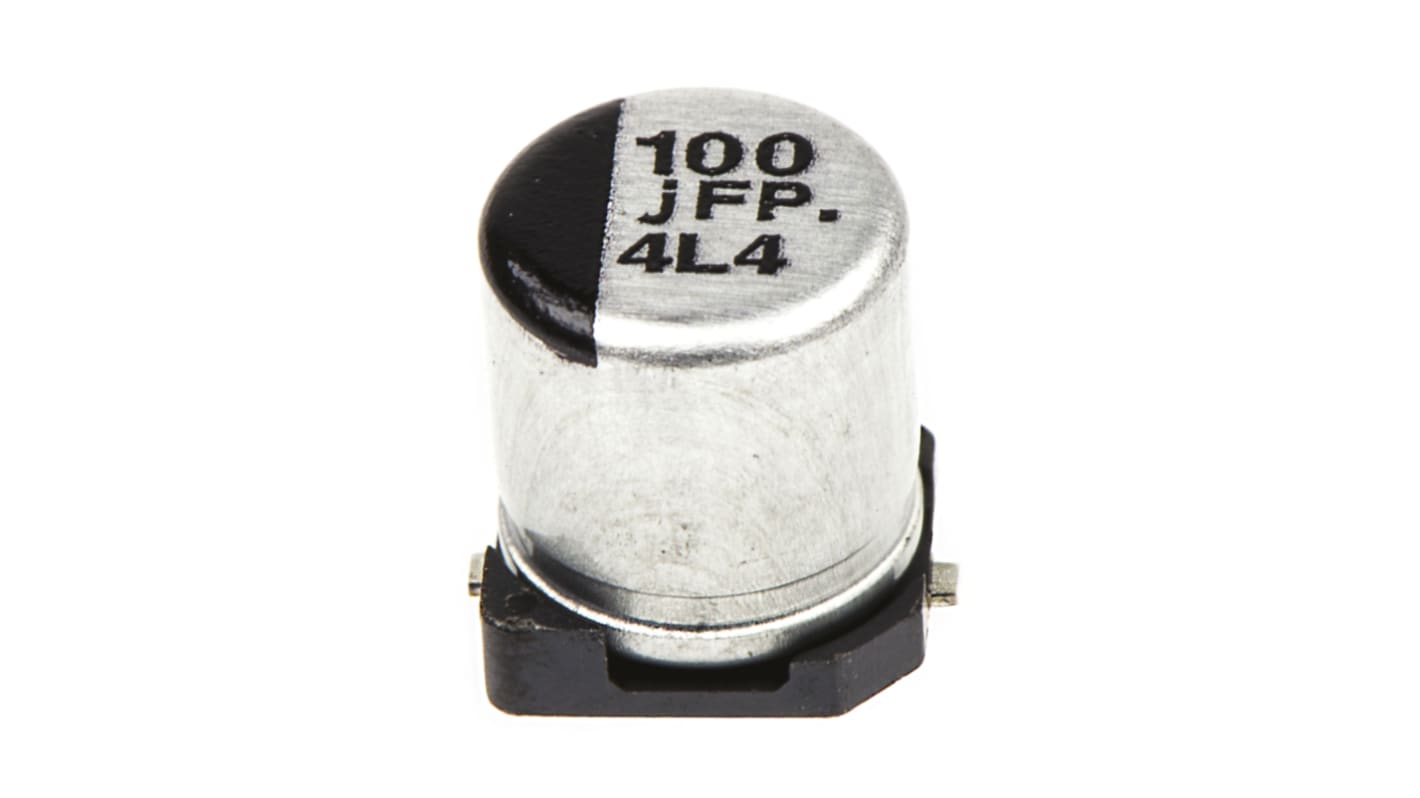

Panasonic 100μF Aluminium Electrolytic Capacitor 6.3V dc, Surface Mount - EEEFPJ101UAR
- RS Stock No.:
- 568-874P
- Mfr. Part No.:
- EEEFPJ101UAR
- Brand:
- Panasonic
Subtotal 5 units (supplied as a tape)*
£1.73
(exc. VAT)
£2.075
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 955 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 5 + | £0.346 |
*price indicative
- RS Stock No.:
- 568-874P
- Mfr. Part No.:
- EEEFPJ101UAR
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 100µF | |
| Voltage | 6.3V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 5 (Dia.) x 5.8mm | |
| Height | 5.8mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 5mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Equivalent Series Resistance | 360mΩ | |
| Series | FP SMD | |
| Leakage Current | 3 μA | |
| Ripple Current | 240mA | |
| Polarised | Polar | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 100µF | ||
Voltage 6.3V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 5 (Dia.) x 5.8mm | ||
Height 5.8mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 5mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Equivalent Series Resistance 360mΩ | ||
Series FP SMD | ||
Leakage Current 3 μA | ||
Ripple Current 240mA | ||
Polarised Polar | ||
Tolerance ±20% | ||
FP Series reels
Full reels of surface mount V type Electrolytic capacitors able to withstand high reflow temperatures for extended periods
