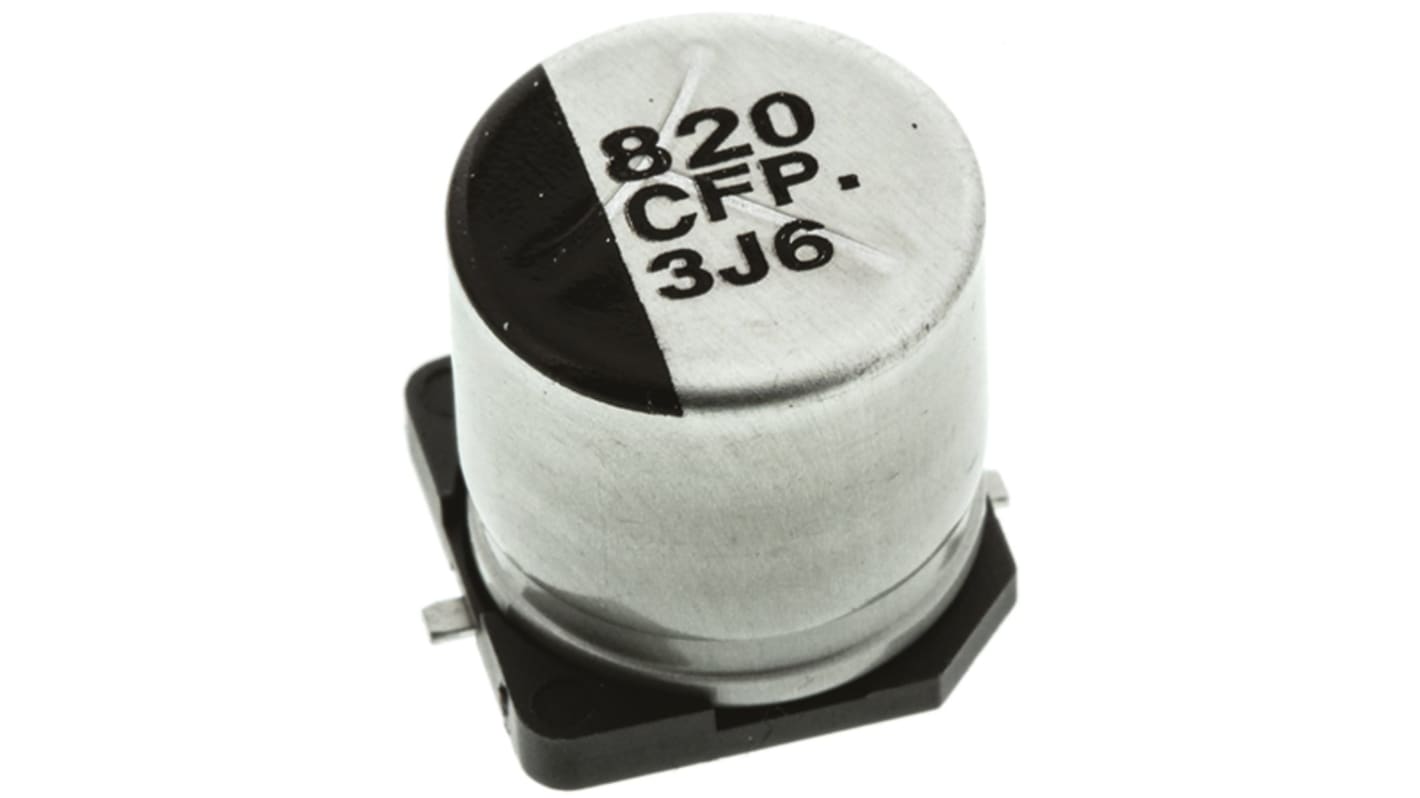

Panasonic 820μF Aluminium Electrolytic Capacitor 16V dc, Surface Mount - EEEFPC821UAP
- RS Stock No.:
- 568-795
- Mfr. Part No.:
- EEEFPC821UAP
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.12
(exc. VAT)
£4.945
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.824 | £4.12 |
| 50 - 120 | £0.748 | £3.74 |
| 125 - 245 | £0.668 | £3.34 |
| 250 - 495 | £0.588 | £2.94 |
| 500 + | £0.512 | £2.56 |
*price indicative
- RS Stock No.:
- 568-795
- Mfr. Part No.:
- EEEFPC821UAP
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 820µF | |
| Voltage | 16V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 10 (Dia.) x 10.2mm | |
| Height | 10.2mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Series | FP SMD | |
| Leakage Current | 3 μA | |
| Ripple Current | 850mA | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Equivalent Series Resistance | 80mΩ | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 820µF | ||
Voltage 16V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 10 (Dia.) x 10.2mm | ||
Height 10.2mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Series FP SMD | ||
Leakage Current 3 μA | ||
Ripple Current 850mA | ||
Polarised Polar | ||
Tolerance ±20% | ||
Equivalent Series Resistance 80mΩ | ||
FP Series reels
Full reels of surface mount V type Electrolytic capacitors able to withstand high reflow temperatures for extended periods
