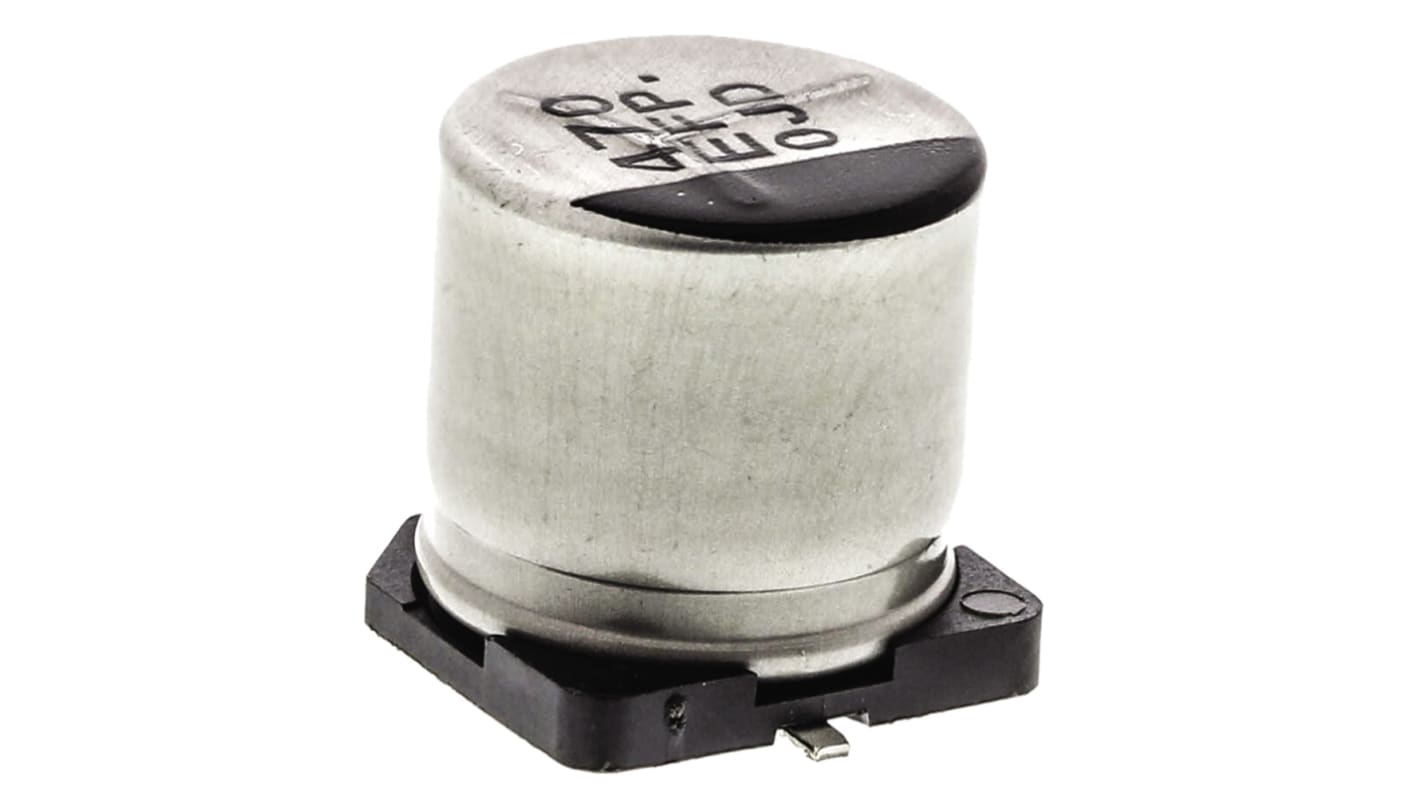

Panasonic 470μF Aluminium Electrolytic Capacitor 25V dc, Surface Mount - EEEFP1E471AP
- RS Stock No.:
- 568-745
- Mfr. Part No.:
- EEEFP1E471AP
- Brand:
- Panasonic
150 In stock - FREE next working day delivery available
15 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£0.752
(exc. VAT)
£0.902
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £0.752 | £3.76 |
| 50 - 95 | £0.706 | £3.53 |
| 100 - 245 | £0.662 | £3.31 |
| 250 - 495 | £0.616 | £3.08 |
| 500 + | £0.56 | £2.80 |
| *price indicative | ||
- RS Stock No.:
- 568-745
- Mfr. Part No.:
- EEEFP1E471AP
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
Product Details
FP Series reels
Full reels of surface mount V type Electrolytic capacitors able to withstand high reflow temperatures for extended periods
Specifications
Attribute | Value |
|---|---|
| Capacitance | 470µF |
| Voltage | 25V dc |
| Mounting Type | Surface Mount |
| Technology | Aluminium Electrolytic |
| Dimensions | 10 (Dia.) x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Leakage Current | 3 μA |
| Series | FP SMD |
| Equivalent Series Resistance | 60mΩ |
| Tolerance | ±20% |
| Polarised | Polar |
| Ripple Current | 1.19A |
