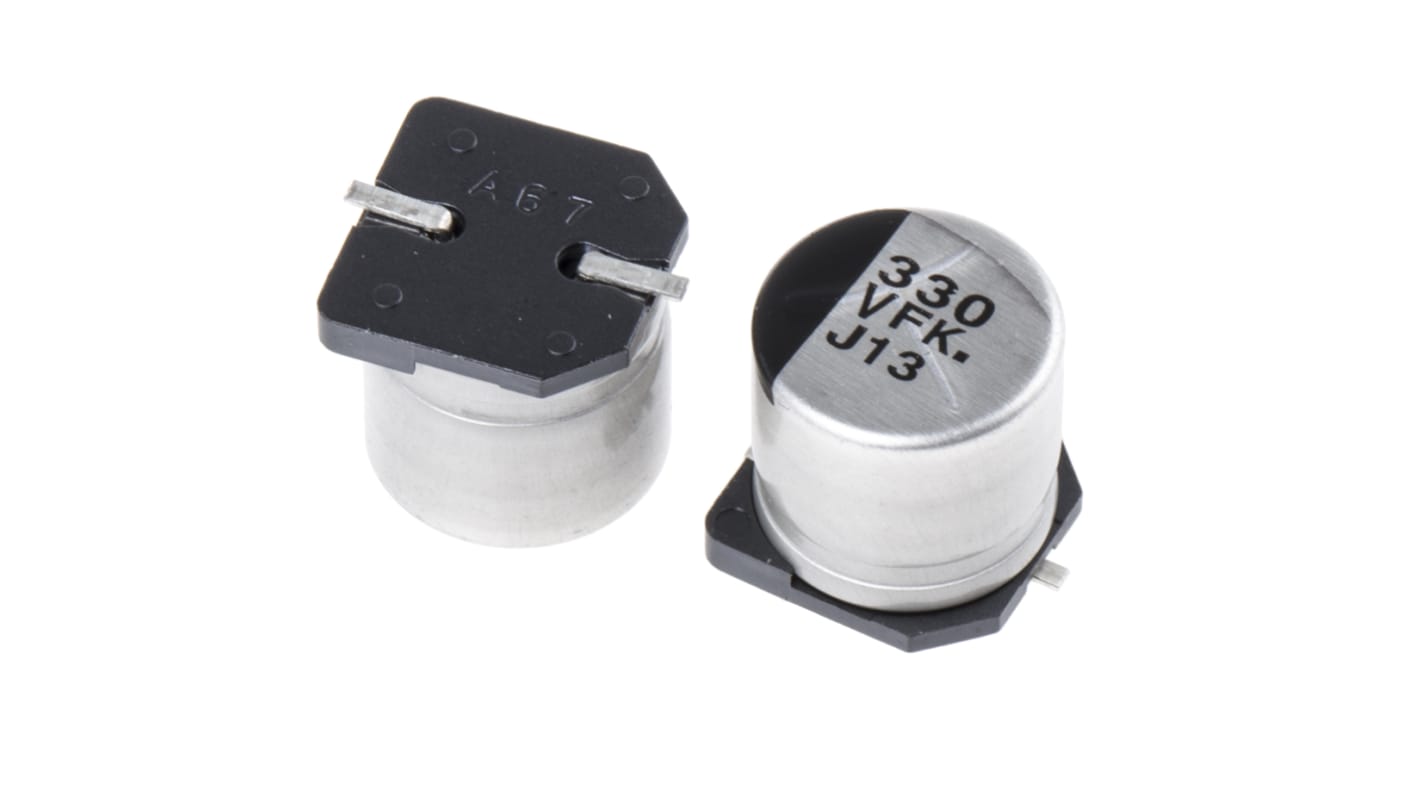

Panasonic 330μF Aluminium Electrolytic Aluminium Electrolytic Capacitor 35V dc, Surface Mount - EEEFK1V331AP
- RS Stock No.:
- 565-796
- Mfr. Part No.:
- EEEFK1V331AP
- Brand:
- Panasonic
Save 25% when you buy 500 units
Subtotal (1 pack of 5 units)*
£4.14
(exc. VAT)
£4.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
- Plus 10,035 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.828 | £4.14 |
| 50 - 95 | £0.778 | £3.89 |
| 100 - 245 | £0.728 | £3.64 |
| 250 - 495 | £0.68 | £3.40 |
| 500 + | £0.616 | £3.08 |
*price indicative
- RS Stock No.:
- 565-796
- Mfr. Part No.:
- EEEFK1V331AP
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 330µF | |
| Voltage | 35V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 10 (Dia.) x 10.2mm | |
| Height | 10.2mm | |
| Length | 10.2mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10mm | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 4.6mm | |
| Lifetime | 2000h | |
| Ripple Current | 850mA | |
| Series | FK | |
| Equivalent Series Resistance | 80mΩ | |
| Leakage Current | 3 μA | |
| Automotive Standard | AEC-Q200 | |
| Tolerance | ±20% | |
| Polarised | Polar | |
| Dissipation Factor | 200% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 330µF | ||
Voltage 35V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 10 (Dia.) x 10.2mm | ||
Height 10.2mm | ||
Length 10.2mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Maximum Operating Temperature +105°C | ||
Lead Pitch 4.6mm | ||
Lifetime 2000h | ||
Ripple Current 850mA | ||
Series FK | ||
Equivalent Series Resistance 80mΩ | ||
Leakage Current 3 μA | ||
Automotive Standard AEC-Q200 | ||
Tolerance ±20% | ||
Polarised Polar | ||
Dissipation Factor 200% | ||
