Norgren Compressed Air Pipe Blue Nylon 16mm x 25m PA2 series Series
- RS Stock No.:
- 220-3905
- Mfr. Part No.:
- PA2-0516025C
- Brand:
- Norgren
Bulk discount available
Subtotal (1 reel of 25 units)*
£242.63
(exc. VAT)
£291.16
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 - 4 | £242.63 | £9.705 |
| 5 + | £237.79 | £9.512 |
*price indicative
- RS Stock No.:
- 220-3905
- Mfr. Part No.:
- PA2-0516025C
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Hose Outside Diameter | 16mm | |
| Hose Inside Diameter | 12mm | |
| Colour | Blue | |
| Material | Nylon | |
| Length | 25m | |
| Maximum Operating Pressure | 19 bar | |
| Application | Industrial | |
| Manufacturer Series | PA2 series | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Hose Outside Diameter 16mm | ||
Hose Inside Diameter 12mm | ||
Colour Blue | ||
Material Nylon | ||
Length 25m | ||
Maximum Operating Pressure 19 bar | ||
Application Industrial | ||
Manufacturer Series PA2 series | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +80°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- ES

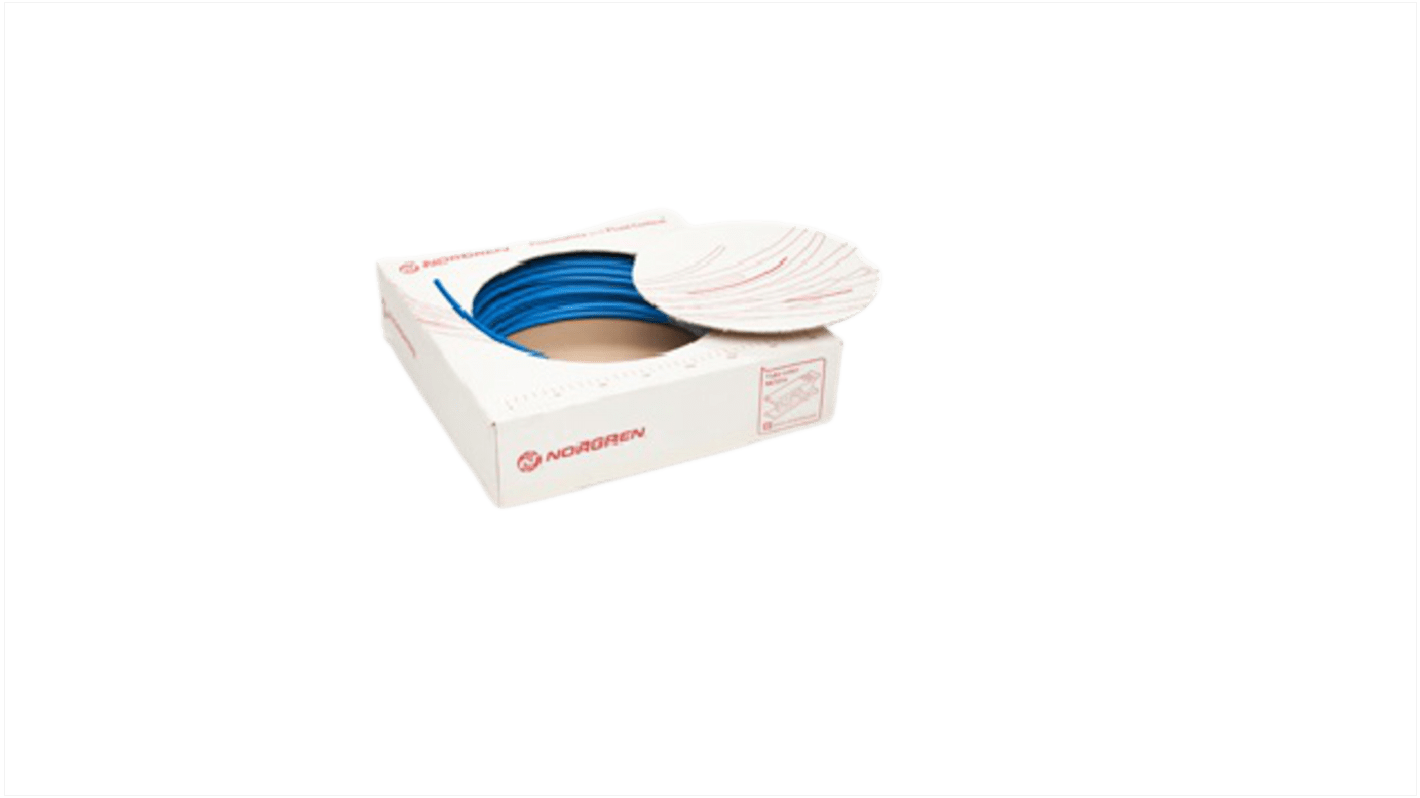

IMI Norgren Compressed Air Pipe, 12mm ID, 19 Bar Maximum Operating Pressure - PA2 Series - PA2-0516025C
Need to make the right connection for prime pressurised performance? Use this compressed air pipe from IMI Norgren. It links devices in your pneumatic network to get media moving smoothly from A to B. The durable nylon material handles high pressures of up to 19 bar at temperatures between -40°C and +20°C. It also stands up to abrasive and chemical damage, so you can be sure this is a robust component that handles tough environments.
Features & Benefits
• Blue colour is easy to spot in a network for convenient troubleshooting
• Easily cut the 25m-long tube to size for custom installations
• Safe to use in challenging settings, thanks to an operating temperature range of -40°C to +80°C
• Comes in a handy box for easy unravelling
• Easily cut the 25m-long tube to size for custom installations
• Safe to use in challenging settings, thanks to an operating temperature range of -40°C to +80°C
• Comes in a handy box for easy unravelling
Applications
• Air braking systems
• Welding equipment
• Industrial blow guns
• Medical devices
• Welding equipment
• Industrial blow guns
• Medical devices
What dimensions does this compressed air pipe have?
The tubing has an outer diameter of 16mm and an inner diameter of 12mm, making it compact enough for smaller spaces.
How do I choose the right pneumatic tube for my system?
Match the diameters of the compressed air pipe with your connectors and other fittings. Also, make sure the tube can handle the pressure demands of your application.
