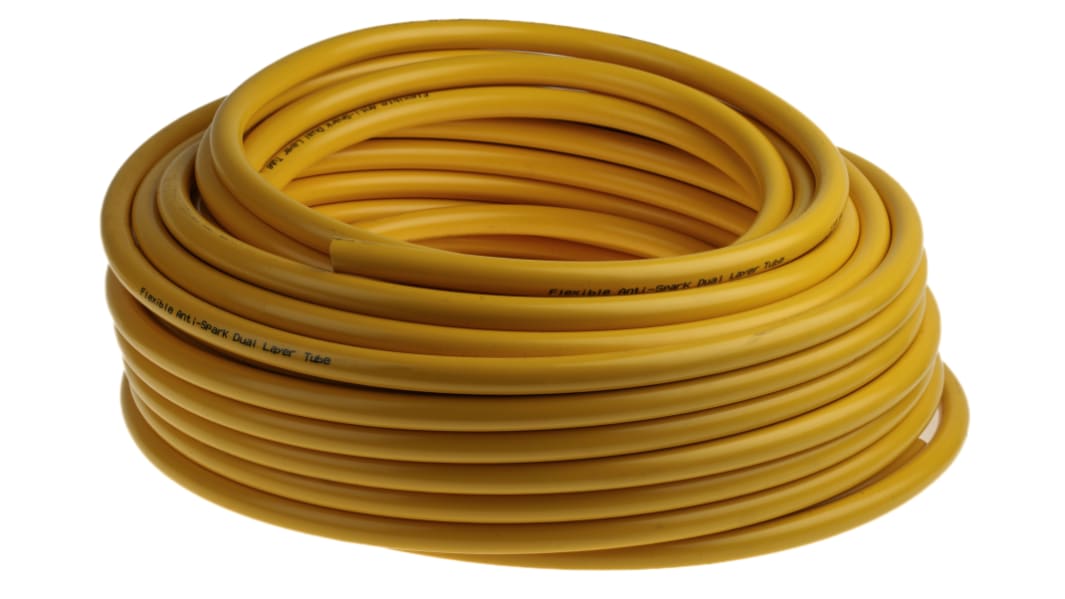

RS PRO Compressed Air Pipe Yellow PUR, PVC 6mm x 30m
- RS Stock No.:
- 174-5731
- Brand:
- RS PRO
Subtotal (1 unit)*
£47.43
(exc. VAT)
£56.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.43 |
*price indicative
- RS Stock No.:
- 174-5731
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Hose Outside Diameter | 6 mm, 8mm | |
| Hose Inside Diameter | 4mm | |
| Colour | Yellow | |
| Material | PUR, PVC | |
| Length | 30m | |
| Maximum Operating Pressure | 40 bar | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | +60°C | |
| Special Features | Alkalis, Dilute Acids, Fungi, Greases, Moulds, Oils, Petroleum Products, Resistant to most Solvents | |
| Number of Tubes | 1 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Hose Outside Diameter 6 mm, 8mm | ||
Hose Inside Diameter 4mm | ||
Colour Yellow | ||
Material PUR, PVC | ||
Length 30m | ||
Maximum Operating Pressure 40 bar | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature +60°C | ||
Special Features Alkalis, Dilute Acids, Fungi, Greases, Moulds, Oils, Petroleum Products, Resistant to most Solvents | ||
Number of Tubes 1 | ||
- COO (Country of Origin):
- GB
Designed for use in welding applications, where tubing is likely to come in to contact with weld spatter and sparks. Able to carry air, gases, some liquids, dry powders and granules.
Key Features:
• Withstands weld spatter and sparks.
• Made from pneumatic polyurethane tubing covered in 1mm of flame retardant PVC.The flame retardant cover increases the overall OD by 2mm and it needs to be removed for pneumatic connections.
• Inner tube is manufactured from 100% ester based polyurethane, with no Plasticisers.
• Outer tube is flame retardant and self-extinguishing – avoiding the need for expensive metallic braided pipes.
• Extremely durable.
• Resistant to most solvents, alkalis, oils, greases, petroleum products, fungi, moulds and dilute acids (mineral and organic).
• Outer tube rating: Meets UL94V0 self extinguishing requirements.
• Made from pneumatic polyurethane tubing covered in 1mm of flame retardant PVC.The flame retardant cover increases the overall OD by 2mm and it needs to be removed for pneumatic connections.
• Inner tube is manufactured from 100% ester based polyurethane, with no Plasticisers.
• Outer tube is flame retardant and self-extinguishing – avoiding the need for expensive metallic braided pipes.
• Extremely durable.
• Resistant to most solvents, alkalis, oils, greases, petroleum products, fungi, moulds and dilute acids (mineral and organic).
• Outer tube rating: Meets UL94V0 self extinguishing requirements.
Applications:
• Welding
• Industrial robotics
• Pneumatic valves, fuel and lubrication lines
• Control instrumentation
• Pneumatic lines, chemical transfer tubing, metering pumps
• Industrial robotics
• Pneumatic valves, fuel and lubrication lines
• Control instrumentation
• Pneumatic lines, chemical transfer tubing, metering pumps
Note
This sheeth needs to be stripped back for connections to fitting.
