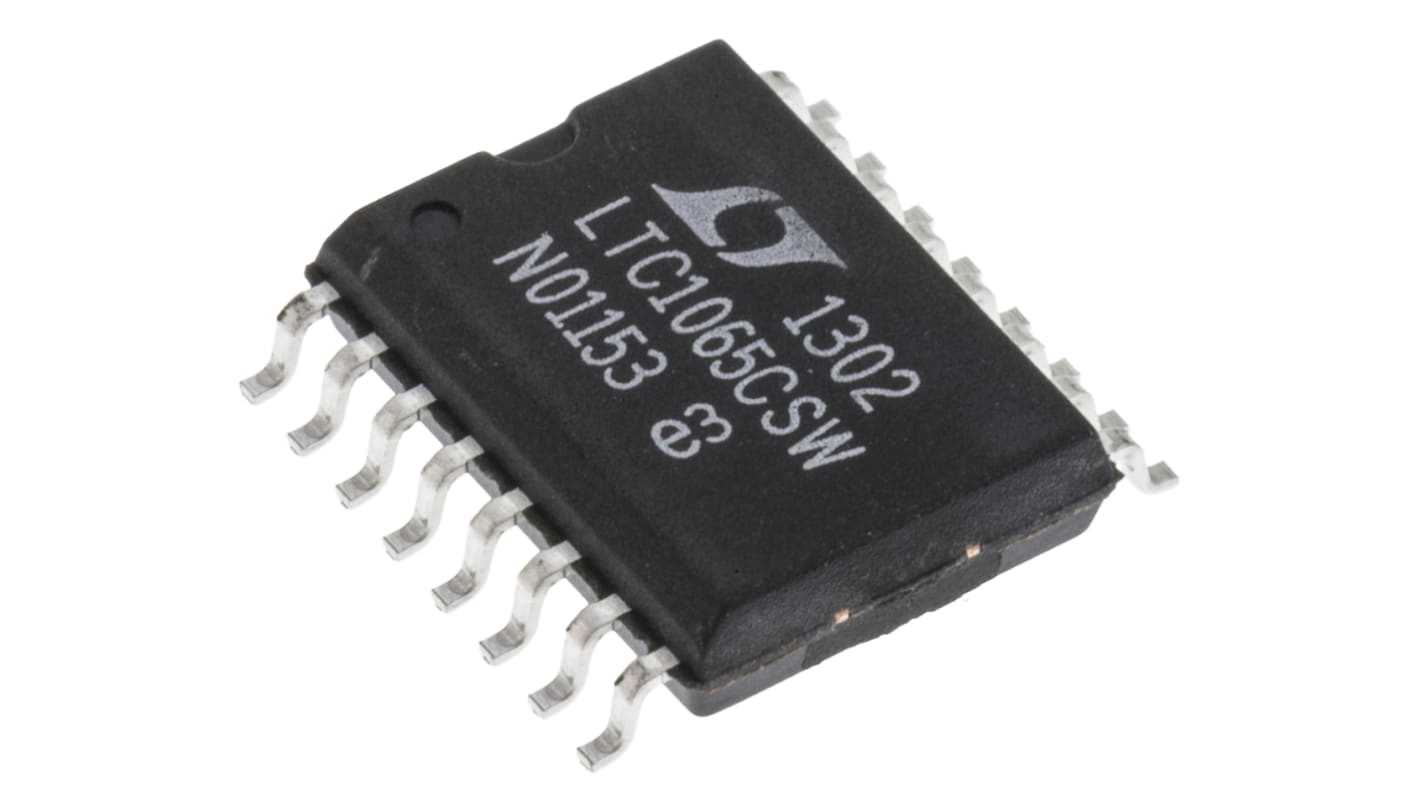

Analog Devices Low Pass Filter Active Filter, 5th Order
- RS Stock No.:
- 761-8920
- Mfr. Part No.:
- LTC1065CSW#PBF
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 761-8920
- Mfr. Part No.:
- LTC1065CSW#PBF
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Filter Type | Low Pass Filter | |
| Maximum Order | 5th | |
| Architecture | Switched Capacitor | |
| Cut-off Frequency | 50kHz | |
| Power Supply Type | Dual, Single | |
| Typical Dual Supply Voltage | ±2.375 → ±8V | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC W | |
| Pin Count | 16 | |
| Dimensions | 10.49 x 7.595 x 2.337mm | |
| Height | 2.337mm | |
| Minimum Operating Temperature | 0 °C | |
| Width | 7.595mm | |
| Operating Temperature Range | 0 → +70 °C | |
| Length | 10.49mm | |
| Maximum Operating Temperature | +70 °C | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Filter Type Low Pass Filter | ||
Maximum Order 5th | ||
Architecture Switched Capacitor | ||
Cut-off Frequency 50kHz | ||
Power Supply Type Dual, Single | ||
Typical Dual Supply Voltage ±2.375 → ±8V | ||
Mounting Type Surface Mount | ||
Package Type SOIC W | ||
Pin Count 16 | ||
Dimensions 10.49 x 7.595 x 2.337mm | ||
Height 2.337mm | ||
Minimum Operating Temperature 0 °C | ||
Width 7.595mm | ||
Operating Temperature Range 0 → +70 °C | ||
Length 10.49mm | ||
Maximum Operating Temperature +70 °C | ||
Filter ICs, Linear Technology
Linear Technology filter ICs present continuous time and switched capacitor filters that offer flexibility as well as being easy to use. The active filters can support low pass and a wide range of frequencies. They are suitable for use in Phased locked loop, smoothing filters, discrete RC active filter replacement and many more applications.
Supports Cutoff Frequencies up to 360 kHz
Operating from voltages up to 15V
Architectures: Proprietary, Switched Capacitor and Continuous Time
Forms to 2nd,4th,5th, 8th and 10th Order Low-pass Filters and Universal Filters
Available in a variety of Surface Mount (SMT) or through-hole packages
Operating from voltages up to 15V
Architectures: Proprietary, Switched Capacitor and Continuous Time
Forms to 2nd,4th,5th, 8th and 10th Order Low-pass Filters and Universal Filters
Available in a variety of Surface Mount (SMT) or through-hole packages
