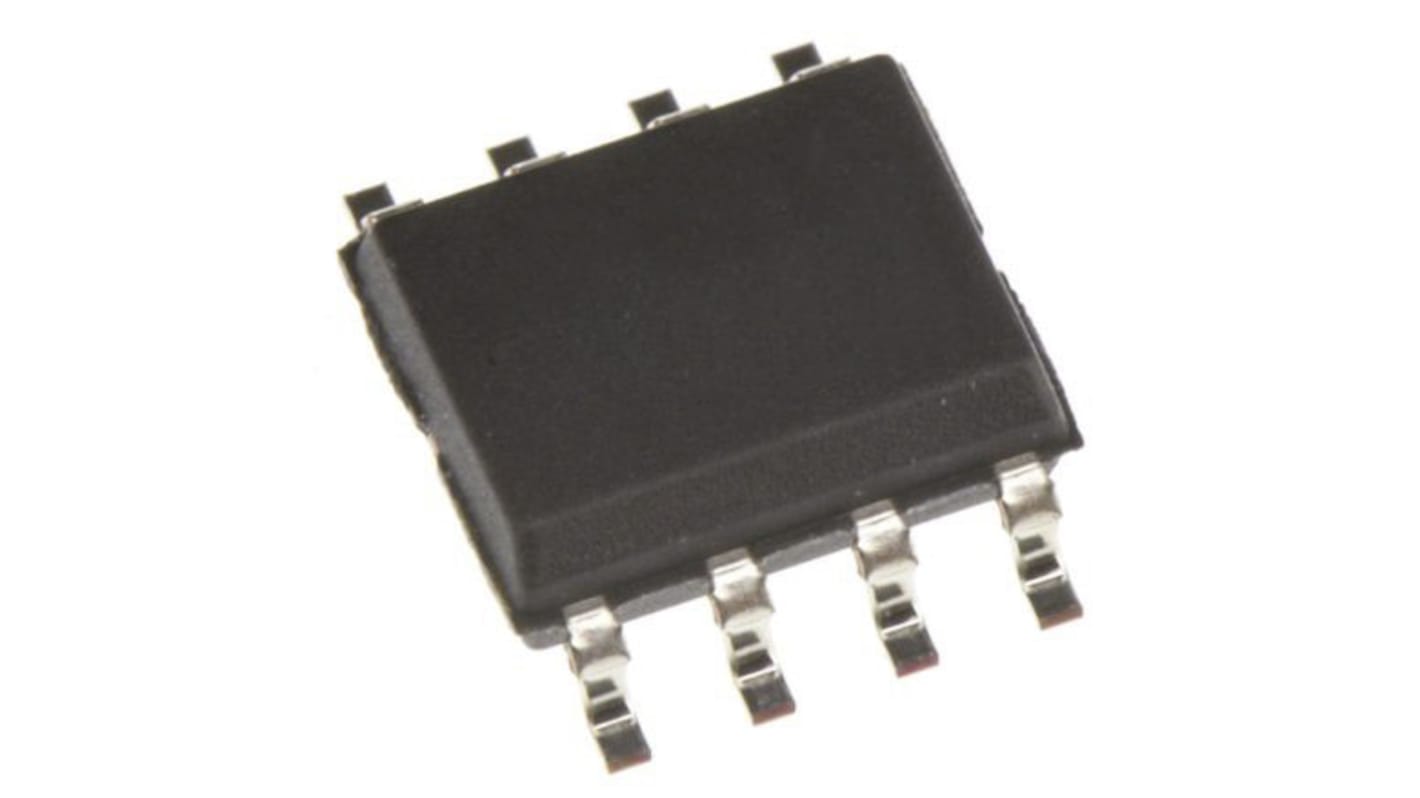

Maxim Integrated Elliptic, Low Pass Filter Active Filter, 8th Order

View all Active Filters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
190-6083
Mfr. Part No.:
MAX7400ESA+
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Filter Type

Elliptic, Low Pass Filter

Maximum Order

8th

Architecture

Switched Capacitor

Cut-off Frequency

1 → 10kHz

Power Supply Type

Single

Typical Single Supply Voltage

4.5 → 5.5 V

Number of Circuits

1

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

8

Dimensions

5 x 4 x 1.5mm

Height

1.5mm

Width

4mm

Operating Temperature Range

-40 → +85 °C

Length

5mm

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

8th-Order Lowpass Elliptic Filter
Low Noise and Distortion -82dB THD + Noise (MAX7400)
Clock-Tunable Corner Frequency (1Hz to 10kHz)
100:1 Clock-to-Corner Ratio
Single-Supply Operation
+5V (MAX7400/MAX7403)
+3V (MAX7404/MAX7407)
Low Power
2mA (Operating Mode)
0.2μA (Shutdown Mode)
Available in 8-Pin SO and DIP Packages
Low Output Offset: ±5mV
Applications
ADC Anti-Aliasing
Air-Bag Electronics
CT2 Base Stations
Post-DAC Filtering
Speech Processing
