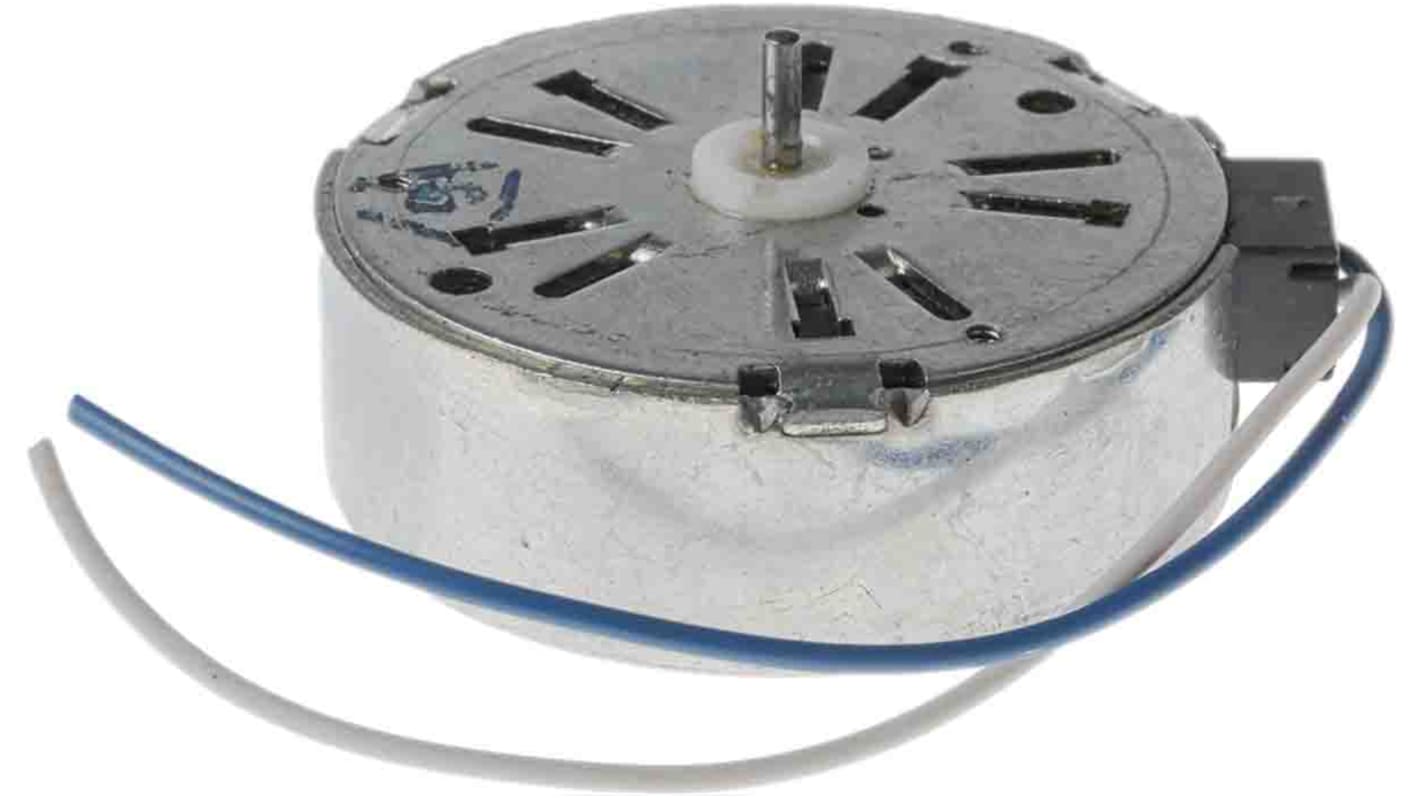

Crouzet 820000 Clockwise Synchronous AC Motor, 0.16 W, 1 Phase, 10 Pole, 230 V
- RS Stock No.:
- 409-5478
- Mfr. Part No.:
- 82340194
- Brand:
- Crouzet
Subtotal (1 unit)*
£56.06
(exc. VAT)
£67.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £56.06 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£56.08
(exc. VAT)
£67.30
(inc. VAT)
- RS Stock No.:
- 409-5478
- Mfr. Part No.:
- 82340194
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Crouzet | |
Power Rating | 0.16 W | |
AC Motor Type | Synchronous | |
Supply Voltage | 230 V | |
Phase | 1 | |
Output Speed | 600 rpm @ 240 V | |
Number of Poles | 10 | |
Shaft Diameter | 1.96mm | |
Shaft Length | 6.6mm | |
Maximum Output Torque | 2.5 mNm | |
Rotation | Clockwise | |
Length | 16.9mm | |
Dimensions | 47.2 (Dia.) x 16.9 mm | |
Series | 820000 | |
Select all | ||
---|---|---|
Brand Crouzet | ||
Power Rating 0.16 W | ||
AC Motor Type Synchronous | ||
Supply Voltage 230 V | ||
Phase 1 | ||
Output Speed 600 rpm @ 240 V | ||
Number of Poles 10 | ||
Shaft Diameter 1.96mm | ||
Shaft Length 6.6mm | ||
Maximum Output Torque 2.5 mNm | ||
Rotation Clockwise | ||
Length 16.9mm | ||
Dimensions 47.2 (Dia.) x 16.9 mm | ||
Series 820000 | ||
- COO (Country of Origin):
- FR
Unidirectional 0.16 W synchronous motors
Direct, unidirectional ferrite synchronous motors, 0.16 W.
Feature a mechanical non-return system to maintain stable positioning.
These motors may be used in programmers, mixers, medical devices, advertising devices and recorders.
30 mm wire connection.
Feature a mechanical non-return system to maintain stable positioning.
These motors may be used in programmers, mixers, medical devices, advertising devices and recorders.
30 mm wire connection.
AC Synchronous Motors
These synchronous motors are for direct driving from an a.c. supply. Ideally suited for time driving in instrumentation, machine and process control. The smaller units can be directly connected to the synchronous gearboxes (typical stock no. 332-868 etc).
