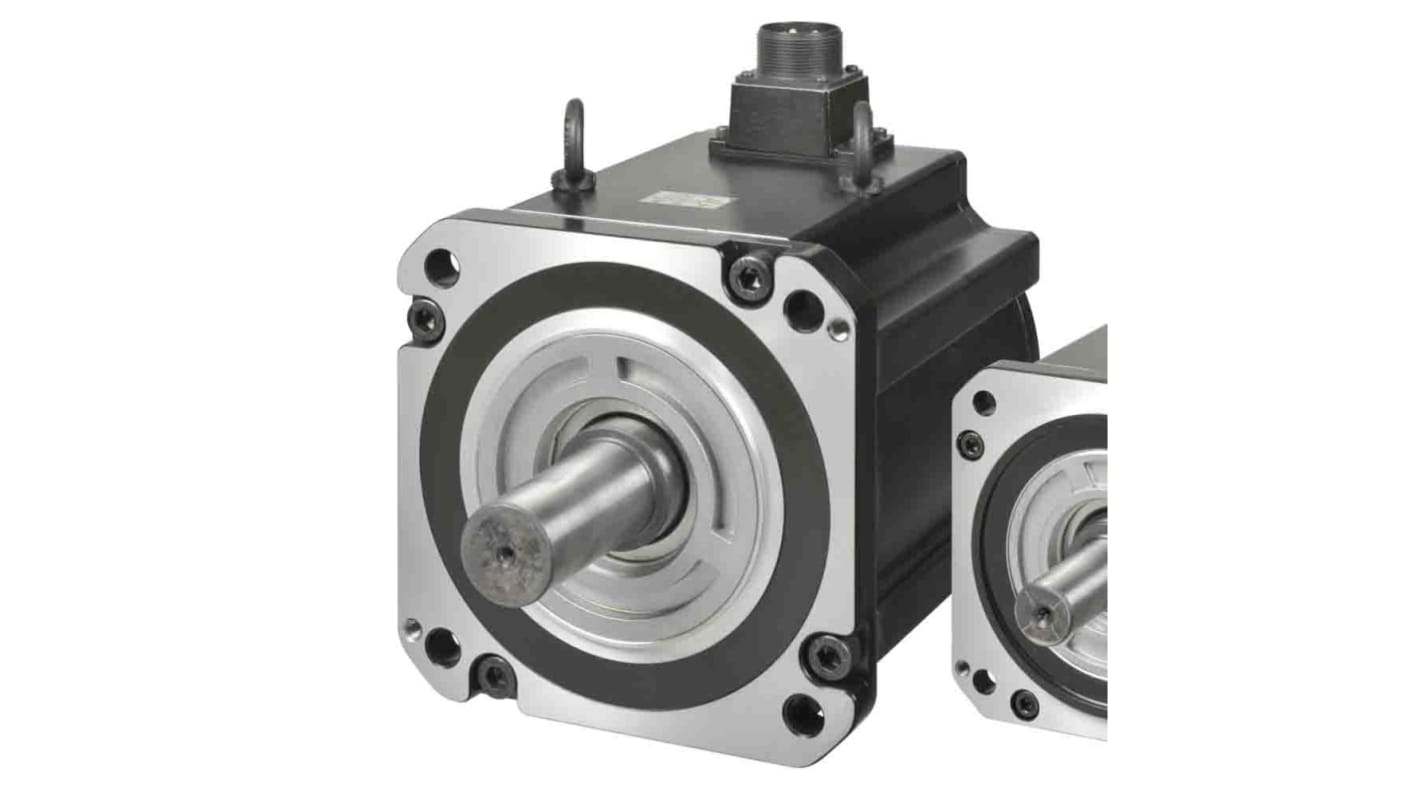

Omron 1S AC Motor, 5.5 kW, 3 Phase, 400V, Screw Mounting
- RS Stock No.:
- 214-7402
- Distrelec Article No.:
- 302-29-280
- Mfr. Part No.:
- R88M-1M5K515C-S2
- Brand:
- Omron
Subtotal (1 unit)*
£2,556.31
(exc. VAT)
£3,067.57
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £2,556.31 |
*price indicative
- RS Stock No.:
- 214-7402
- Distrelec Article No.:
- 302-29-280
- Mfr. Part No.:
- R88M-1M5K515C-S2
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Power Rating | 5.5kW | |
| Product Type | AC Motor | |
| Sub Type | Middle Inertia Type Servo Motor | |
| Supply Voltage | 400V | |
| Number of Phases | 3 | |
| Output Speed | 1500rpm | |
| Mount Type | Screw | |
| Shaft Diameter | 42mm | |
| Material | Steel | |
| Shaft Length | 109mm | |
| Width | 180mm | |
| Standards/Approvals | RoHS | |
| Depth | 264mm | |
| Length | 361mm | |
| Maximum Output Torque | 35Nm | |
| Series | 1S | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Power Rating 5.5kW | ||
Product Type AC Motor | ||
Sub Type Middle Inertia Type Servo Motor | ||
Supply Voltage 400V | ||
Number of Phases 3 | ||
Output Speed 1500rpm | ||
Mount Type Screw | ||
Shaft Diameter 42mm | ||
Material Steel | ||
Shaft Length 109mm | ||
Width 180mm | ||
Standards/Approvals RoHS | ||
Depth 264mm | ||
Length 361mm | ||
Maximum Output Torque 35Nm | ||
Series 1S | ||
The Omron 1S AC servo motor has 400 VAC input voltage. It has 23-bit resolution encoder. It has 1500 rpm speed.
It has compact and small motor size
It is designed for easy EMC compliance
