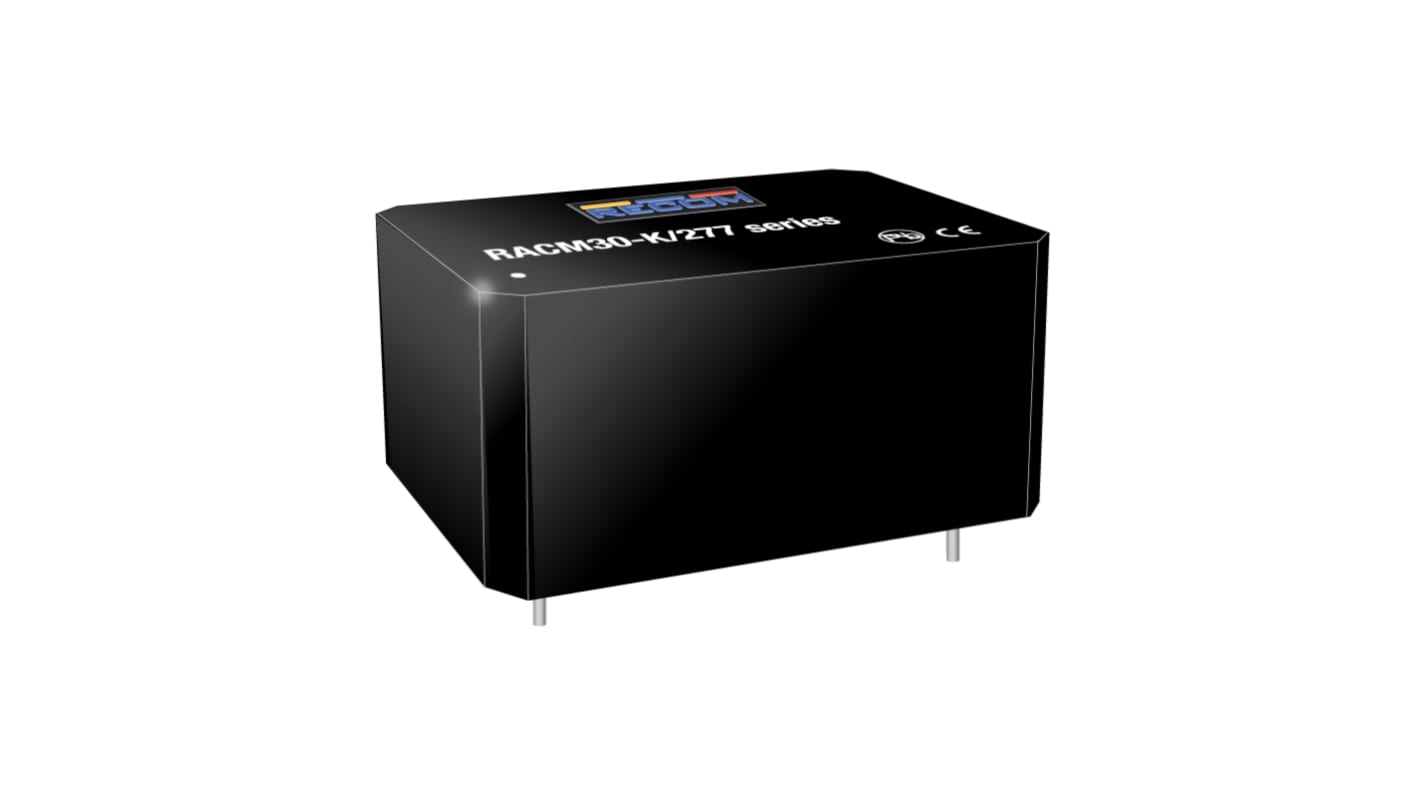

Recom, AC/DC Converter 6 A, 5V dc, 5 V dc, Potted
- RS Stock No.:
- 274-5362
- Mfr. Part No.:
- RACM30-05SK/277
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 11 units)*
£158.94
(exc. VAT)
£190.73
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 8 | £158.94 | £14.449 |
| 9 - 21 | £145.91 | £13.265 |
| 22 - 44 | £140.98 | £12.816 |
| 45 + | £137.33 | £12.485 |
*price indicative
- RS Stock No.:
- 274-5362
- Mfr. Part No.:
- RACM30-05SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 305V ac | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 5V dc | |
| Mount Type | Through Hole | |
| Output Power | 30W | |
| Maximum Output Current | 6A | |
| Package Type | Potted | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN60601‑1‑2, REACH & RoHS, LPS & reinforced Class II insulation, CE, EN62368‑1, UL62368‑1, EN60335‑1, CB, EN55032 Class B EMC | |
| Series | RACM30 | |
| Width | 40mm | |
| Length | 52.5mm | |
| Height | 25.5mm | |
| Minimum Output Voltage | 5V dc | |
| Minimum Output Current | 6000mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 305V ac | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 5V dc | ||
Mount Type Through Hole | ||
Output Power 30W | ||
Maximum Output Current 6A | ||
Package Type Potted | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN60601‑1‑2, REACH & RoHS, LPS & reinforced Class II insulation, CE, EN62368‑1, UL62368‑1, EN60335‑1, CB, EN55032 Class B EMC | ||
Series RACM30 | ||
Width 40mm | ||
Length 52.5mm | ||
Height 25.5mm | ||
Minimum Output Voltage 5V dc | ||
Minimum Output Current 6000mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Recom AC/DC Converter provide a leading thermally effective Power yield of 9.2 Watts for continuous loads of 30 Watts plus additional peak capability. It provides ease system implementation for quick time-to-market without additional external circuitr
Maximum flexibility
LPS limited power source
