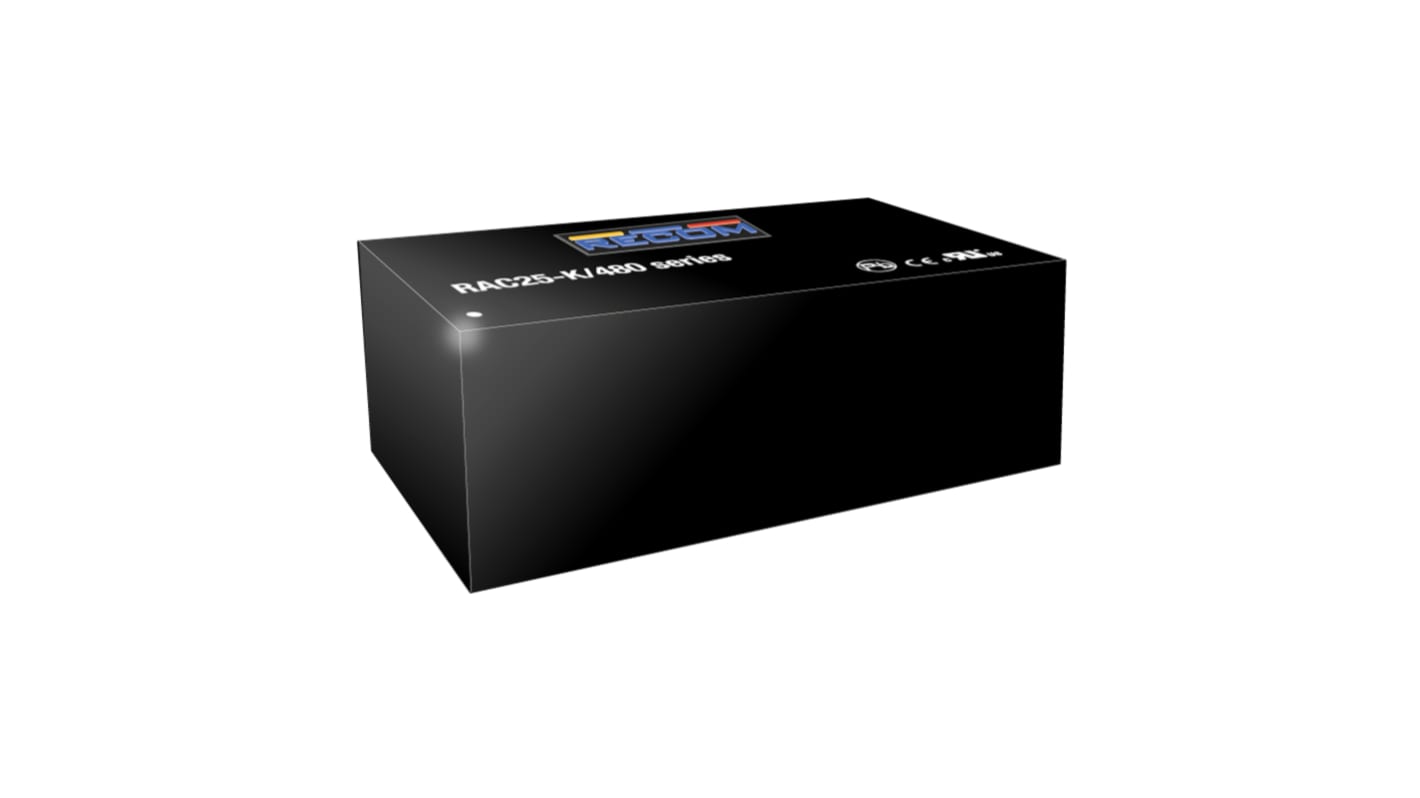

Recom, AC/DC Converter 1.67 A, 15 V dc, 15 V dc 6-Pin
- RS Stock No.:
- 274-5229
- Mfr. Part No.:
- RAC25-15SK/480
- Brand:
- Recom
Bulk discount available
Subtotal (1 tray of 12 units)*
£270.66
(exc. VAT)
£324.79
(inc. VAT)
Stock information currently inaccessible - Please check back later
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 - 8 | £270.66 | £22.555 |
| 9 + | £242.24 | £20.187 |
*price indicative
- RS Stock No.:
- 274-5229
- Mfr. Part No.:
- RAC25-15SK/480
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 528V ac | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 15V dc | |
| Output Power | 25W | |
| Mount Type | Through Hole | |
| Pin Count | 6 | |
| Maximum Output Current | 1.67A | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Height | 30.4mm | |
| Series | RAC25 | |
| Length | 83.23mm | |
| Standards/Approvals | UL62368‑1, CE, EN60335‑1, REACH & RoHS, EN55032 Class B EMC, LPS & reinforced Class II insulation, EN62368‑1, EN60601‑1‑2, CB | |
| Automotive Standard | No | |
| Minimum Output Voltage | 15V dc | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 528V ac | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 15V dc | ||
Output Power 25W | ||
Mount Type Through Hole | ||
Pin Count 6 | ||
Maximum Output Current 1.67A | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Height 30.4mm | ||
Series RAC25 | ||
Length 83.23mm | ||
Standards/Approvals UL62368‑1, CE, EN60335‑1, REACH & RoHS, EN55032 Class B EMC, LPS & reinforced Class II insulation, EN62368‑1, EN60601‑1‑2, CB | ||
Automotive Standard No | ||
Minimum Output Voltage 15V dc | ||
The Recom AC/DC Converter with ultra-wide input range is specially designed for harsh industrial conditions of overvoltage. This power supply is capable of operating over a wide temperature range by just adding an external fuse, and offer LPS limited outp
Global safety certifications
Extremely compact
