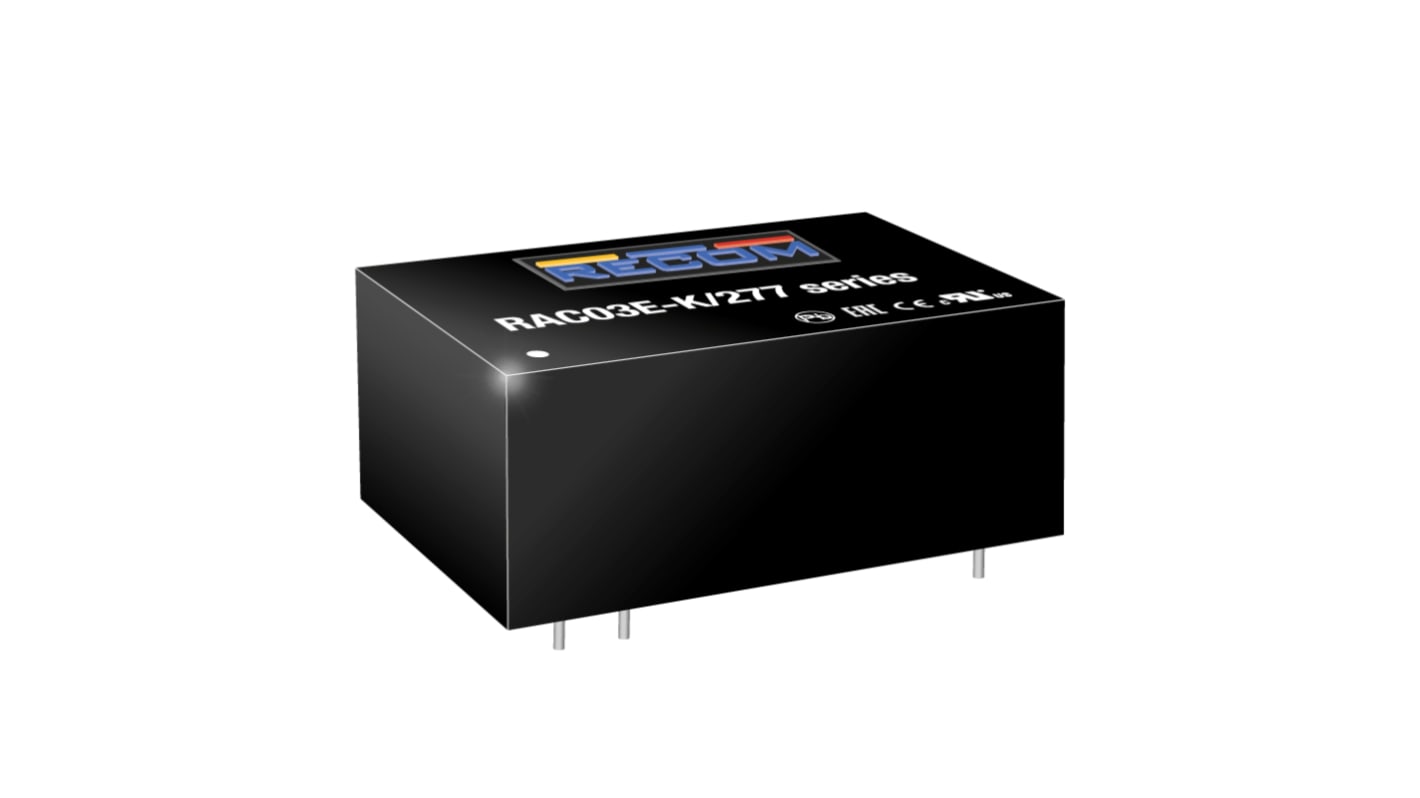

Recom, AC/DC Converter 125 mA, 24 V dc, 24 V dc 5-Pin, 1.45 x 0.95 in
- RS Stock No.:
- 274-5213
- Mfr. Part No.:
- RAC03E-24SK/277
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 12 units)*
£78.16
(exc. VAT)
£93.79
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £78.16 | £6.513 |
| 5 - 9 | £75.82 | £6.318 |
| 10 - 24 | £73.47 | £6.123 |
| 25 - 49 | £71.13 | £5.928 |
| 50 + | £68.78 | £5.732 |
*price indicative
- RS Stock No.:
- 274-5213
- Mfr. Part No.:
- RAC03E-24SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 305V ac | |
| Maximum Output Voltage | 24V dc | |
| Output Power | 3W | |
| Mount Type | Through Hole | |
| Pin Count | 5 | |
| Maximum Output Current | 125mA | |
| Package Type | 1.45 x 0.95 in | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 37mm | |
| Height | 15.4mm | |
| Series | RAC03E | |
| Standards/Approvals | REACH & RoHS, UL62368‑1, EN60601‑1‑2, EN60335‑1, LPS & reinforced Class II insulation, CE, EN62368‑1, CB, EN55032 Class B EMC | |
| Automotive Standard | No | |
| Minimum Output Voltage | 24V dc | |
| Minimum Output Current | 125mA | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 305V ac | ||
Maximum Output Voltage 24V dc | ||
Output Power 3W | ||
Mount Type Through Hole | ||
Pin Count 5 | ||
Maximum Output Current 125mA | ||
Package Type 1.45 x 0.95 in | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 37mm | ||
Height 15.4mm | ||
Series RAC03E | ||
Standards/Approvals REACH & RoHS, UL62368‑1, EN60601‑1‑2, EN60335‑1, LPS & reinforced Class II insulation, CE, EN62368‑1, CB, EN55032 Class B EMC | ||
Automotive Standard No | ||
Minimum Output Voltage 24V dc | ||
Minimum Output Current 125mA | ||
The Recom AC/DC Converter delivers an uncompromising 3 watts of output power with tightly regulated outputs. It is a encapsulated print-mountable module in an industry-standard which pinout deliver full output power. It holds international safety certific
Low profile
Easy to use
