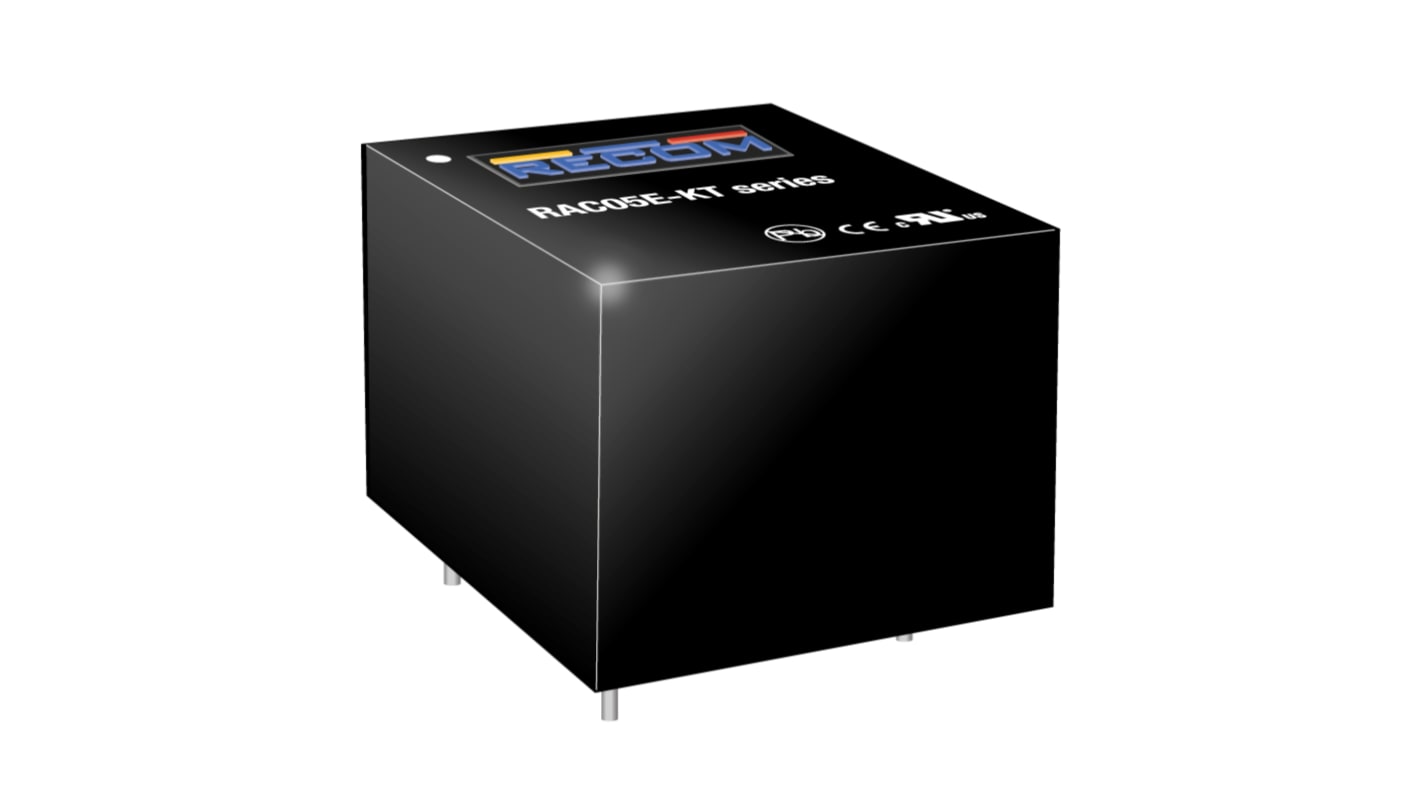

Recom, AC/DC Converter 1.25 A, 4 V dc, 4 V dc 4-Pin, 1.07 x 1.26 in RAC05E-04SKT
- RS Stock No.:
- 274-5183
- Mfr. Part No.:
- RAC05E-04SKT
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£5.07
(exc. VAT)
£6.08
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 22 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.07 |
| 5 - 9 | £4.92 |
| 10 - 24 | £4.77 |
| 25 - 49 | £4.62 |
| 50 + | £4.46 |
*price indicative
- RS Stock No.:
- 274-5183
- Mfr. Part No.:
- RAC05E-04SKT
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 264V ac | |
| Maximum Output Voltage | 4V dc | |
| Output Power | 5W | |
| Mount Type | Through Hole | |
| Pin Count | 4 | |
| Switching Frequency | 130kHz | |
| Maximum Output Current | 1.25A | |
| Package Type | 1.07 x 1.26 in | |
| Minimum Input Voltage | 90V ac | |
| Topology | Regulated Flyback | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Series | RAC05 | |
| Length | 37mm | |
| Height | 18mm | |
| Standards/Approvals | EN60335-1, EN61000-x series, EN55035, RoHS2+, IEC/EN62368-1, CAN/CSA-C22.2 No. 62368-1, EN55032, REACH, EN61558-1/-2-16, UL62368-1 | |
| Minimum Output Voltage | 4V dc | |
| Minimum Output Current | 1250mA | |
| Automotive Standard | No | |
| Supply Current | 250mA | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 264V ac | ||
Maximum Output Voltage 4V dc | ||
Output Power 5W | ||
Mount Type Through Hole | ||
Pin Count 4 | ||
Switching Frequency 130kHz | ||
Maximum Output Current 1.25A | ||
Package Type 1.07 x 1.26 in | ||
Minimum Input Voltage 90V ac | ||
Topology Regulated Flyback | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Series RAC05 | ||
Length 37mm | ||
Height 18mm | ||
Standards/Approvals EN60335-1, EN61000-x series, EN55035, RoHS2+, IEC/EN62368-1, CAN/CSA-C22.2 No. 62368-1, EN55032, REACH, EN61558-1/-2-16, UL62368-1 | ||
Minimum Output Voltage 4V dc | ||
Minimum Output Current 1250mA | ||
Automotive Standard No | ||
Supply Current 250mA | ||
The Recom AC/DC converter is designed to meet general purpose requirements for ITE and office use as well as household applications or light industrial automation processes, with less than 0.1 watt no load power consumption.
Primary side regulated
Enhanced performance
