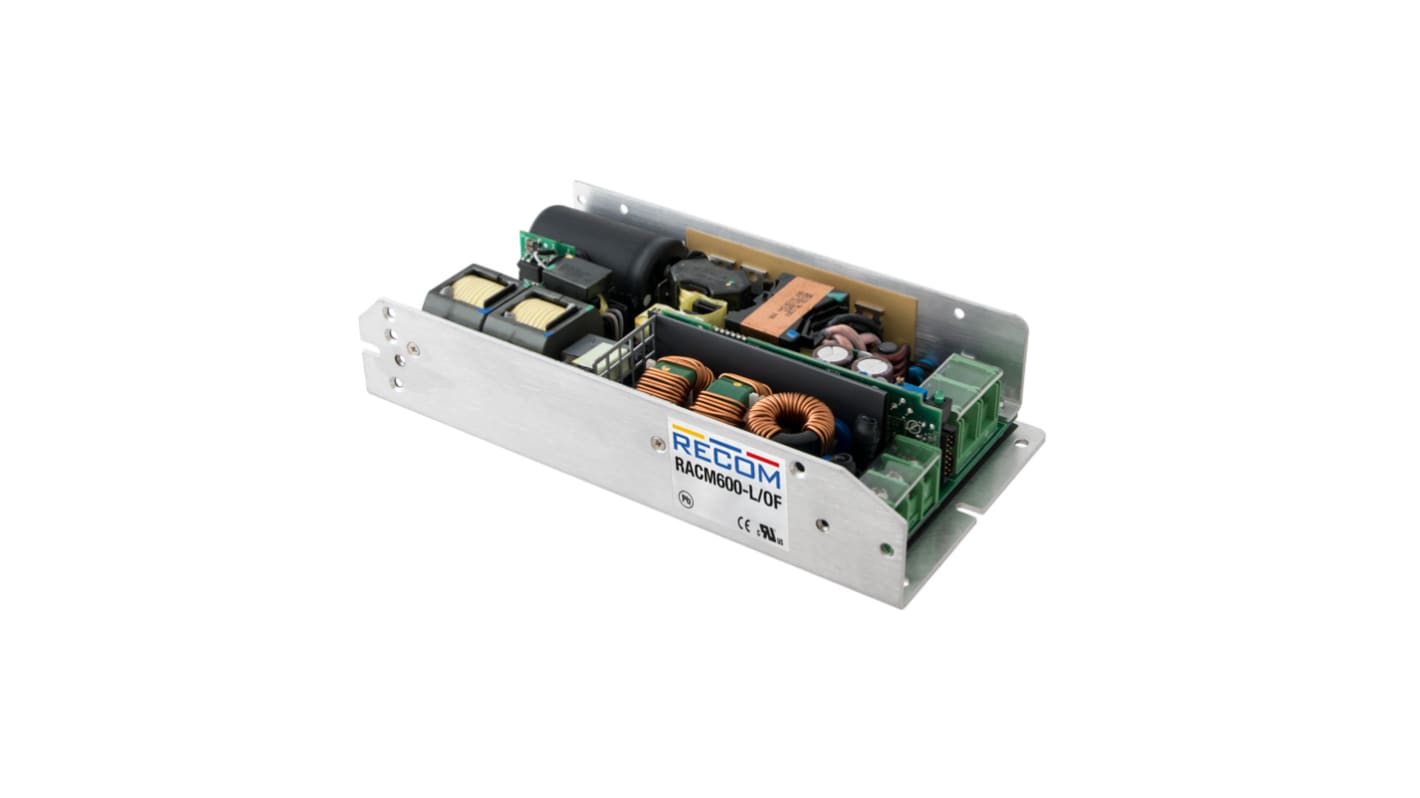

Recom, AC/DC Converter 16.67 A, 48V dc, 38.4 V, Open Frame RACM600-48SL/OF
- RS Stock No.:
- 274-3474
- Mfr. Part No.:
- RACM600-48SL/OF
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£135.97
(exc. VAT)
£163.16
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 6 | £135.97 |
| 7 - 13 | £131.75 |
| 14 + | £127.40 |
*price indicative
- RS Stock No.:
- 274-3474
- Mfr. Part No.:
- RACM600-48SL/OF
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 275V dc | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 48V dc | |
| Mount Type | Chassis | |
| Output Power | 600W | |
| Maximum Output Current | 16.67A | |
| Package Type | Open Frame | |
| Minimum Input Voltage | 80V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 101.6mm | |
| Standards/Approvals | IEC 60601-1-2, REACH, IEC 60068-2-27, IEC 60068-2-6, EN55032 Class B, RoHS2+, IEC 62368 | |
| Series | RACM600 | |
| Length | 196.8mm | |
| Height | 40.6mm | |
| Supply Current | 11.4A | |
| Minimum Output Voltage | 38.4V | |
| Minimum Output Current | 16670mA | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 275V dc | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 48V dc | ||
Mount Type Chassis | ||
Output Power 600W | ||
Maximum Output Current 16.67A | ||
Package Type Open Frame | ||
Minimum Input Voltage 80V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Width 101.6mm | ||
Standards/Approvals IEC 60601-1-2, REACH, IEC 60068-2-27, IEC 60068-2-6, EN55032 Class B, RoHS2+, IEC 62368 | ||
Series RACM600 | ||
Length 196.8mm | ||
Height 40.6mm | ||
Supply Current 11.4A | ||
Minimum Output Voltage 38.4V | ||
Minimum Output Current 16670mA | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TH
The Recom AC/DC power supply units are designed to support operation in natural convection where conduction cooling is not an option for up to 450W continuous and peak power of up to 600W or 800W.
Redundant operation and active current sharing
IEC60601 MOPP insulation system
3 years warranty
