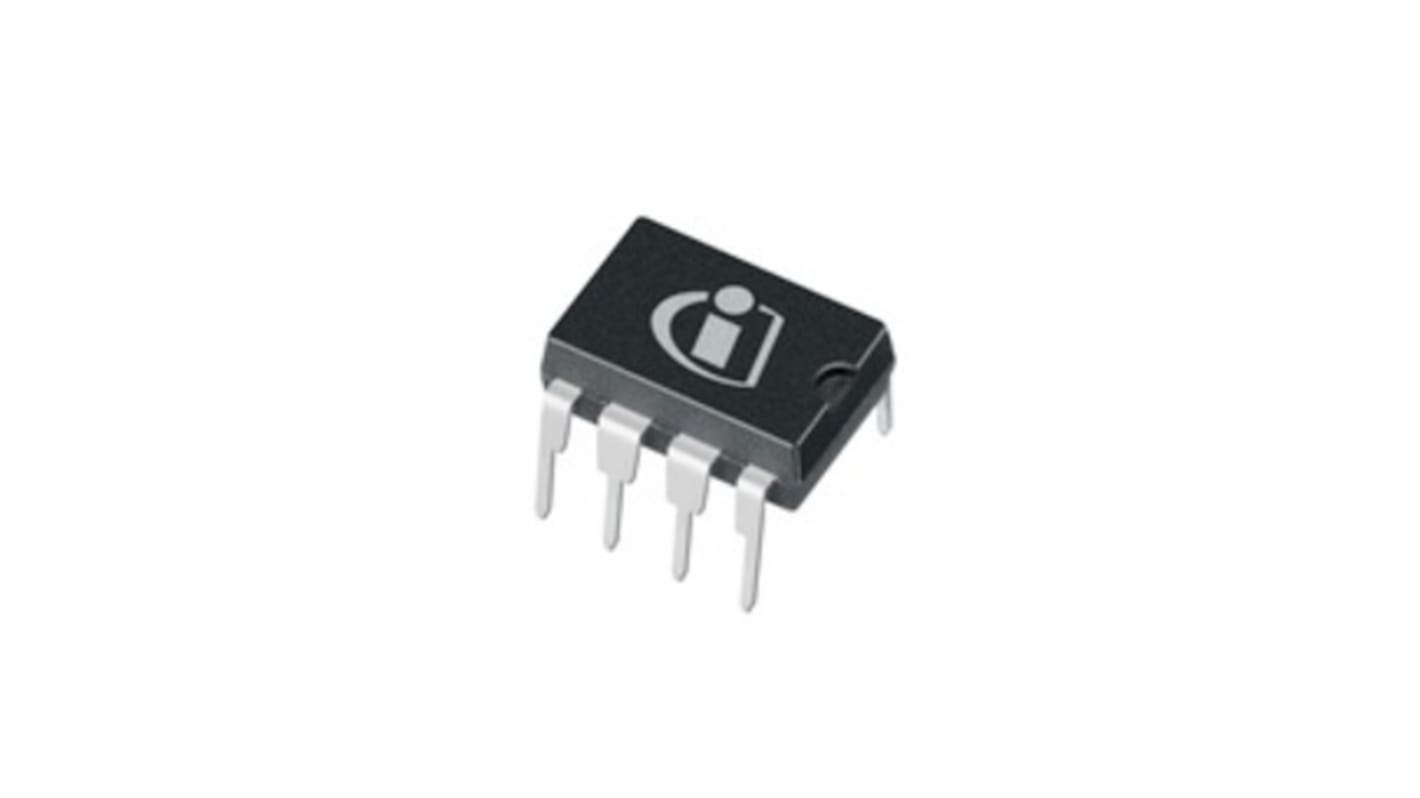

Infineon, AC-DC Converter, 10.5 → 26 V 8-Pin, DIP ICE3A1065ELJFKLA1

View all AC-DC Converters
Bulk discount available

Subtotal (1 tube of 50 units)*

£53.90

(exc. VAT)

£64.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
50 - 50£1.078£53.90
100 - 200£1.024£51.20
250 - 450£0.97£48.50
500 - 700£0.916£45.80
750 +£0.862£43.10

*price indicative

RS Stock No.:
260-5905
Mfr. Part No.:
ICE3A1065ELJFKLA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Mounting Type

Through Hole

Pin Count

8

Dimensions

8.26 x 6.6 x 7.8mm

Package Type

DIP

Output Voltage Range

10.5 → 26 V

The Infineon SMPS current mode controller comes with start-up cell. It consists active burst mode to reach the lowest standby power requirements < 100mW. Built-in latched off mode and external latch enable function to increase robustness of the system. Built-in and extendable blanking window for high load jumps to increase system reliability.

Built-in soft start
Built-in and extendable blanking window for short duration high current
External latch enable function
Max duty cycle 75%
Overall tolerance of current limiting < ±5%
