Recom, AC-DC Converter 5A 7-Pin RACM60-12SK/277/OF-T
- RS Stock No.:
- 249-8849
- Mfr. Part No.:
- RACM60-12SK/277/OF-T
- Brand:
- Recom
Bulk discount available
Subtotal (1 tray of 12 units)*
£230.508
(exc. VAT)
£276.612
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
12 - 48 | £19.209 | £230.51 |
60 - 108 | £18.633 | £223.60 |
120 - 288 | £18.057 | £216.68 |
300 - 588 | £17.481 | £209.77 |
600 + | £16.904 | £202.85 |
*price indicative
- RS Stock No.:
- 249-8849
- Mfr. Part No.:
- RACM60-12SK/277/OF-T
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Maximum Input Voltage | 305V | |
Maximum Output Voltage | 12V | |
Mounting Type | PCB Mount | |
Pin Count | 7 | |
Maximum Output Current | 5A | |
Dimensions | 76.2 x 50.8 x 32.0mm | |
Input Voltage Range | 80 → 264 Vac | |
Current Limit | 5000mA | |
Minimum Input Voltage | 80 Vac | |
Maximum Operating Temperature | +85 °C | |
Length | 76.2mm | |
Width | 50.8mm | |
Height | 32mm | |
Minimum Operating Temperature | -40 °C | |
Operating Temperature Range | -40 → +85 °C | |
Select all | ||
---|---|---|
Brand Recom | ||
Maximum Input Voltage 305V | ||
Maximum Output Voltage 12V | ||
Mounting Type PCB Mount | ||
Pin Count 7 | ||
Maximum Output Current 5A | ||
Dimensions 76.2 x 50.8 x 32.0mm | ||
Input Voltage Range 80 → 264 Vac | ||
Current Limit 5000mA | ||
Minimum Input Voltage 80 Vac | ||
Maximum Operating Temperature +85 °C | ||
Length 76.2mm | ||
Width 50.8mm | ||
Height 32mm | ||
Minimum Operating Temperature -40 °C | ||
Operating Temperature Range -40 → +85 °C | ||
- COO (Country of Origin):
- CN

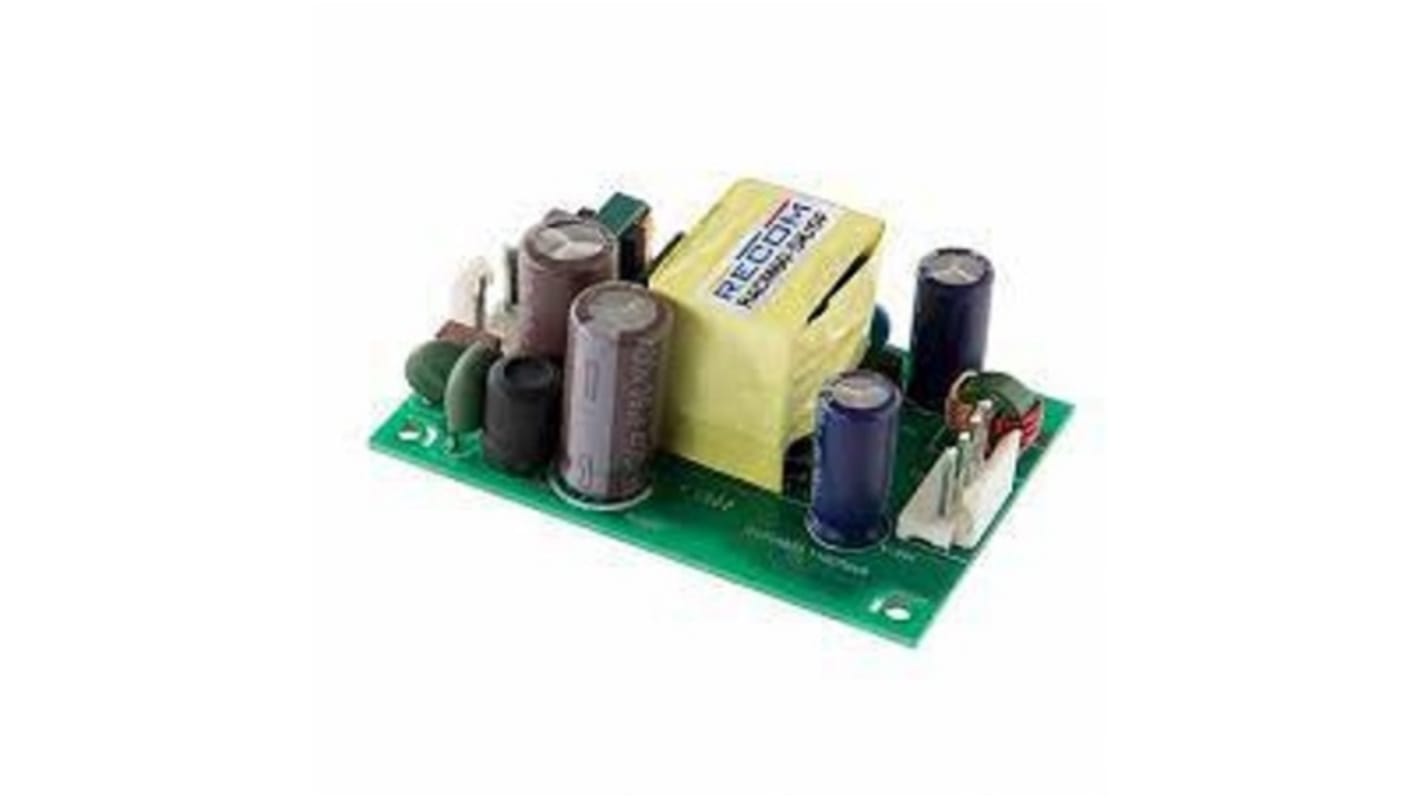

RECOM AC-DC Converter, 90% Efficiency, 5A Current Limit - RACM60-K Series - RACM60-12SK/277/OF-T
When you need to switch an AC supply voltage to DC but space is tight, opt for this compact converter from RECOM. It converts a maximum input of 305V AC to a maximum output of 12V DC, so you get a consistent power supply you can rely on. With dimensions of just 76.2 (L) x 50.8 (W) x 32mm (H), this diminutive device fits comfortably even in busy systems. Thanks to its open-frame construction, air can circulate readily to help avoid overheating. Thanks to a host of built-in protections against overvoltage, short circuits and output reverse voltage, you can rest assured your electrical safety is in good hands.
Features & Benefits
• Mean time between failures at +25°C of 900,000 hours, so it's a durable choice
• Wide operating temperature range between -40°C and +85°C means it's suitable for use in challenging conditions
• 4kV AC isolation voltage offers peace of mind in the event of a fault
• Wide operating temperature range between -40°C and +85°C means it's suitable for use in challenging conditions
• 4kV AC isolation voltage offers peace of mind in the event of a fault
Applications
• Medical technology
• Telecommunications equipment
• Consumer electronics
• Telecommunications equipment
• Consumer electronics
What's the power rating on this device?
This converter delivers an output of 60W, so it's a dependable option for low-power applications.
