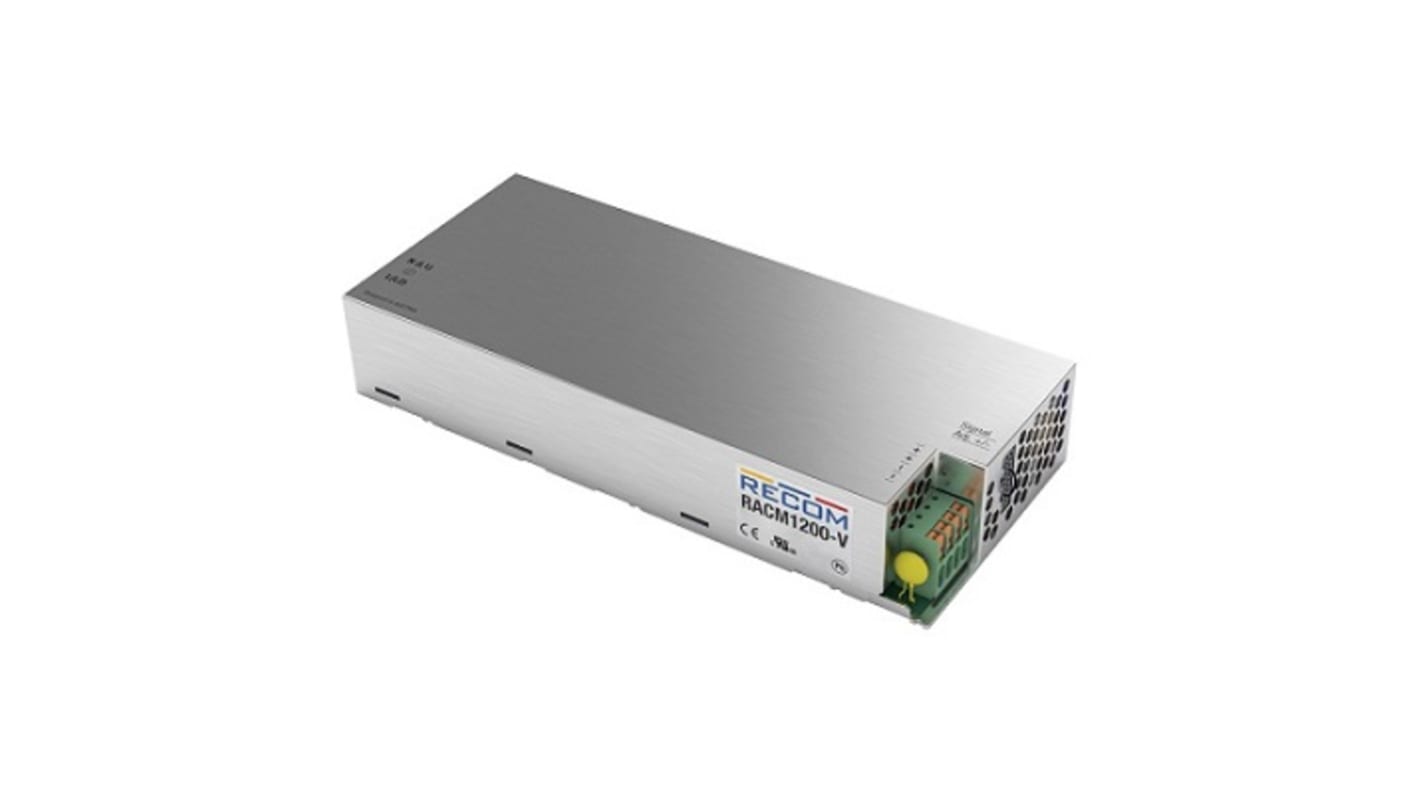

Recom, AC/DC Converter 50 A, 36 V, 24 V 20-Pin
- RS Stock No.:
- 249-8841
- Mfr. Part No.:
- RACM1200-36SAV/ENC
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£389.27
(exc. VAT)
£467.12
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2 unit(s) shipping from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £389.27 |
| 5 - 9 | £377.60 |
| 10 - 24 | £365.92 |
| 25 - 49 | £354.24 |
| 50 + | £342.56 |
*price indicative
- RS Stock No.:
- 249-8841
- Mfr. Part No.:
- RACM1200-36SAV/ENC
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 264V | |
| Maximum Output Voltage | 36V | |
| Output Power | 1000W | |
| Switching Frequency | 600kHz | |
| Pin Count | 20 | |
| Maximum Output Current | 50A | |
| Minimum Input Voltage | 80V | |
| Topology | Regulated | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 40mm | |
| Series | RACM1200-V | |
| Width | 96.2 mm | |
| Standards/Approvals | ErP, UL, CE, IEC, CAN/CSA, RoHS, EAC | |
| Length | 228mm | |
| Minimum Output Voltage | 24V | |
| Automotive Standard | No | |
| Supply Current | 14A | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 264V | ||
Maximum Output Voltage 36V | ||
Output Power 1000W | ||
Switching Frequency 600kHz | ||
Pin Count 20 | ||
Maximum Output Current 50A | ||
Minimum Input Voltage 80V | ||
Topology Regulated | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 40mm | ||
Series RACM1200-V | ||
Width 96.2 mm | ||
Standards/Approvals ErP, UL, CE, IEC, CAN/CSA, RoHS, EAC | ||
Length 228mm | ||
Minimum Output Voltage 24V | ||
Automotive Standard No | ||
Supply Current 14A | ||
RECOM AC-DC Converter, Aluminium Baseplate, 63Hz Operating Maximum - RACM1200-V Series - RACM1200-36SAV/ENC
Need a solution for regulating power in your electrical system? This AC-DC converter from RECOM keeps things running with a hiccup. It takes AC inputs between 80 and 264V and translates them into a rock-solid 36V DC output to keep your electronic applications moving. Thanks to its peak efficiency of 95%, it's an energy-saving choice. A cooling baseplate supports heat transfer, which means this device can deliver up to 1000W of power without the need for a fan. With sufficient airflow, the power output can be boosted to 1200W for up to 10 seconds if needed.
Features & Benefits
• IP20 rating indicates it's touch-proof, for safe handling during installation and maintenance
• Compact dimensions of 228 (L) x 96.2 (W) x 40mm (D), so it won't take up a lot of space in your setup
• Broad operating temperature between -40°C and +80°C for use in heavy-duty industrial or medical settings
Applications
• Industrial systems
• Manufacturing plants
• Medical equipment
What type of short-circuit protection does this product have?
This device's SCP features auto recovery to get your system up and running again in a jiffy.
