Recom, AC/DC Converter 28 A, 28V, 24 V dc 20-Pin, Enclosed RACM1200-24SAV/ENC/PMB
- RS Stock No.:
- 249-8838
- Mfr. Part No.:
- RACM1200-24SAV/ENC/PMB
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 1 unit)*
£424.83
(exc. VAT)
£509.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3 unit(s) shipping from 14 September 2026
- Plus 1 unit(s) shipping from 14 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
|---|---|
| 1 - 4 | £424.83 |
| 5 - 9 | £412.08 |
| 10 - 24 | £399.34 |
| 25 - 49 | £386.59 |
| 50 + | £373.85 |
*price indicative
- RS Stock No.:
- 249-8838
- Mfr. Part No.:
- RACM1200-24SAV/ENC/PMB
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 264V | |
| Maximum Output Voltage | 28V | |
| Mount Type | Surface | |
| Output Power | 1000W | |
| Pin Count | 20 | |
| Switching Frequency | 600kHz | |
| Maximum Output Current | 28A | |
| Package Type | Enclosed | |
| Minimum Input Voltage | 80V ac | |
| Topology | Regulated | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 96.2mm | |
| Series | RACM1200-V | |
| Length | 228mm | |
| Height | 40mm | |
| Standards/Approvals | ErP, CAN/CSA, CE, EAC, RoHS, IEC, UL | |
| Minimum Output Voltage | 24V dc | |
| Automotive Standard | No | |
| Supply Current | 14A | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 264V | ||
Maximum Output Voltage 28V | ||
Mount Type Surface | ||
Output Power 1000W | ||
Pin Count 20 | ||
Switching Frequency 600kHz | ||
Maximum Output Current 28A | ||
Package Type Enclosed | ||
Minimum Input Voltage 80V ac | ||
Topology Regulated | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 96.2mm | ||
Series RACM1200-V | ||
Length 228mm | ||
Height 40mm | ||
Standards/Approvals ErP, CAN/CSA, CE, EAC, RoHS, IEC, UL | ||
Minimum Output Voltage 24V dc | ||
Automotive Standard No | ||
Supply Current 14A | ||
- COO (Country of Origin):
- HU

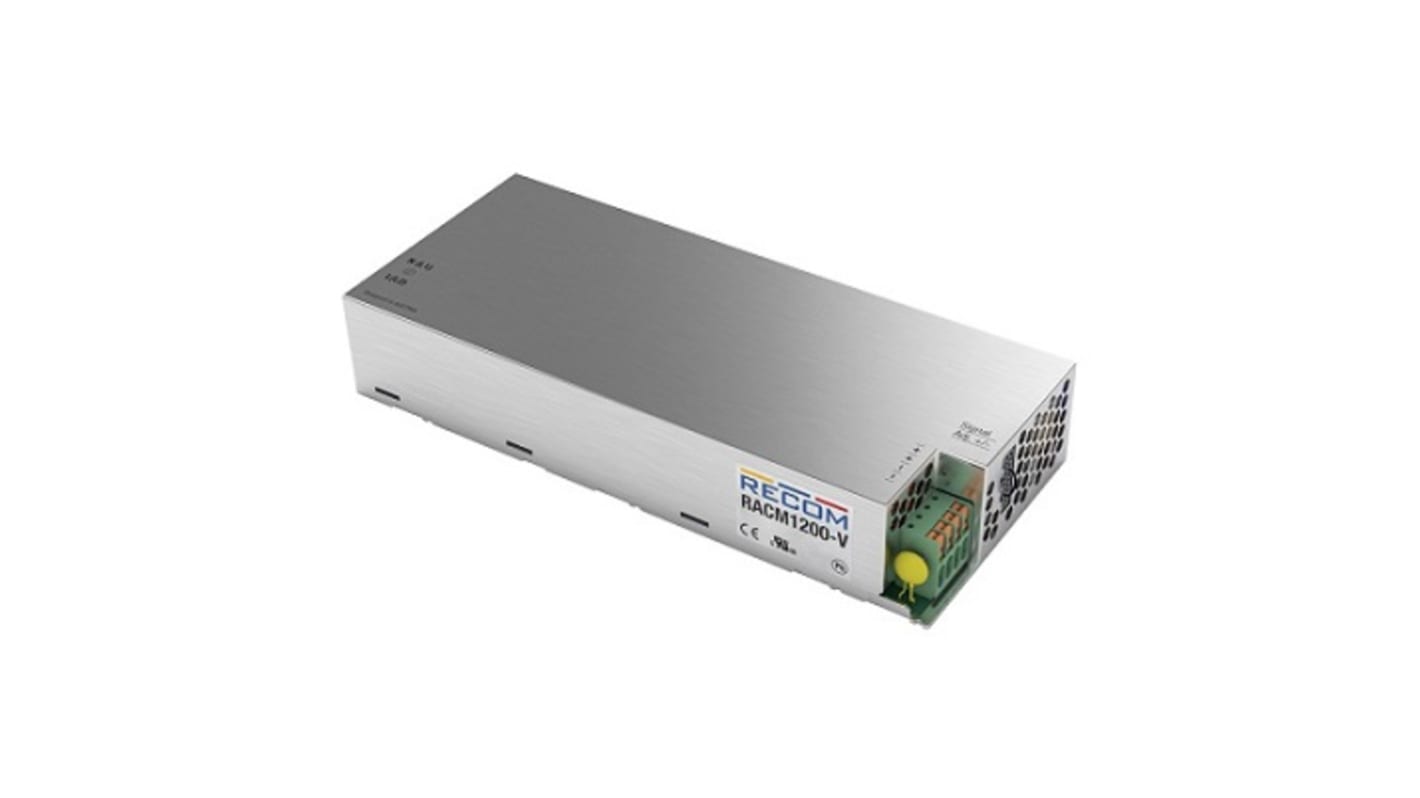

RECOM AC-DC Converter, Enclosed Case Style, 50A Current Limit - RACM1200-V Series - RACM1200-24SAV/ENC/PMB
Stay on top of the power in your system with this AC-DC converter from RECOM. It takes inputs between 80 and 264V AC and delivers a reliable 24V DC output that won't let you down. With dimensions of 228 (L) x 96.2 (W) x 40.0mm (D), it's compact enough to fit easily into busy setups. The cooling baseplate dissipates heat, enabling the unit to supply up to 1000W of continuous power with no fan required. Built-in protection against short circuits, overvoltage and overload means you can rest easy knowing your equipment is protected from surge damage.
Features & Benefits
• Wide operating temperature range between -40°C and +80°C for use in extreme settings
• High 95% efficiency, so it's an energy-conscious choice
• Can be conveniently mounted in any position without loss of output power
Applications
• Medical equipment
• Commercial lighting systems
• Processing plants
What do the LED warning lights mean?
Red, blue and green LEDs display the converter's status at a glance. An alternating red/green light indicates an over-temperature warning, while red/blue means the unit is in overload protection mode.
