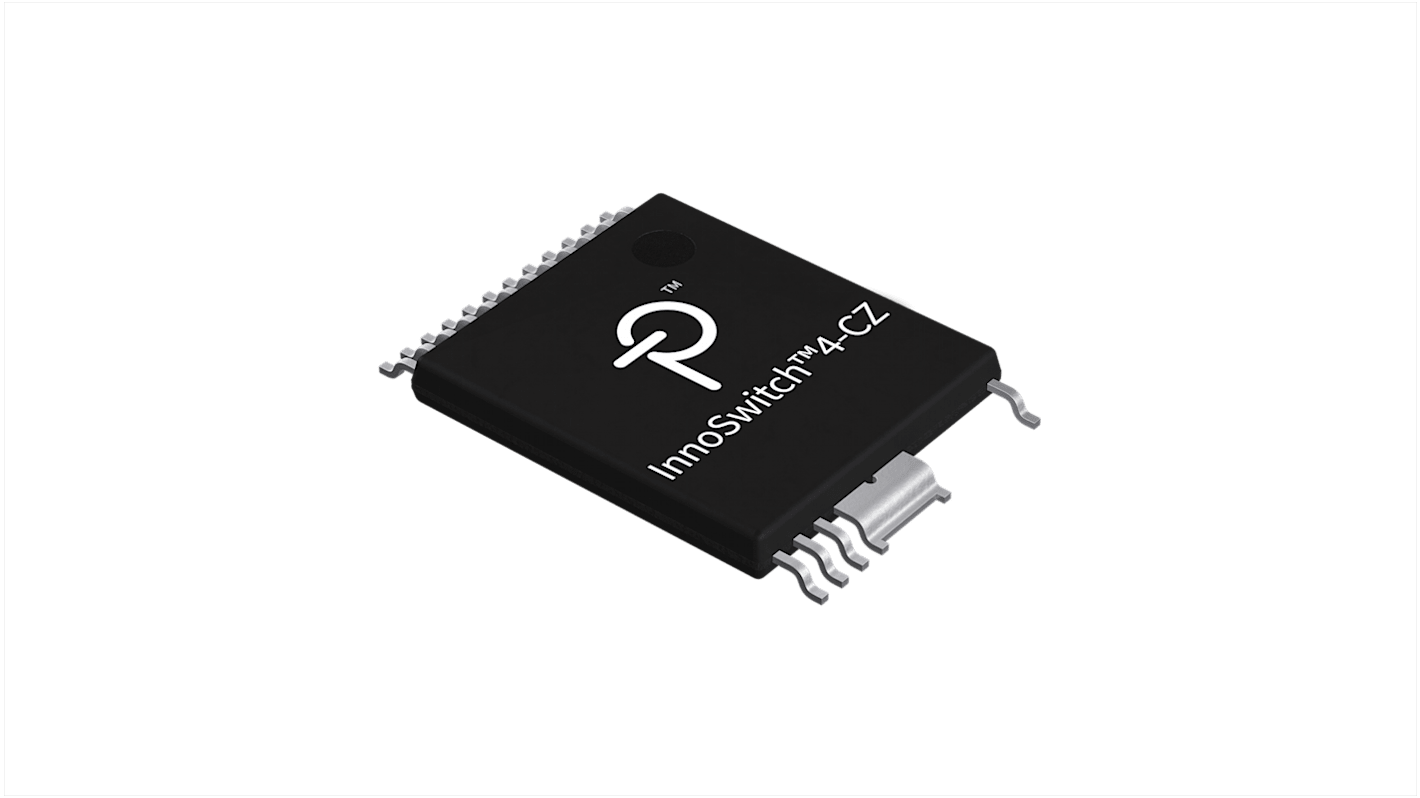

Power Integrations, High Voltage Switcher 10A 24-Pin, InSOP-24D INN4074C-H181-TL

View all AC-DC Converters
Bulk discount available

Subtotal (1 pack of 2 units)*

£6.95

(exc. VAT)

£8.34

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,990 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 8£3.475£6.95
10 - 98£3.185£6.37
100 - 248£2.935£5.87
250 - 498£2.73£5.46
500 +£2.65£5.30

*price indicative

Packaging Options:
RS Stock No.:
228-6338
Mfr. Part No.:
INN4074C-H181-TL
Brand:
Power Integrations
Find similar products by selecting one or more attributes.
Select all

Brand

Power Integrations

Mounting Type

Surface Mount

Pin Count

24

Maximum Output Current

10A

Dimensions

10.80 x 1.32 x 9.40mm

Package Type

InSOP-24D

Current Limit

2.1A

The Power Integration InnoSwitch4-CZ series of ICs partners with the Clamp Zero family of active clamp ICs to dramatically improve the efficiency of flyback power converters, particularly those requiring a compact form-factor. It incorporates primary and secondary controllers and safety-rated feedback into a single IC. It also incorporates multiple protection features including output overvoltage and over-current limiting, and over-temperature shutdown.

Zero voltage switching flyback controller with driver for clamp zero
Steady-state switching frequency up to 140 kHz minimizes transformer size
Synchronous rectification driver and secondary-side sensing
Adjustable accurate output current sense using external sense resistor
