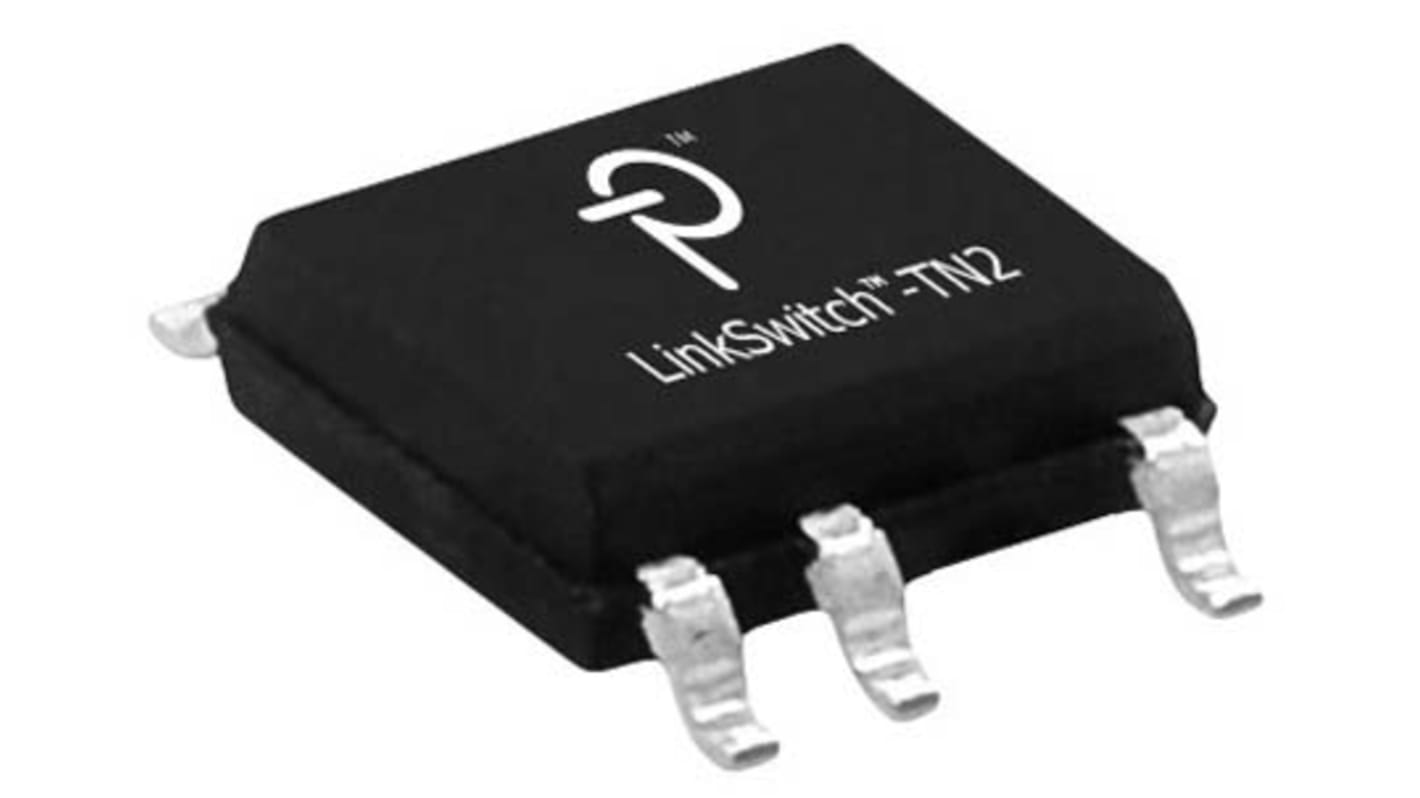

Power Integrations, AC/DC Converter 80 mA, 50 V, 50 V 8-Pin, SOIC LNK3202D-TL
- RS Stock No.:
- 146-4592
- Mfr. Part No.:
- LNK3202D-TL
- Brand:
- Power Integrations
Subtotal (1 pack of 25 units)*
£14.45
(exc. VAT)
£17.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10,375 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 + | £0.578 | £14.45 |
*price indicative
- RS Stock No.:
- 146-4592
- Mfr. Part No.:
- LNK3202D-TL
- Brand:
- Power Integrations
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Power Integrations | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 265V ac | |
| Maximum Output Voltage | 50V | |
| Mount Type | Surface | |
| Output Power | 1.44W | |
| Pin Count | 8 | |
| Switching Frequency | 66kHz | |
| Maximum Output Current | 80mA | |
| Package Type | SOIC | |
| Minimum Input Voltage | 85V ac | |
| Topology | Flyback | |
| Maximum Duty Cycle | 69% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 4.9mm | |
| Standards/Approvals | RoHS | |
| Height | 1.65mm | |
| Series | LinkSwitch-TN2 | |
| Supply Current | 141μA | |
| Minimum Output Current | 63mA | |
| Automotive Standard | No | |
| Minimum Output Voltage | 50V | |
| Select all | ||
|---|---|---|
Brand Power Integrations | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 265V ac | ||
Maximum Output Voltage 50V | ||
Mount Type Surface | ||
Output Power 1.44W | ||
Pin Count 8 | ||
Switching Frequency 66kHz | ||
Maximum Output Current 80mA | ||
Package Type SOIC | ||
Minimum Input Voltage 85V ac | ||
Topology Flyback | ||
Maximum Duty Cycle 69% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Length 4.9mm | ||
Standards/Approvals RoHS | ||
Height 1.65mm | ||
Series LinkSwitch-TN2 | ||
Supply Current 141μA | ||
Minimum Output Current 63mA | ||
Automotive Standard No | ||
Minimum Output Voltage 50V | ||
Supports buck, buck-boost and flyback topologiesLow component-count buck converter. Selectable device current limitHigh current limit extends Peak power and maximizes continuous output power. Low current limit allows the use of lowest-cost surface mount buck chokes 66 kHz operation with accurate current limit. Allows the use of low-cost off-the-shelf inductors. Reduces size and cost of magnetics and output capacitor.
Low component-count buck converter
Excellent load and line regulation
Selectable device current limit
66 kHz operation with accurate current limit
Allows the use of low-cost off-the-shelf inductors
Reduces size and cost of magnetics and output capacitor
Frequency jittering reduces EMI filter complexity
Pin-out simplifies PCB heat sinking
Auto-restart for short-circuit and open loop faults
Limits power delivery to 3% of maximum during a fault
