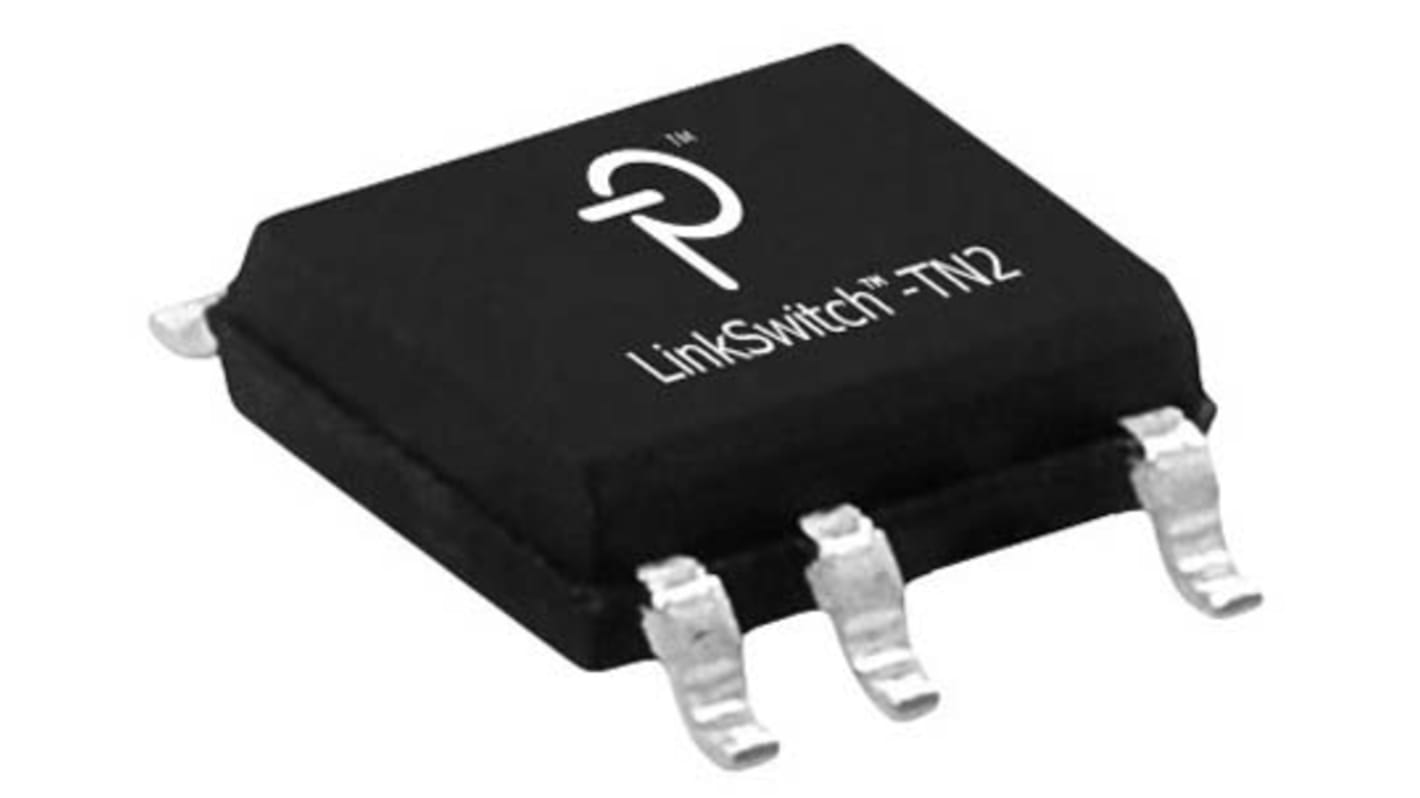

Power Integrations, AC-DC Converter 120 (MDCM) mA, 170 (CCM) mA, Minimum of 50 V 7-Pin, SMD LNK3204G-TL
- RS Stock No.:
- 146-4579
- Mfr. Part No.:
- LNK3204G-TL
- Brand:
- Power Integrations
3650 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 25)
£0.60
(exc. VAT)
£0.72
(inc. VAT)
Units | Per unit | Per Pack* |
25 - 25 | £0.60 | £15.00 |
50 - 75 | £0.55 | £13.75 |
100 + | £0.508 | £12.70 |
*price indicative |
- RS Stock No.:
- 146-4579
- Mfr. Part No.:
- LNK3204G-TL
- Brand:
- Power Integrations
Legislation and Compliance
Product Details
Supports buck, buck-boost and flyback topologiesLow component-count buck converter. Selectable device current limitHigh current limit extends peak power and maximizes continuous output power. Low current limit allows the use of lowest-cost surface mount buck chokes 66 kHz operation with accurate current limit. Allows the use of low-cost off-the-shelf inductors. Reduces size and cost of magnetics and output capacitor.
Low component-count buck converter
Excellent load and line regulation
Selectable device current limit
66 kHz operation with accurate current limit
Allows the use of low-cost off-the-shelf inductors
Reduces size and cost of magnetics and output capacitor
Frequency jittering reduces EMI filter complexity
Pin-out simplifies PCB heat sinking
Auto-restart for short-circuit and open loop faults
Limits power delivery to 3% of maximum during a fault
Excellent load and line regulation
Selectable device current limit
66 kHz operation with accurate current limit
Allows the use of low-cost off-the-shelf inductors
Reduces size and cost of magnetics and output capacitor
Frequency jittering reduces EMI filter complexity
Pin-out simplifies PCB heat sinking
Auto-restart for short-circuit and open loop faults
Limits power delivery to 3% of maximum during a fault
Specifications
Attribute | Value |
---|---|
Maximum Input Voltage | 265 V ac |
Mounting Type | Surface Mount |
Pin Count | 7 |
Dimensions | 9.83 x 6.6 x 3.68mm |
Maximum Output Current | 120 (MDCM) mA, 170 (CCM) mA |
Package Type | SMD |
Input Voltage Range | 85 → 265 V ac |
Current Limit | 289 (Reduced) mA, 356 (Standard) mA |
Minimum Input Voltage | 85 V ac |
Maximum Operating Temperature | +150 °C |
Length | 9.83mm |
Width | 6.6mm |
Height | 3.68mm |
Minimum Operating Temperature | -40 °C |
Output Voltage Range | Minimum of 50 V |
Output Current Range | Maximum of 120 (MDCM) mA, Maximum of 170 (CCM) mA |
Minimum Output Voltage | 50 V |
Typical Operating Supply Voltage | 230 V ac |
Operating Temperature Range | -40 → +150 °C |
