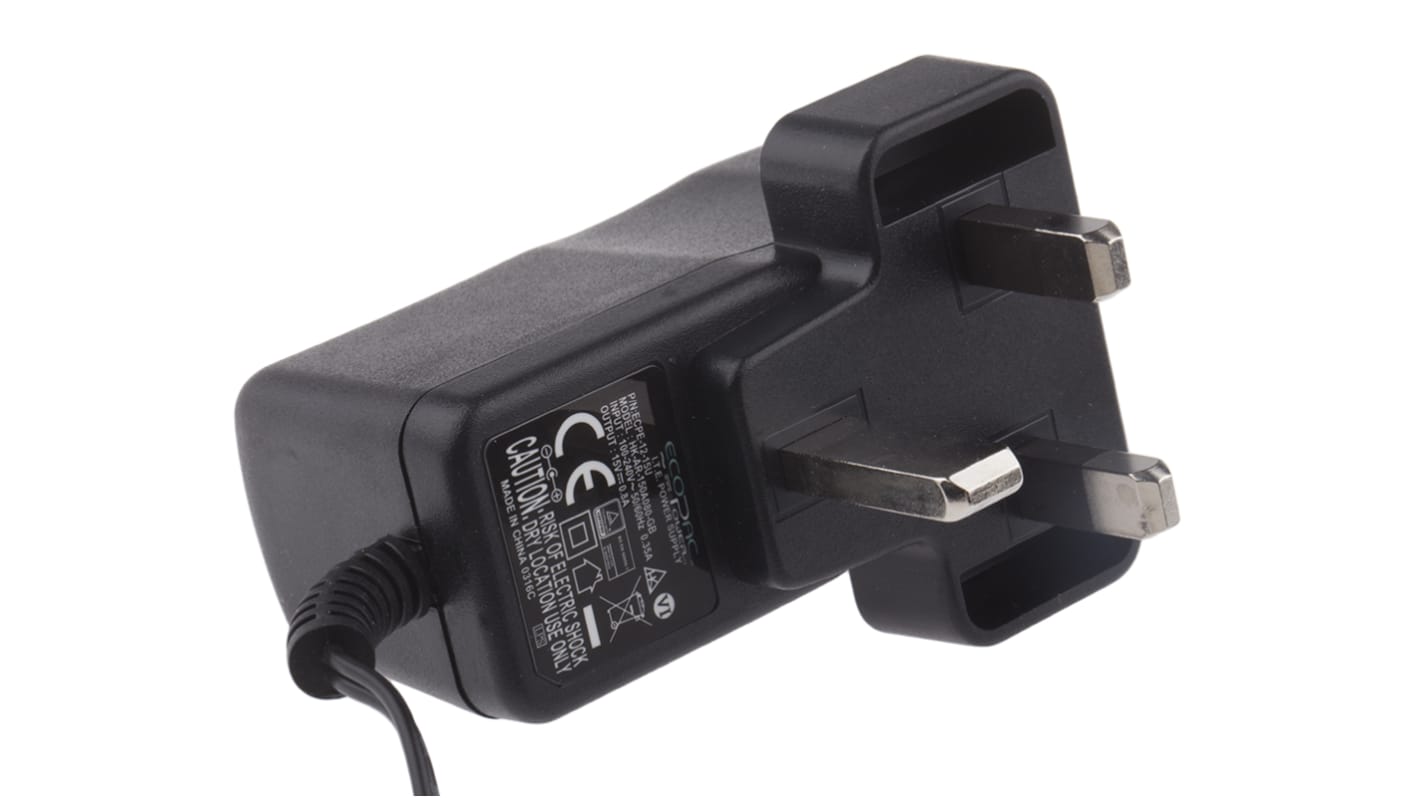

RS PRO 12W Plug In Power Supply 15V dc Output, 0 → 800mA Output
- RS Stock No.:
- 903-7042
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£10.07
(exc. VAT)
£12.08
(inc. VAT)
- RS Stock No.:
- 903-7042
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Plug Type | UK | |
| Output Voltage | 15V dc | |
| Input Voltage | 90 → 264V ac | |
| Output Current | 0 → 800mA | |
| Maximum Temperature | +40°C | |
| Output Connector | 2.1 x 5.5 x 11 mm Centre Positive | |
| Input Connector | UK Plugtop | |
| Number of Outputs | 1 | |
| Power Rating | 12W | |
| Cable Length | 1.83m | |
| Standards Met | CE, EN 55022 Class B, EN 61000-11, EN 61000-2, EN 61000-3, EN 61000-3-2, EN 61000-3-3, EN 61000-4, EN 61000-6, EN 61000-8, TUV EN 60950-1, UL 60950-1 | |
| MTBF | 1yr | |
| Efficiency | 82% | |
| Minimum Temperature | 0°C | |
| Type | Switched Mode Power Supply | |
| Length | 46mm | |
| Series | ECPE-12 UK | |
| Depth | 61mm | |
| Width | 72mm | |
| Energy Efficiency Level | VI | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Plug Type UK | ||
Output Voltage 15V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 0 → 800mA | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 x 11 mm Centre Positive | ||
Input Connector UK Plugtop | ||
Number of Outputs 1 | ||
Power Rating 12W | ||
Cable Length 1.83m | ||
Standards Met CE, EN 55022 Class B, EN 61000-11, EN 61000-2, EN 61000-3, EN 61000-3-2, EN 61000-3-3, EN 61000-4, EN 61000-6, EN 61000-8, TUV EN 60950-1, UL 60950-1 | ||
MTBF 1yr | ||
Efficiency 82% | ||
Minimum Temperature 0°C | ||
Type Switched Mode Power Supply | ||
Length 46mm | ||
Series ECPE-12 UK | ||
Depth 61mm | ||
Width 72mm | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN
RS Plug-In Switch Mode Power Supply - ECPE UK Series
Reliable & robust range of RS Pro plug-in power supplies suitable for a wide variety of applications. Comes complete with automatic short circuit & overload protection and recovery to ensure a safe installation. Can be easily used in a static or mobile application thanks to a lightweight & durable compact casing.
Class II rated range of power supplies
UL60950-1 & TUV EN60950-1 approved
Complies with EN55022 Class B & EN61000-3-2, 3
UL60950-1 & TUV EN60950-1 approved
Complies with EN55022 Class B & EN61000-3-2, 3
Note
European Variants of this range are also available, please see stock number 903-6991 typical.
