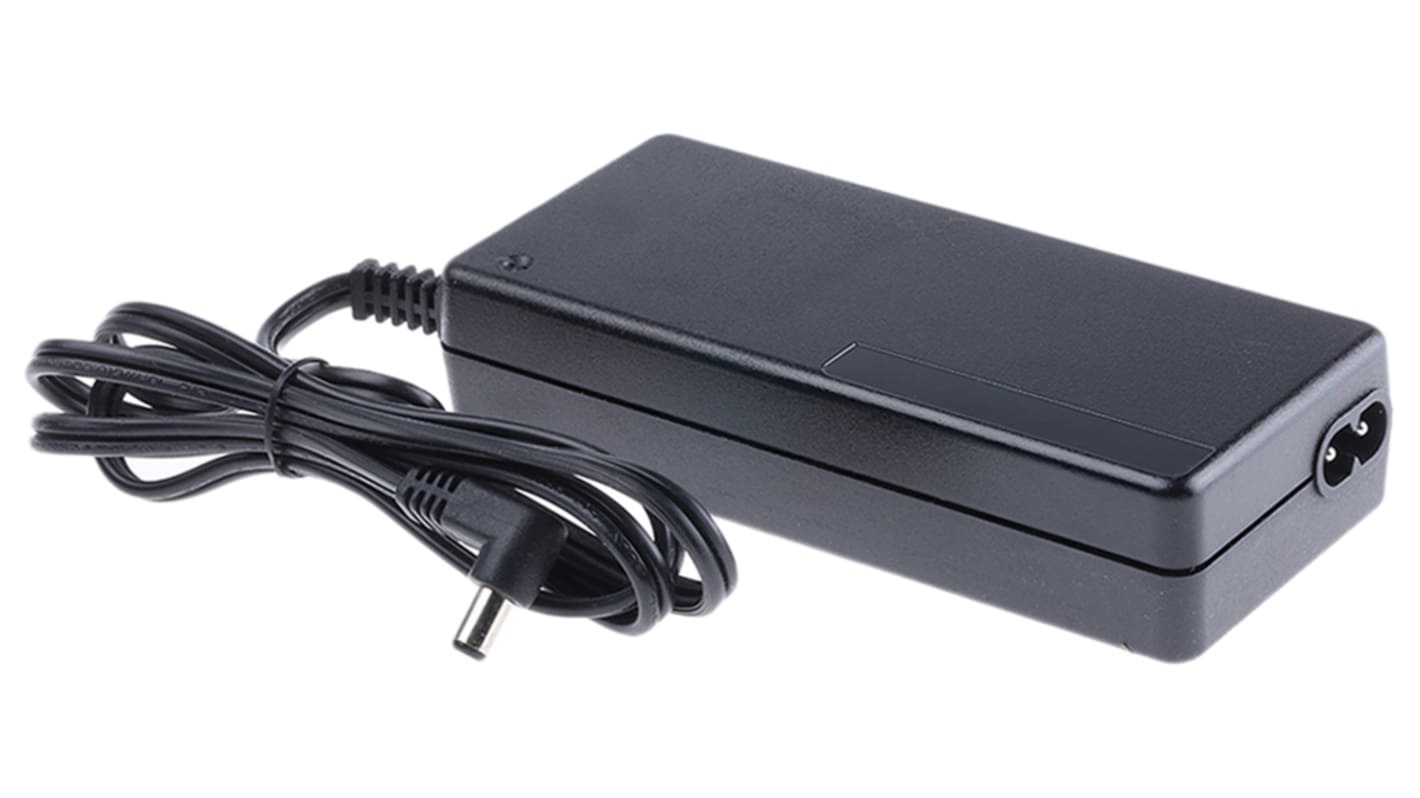

EOS Right Angle Plug Power Adapter AC/DC Adapter 65 W 19V dc Output, 3.42 A
- RS Stock No.:
- 764-6791
- Mfr. Part No.:
- LFEVC65NS19E
- Brand:
- EOS
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£51.98
(exc. VAT)
£62.38
(inc. VAT)
FREE delivery for orders over £60.00
Being discontinued
- Final 13 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £51.98 |
| 5 - 9 | £50.43 |
| 10 - 24 | £48.86 |
| 25 - 49 | £47.31 |
| 50 + | £45.74 |
*price indicative
- RS Stock No.:
- 764-6791
- Mfr. Part No.:
- LFEVC65NS19E
- Brand:
- EOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EOS | |
| Sub Type | Power Adapter | |
| Product Type | AC/DC Adapter | |
| Output Voltage | 19V dc | |
| Power | 65W | |
| Output Connector Type | Right Angle Plug | |
| Cable Length | 1016mm | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Input Connector Type | IEC 320-C8 | |
| Adapter Current | 3.42A | |
| Maximum Operating Temperature | 40°C | |
| Depth | 29.2mm | |
| Width | 58mm | |
| Length | 133mm | |
| Standards/Approvals | CSA C22.2 No. 60950, UL 60950, IEC 60950, EN 60950 | |
| Efficiency | 88% | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 264V ac | |
| Load Regulation | -5 %, 2 % | |
| Series | LFEVC65 | |
| Energy Efficiency Level | V | |
| Select all | ||
|---|---|---|
Brand EOS | ||
Sub Type Power Adapter | ||
Product Type AC/DC Adapter | ||
Output Voltage 19V dc | ||
Power 65W | ||
Output Connector Type Right Angle Plug | ||
Cable Length 1016mm | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Input Connector Type IEC 320-C8 | ||
Adapter Current 3.42A | ||
Maximum Operating Temperature 40°C | ||
Depth 29.2mm | ||
Width 58mm | ||
Length 133mm | ||
Standards/Approvals CSA C22.2 No. 60950, UL 60950, IEC 60950, EN 60950 | ||
Efficiency 88% | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 264V ac | ||
Load Regulation -5 %, 2 % | ||
Series LFEVC65 | ||
Energy Efficiency Level V | ||
- COO (Country of Origin):
- IN
EOS 25W to 65W Single Output Switch Mode Desktop Power Supply - EVC Series
The EVC65 series is a 25 to 65W High Efficiency ErP Level V adapter product, offering high specifications and features in a small package size. A switch mode single output desktop power supply with universal input and compact design. This energy saving desktop power supply is ideal for laptops and multimedia, industrial, networking and printing applications.
Small and lightweight switch mode power supply
Efficiency up to 87%
Universal input
No load standby power < 0.5W
ErP Level V
EN55022-B, FCC Part 15 Level B Noise safety approvals
Class 2 Product
Standards
EN60950, IEC60950, CSA C22.2 No. 60950, UL60950 (NRTL)
