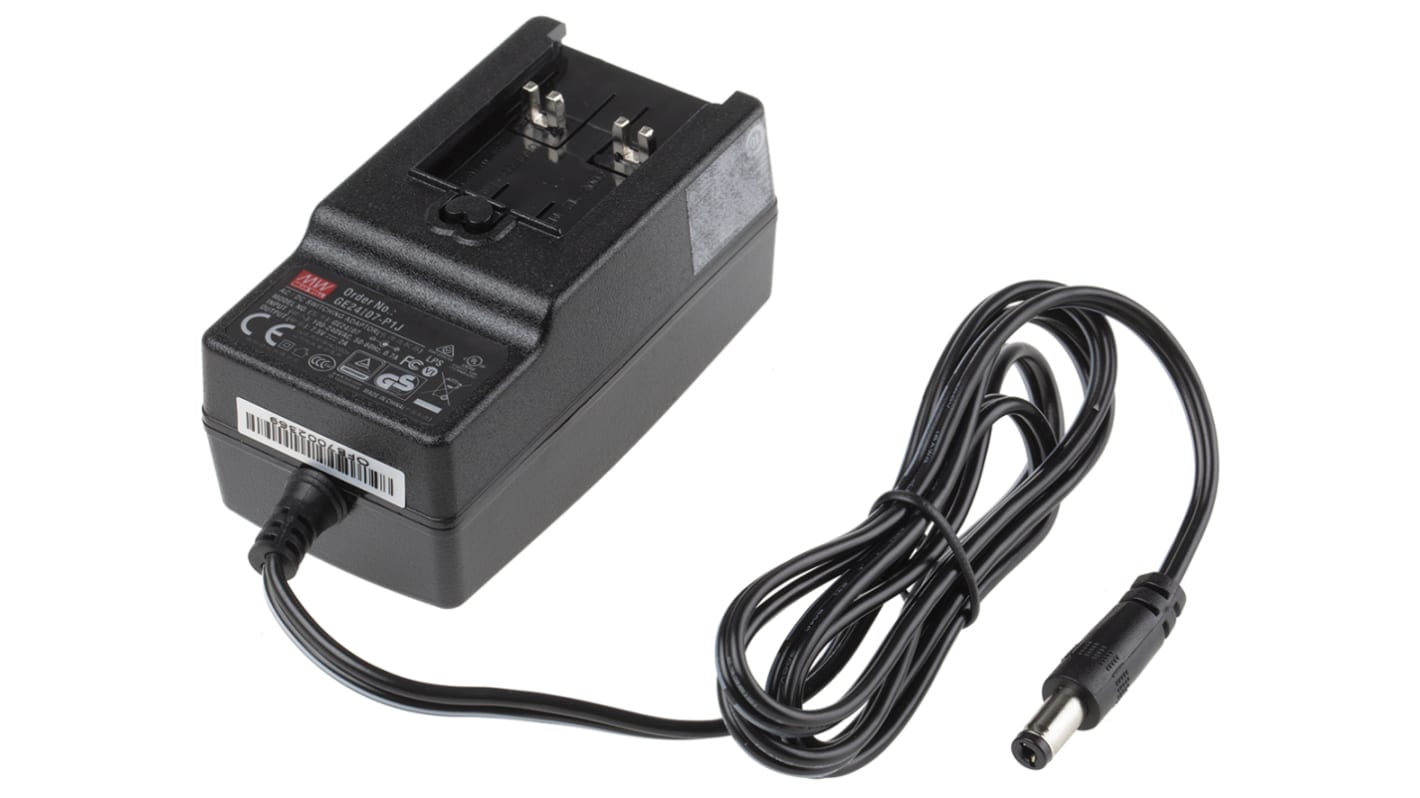

MEAN WELL 15W Plug-In AC/DC Adapter 7.5V dc Output, 2A Output
- RS Stock No.:
- 706-6505
- Mfr. Part No.:
- GE24I07-P1J
- Brand:
- MEAN WELL
2 In stock - FREE next working day delivery available
Added
Price Each
£31.72
(exc. VAT)
£38.06
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £31.72 |
| 5 - 9 | £30.77 |
| 10 - 24 | £29.82 |
| 25 - 49 | £28.86 |
| 50 + | £27.91 |
- RS Stock No.:
- 706-6505
- Mfr. Part No.:
- GE24I07-P1J
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
ErP Plug-In Travel Power Supply, Energy Saving, 10W to 24W
Plugs Not Included
Compatible plugs are:
• UK (1783436),
• Euro (1783437),
• US (1783438),
• Australian (1783435)
• Mixed plugs (1783439)
Features and Benefits
• Energy saving power supplies
• ErP level VI
• No load power consumption< 0.3W
• Meets EISA 2007 (Energy Independence and Security Act) for 5∼24V
• Class II power (without earth pin)
• Overload, overvoltage and short circuit protection
• LED power on indicator
• Output lead fitted with a centre positive 2.1mm jack plug
• EMC compliance to FCC part 15, EN55022 class B, GB9254 class B
• Harmonic compliance to EN 61000-3-2,3
Compatible plugs are:
• UK (1783436),
• Euro (1783437),
• US (1783438),
• Australian (1783435)
• Mixed plugs (1783439)
Features and Benefits
• Energy saving power supplies
• ErP level VI
• No load power consumption< 0.3W
• Meets EISA 2007 (Energy Independence and Security Act) for 5∼24V
• Class II power (without earth pin)
• Overload, overvoltage and short circuit protection
• LED power on indicator
• Output lead fitted with a centre positive 2.1mm jack plug
• EMC compliance to FCC part 15, EN55022 class B, GB9254 class B
• Harmonic compliance to EN 61000-3-2,3
Note
Conforms to Energy-related Product Directive 2009/125/EC.
Power derates above 30°C.
MTBF to MIL-HDBK-217F.
Power derates above 30°C.
MTBF to MIL-HDBK-217F.
Standards
UL60950-1, CSA C22.2, TUV EN60950 -1, CCC GB4943
Approvals
TUV, CCC, UL recognised for Canada & US, C-Tick
Switch Mode - Mean Well
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Australia/China, European Plug, UK, US/Japan |
| Output Voltage | 7.5V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 2A |
| Maximum Temperature | +50°C |
| Output Connector | 2.1 x 5.5 x 11 mm Centre Positive |
| Input Connector | Universal Plug |
| Number of Outputs | 1 |
| Power Rating | 15W |
| Cable Length | 1m |
| MTBF | 100000h |
| Standards Met | ErP Compliant |
| Minimum Temperature | -10°C |
| Depth | 40.5mm |
| Width | 43mm |
| Load Regulation | ±5% |
| Length | 81mm |
| Type | AC/DC Adapter |
| Energy Efficiency Level | VI |
