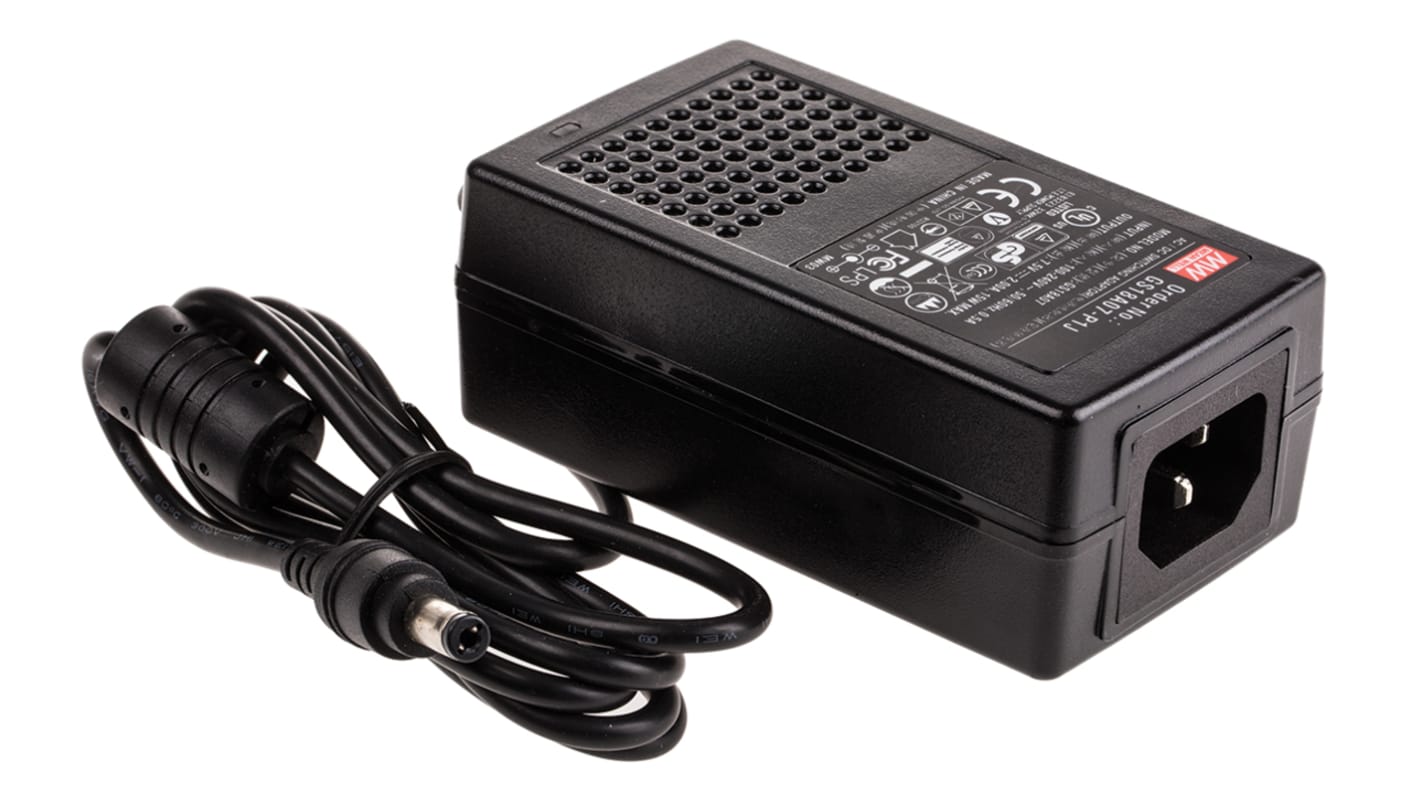

MEAN WELL AC/DC Adapter 7.5V dc Output
- RS Stock No.:
- 667-5495
- Mfr. Part No.:
- GS18A07-P1J
- Brand:
- MEAN WELL
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£14.54
(exc. VAT)
£17.45
(inc. VAT)
- RS Stock No.:
- 667-5495
- Mfr. Part No.:
- GS18A07-P1J
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | AC/DC Adapter | |
| Output Voltage | 7.5V dc | |
| Output Connector Type | P1J | |
| Cable Length | 1830mm | |
| Number of Outputs | 1 | |
| Maximum Operating Temperature | 0°C | |
| Length | 93mm | |
| Depth | 36mm | |
| Width | 54mm | |
| Standards/Approvals | ErP Compliant | |
| Efficiency | 79% | |
| Load Regulation | ±5 % | |
| Energy Efficiency Level | V | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type AC/DC Adapter | ||
Output Voltage 7.5V dc | ||
Output Connector Type P1J | ||
Cable Length 1830mm | ||
Number of Outputs 1 | ||
Maximum Operating Temperature 0°C | ||
Length 93mm | ||
Depth 36mm | ||
Width 54mm | ||
Standards/Approvals ErP Compliant | ||
Efficiency 79% | ||
Load Regulation ±5 % | ||
Energy Efficiency Level V | ||
- COO (Country of Origin):
- CN
Meanwell 15W to 90W ErP Single Output Switch Mode Desktop Power Supply - GS Series
15 to 90W energy saving, ErP compliant, switch mode, single output desktop power supply with universal, full range AC input and an IEC C14 input socket. This switch mode, single output desktop power supply is fully enclosed in a plastic case, has short circuit, overload and voltage protection and LED indication for power on. This range of switch mode single output desktop power supplies includes versions that are suitable for use as either a laptop power supply, netbook power supply or notebook power supply.
Energy saving, class 1, switch mode, desktop power supply
High efficiency, long life and high reliability
ErP compliant
No load power consumption of <0.5W
Meets EISA 2007 (Energy Independence and Security Act)
Short circuit, over load and over voltage protection
3-pin IEC320, C14 input socket. For suitable input leads see stk nos. 426-373 (UK 3-pin plug) or 305-784 (Schuko plug) typically
Approximately 1m output lead fitted with a centre positive jack plug
EMC compliance to FCC part 15, EN55022 class B
Harmonic compliance to EN 61000-3-2,3
Note
Conforms to Energy-related Product Directive 2009/125/EC.
MTBF to MIL-HDBK-217F.
MTBF to MIL-HDBK-217F.
Approvals
UL/cUL recognised, TUV, CB
Standards
UL60950-1, TUV EN60950-1
