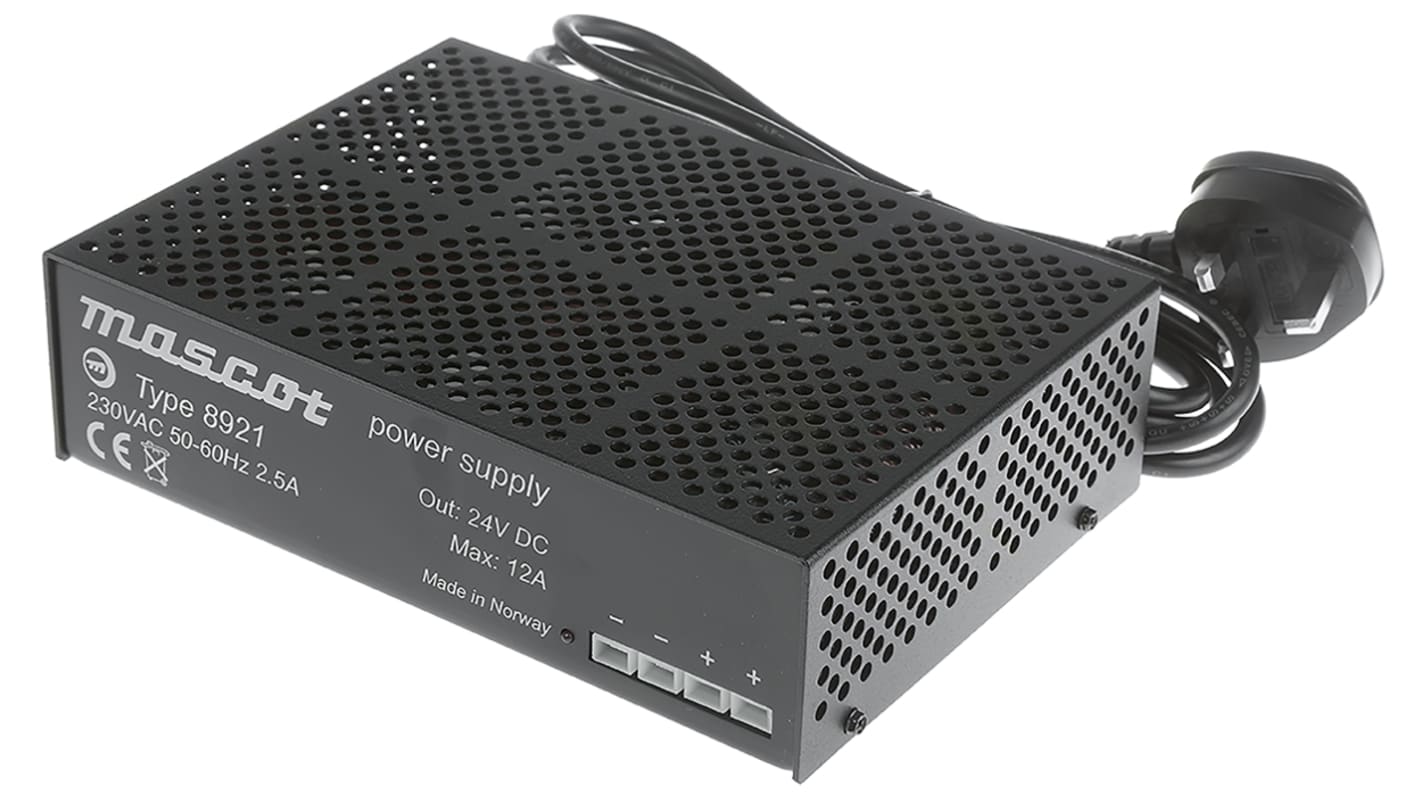

Mascot 270W Power Brick AC/DC Adapter 24V dc Output, 12A Output
- RS Stock No.:
- 397-9921
- Mfr. Part No.:
- 8921000066
- Brand:
- Mascot
Bulk discount available
Subtotal (1 unit)*
£245.14
(exc. VAT)
£294.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 3 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £245.14 |
| 5 - 9 | £237.79 |
| 10 - 24 | £230.43 |
| 25 - 49 | £223.07 |
| 50 + | £215.71 |
*price indicative
- RS Stock No.:
- 397-9921
- Mfr. Part No.:
- 8921000066
- Brand:
- Mascot
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mascot | |
| Adapter Type | Power Brick Adapter | |
| Plug Type | 3-Pin UK | |
| Output Voltage | 24V dc | |
| Input Voltage | 230V ac | |
| Output Current | 12A | |
| Maximum Temperature | +30°C | |
| Output Connector | 6.3 mm Push-on Terminal | |
| Number of Outputs | 1 | |
| Power Rating | 270W | |
| Efficiency | 86% | |
| Width | 148mm | |
| Depth | 58mm | |
| Minimum Temperature | -10°C | |
| Load Regulation | ±0.15% | |
| Length | 210mm | |
| Line Regulation Range | ±0.05% | |
Select all | ||
|---|---|---|
Brand Mascot | ||
Adapter Type Power Brick Adapter | ||
Plug Type 3-Pin UK | ||
Output Voltage 24V dc | ||
Input Voltage 230V ac | ||
Output Current 12A | ||
Maximum Temperature +30°C | ||
Output Connector 6.3 mm Push-on Terminal | ||
Number of Outputs 1 | ||
Power Rating 270W | ||
Efficiency 86% | ||
Width 148mm | ||
Depth 58mm | ||
Minimum Temperature -10°C | ||
Load Regulation ±0.15% | ||
Length 210mm | ||
Line Regulation Range ±0.05% | ||
- COO (Country of Origin):
- NO
Mascot 46W to 290W Single Output Switch Mode Desktop Power Supply
Switch mode power supplies with regulated outputs in fixed, and multi-output voltage options. Suitable for powering a wide range of portable, desk top or fixed equipment including communications, point of sale, test and measurement, instrumentation computing and office equipment. The units are fully enclosed in a metal case and incorporate an LED power indicator on the front panel. All units are CE marked and manufactured in accordance with EN60950.
Output protected against short-circuit and over-voltage
Double-insulated or Safety Earthed as appropriate
Mounting brackets available separately, see accessory link
Double-insulated or Safety Earthed as appropriate
Mounting brackets available separately, see accessory link
Note
Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Not suitable for use as battery chargers.
Not suitable for use as battery chargers.
Standards
EN60601-1
Approvals
UL (9726 models only)
