RS PRO 40W Plug-In AC/DC Adapter 24V dc Output, 1.66A Output
- RS Stock No.:
- 251-9228
- Brand:
- RS PRO
32 In stock - FREE next working day delivery available
7 available from Europe for delivery within 1 working day(s).
Added
Price Each
£24.49
(exc. VAT)
£29.39
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £24.49 |
| 5 - 9 | £23.76 |
| 10 - 24 | £23.02 |
| 25 - 49 | £22.29 |
| 50 + | £21.55 |
- RS Stock No.:
- 251-9228
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

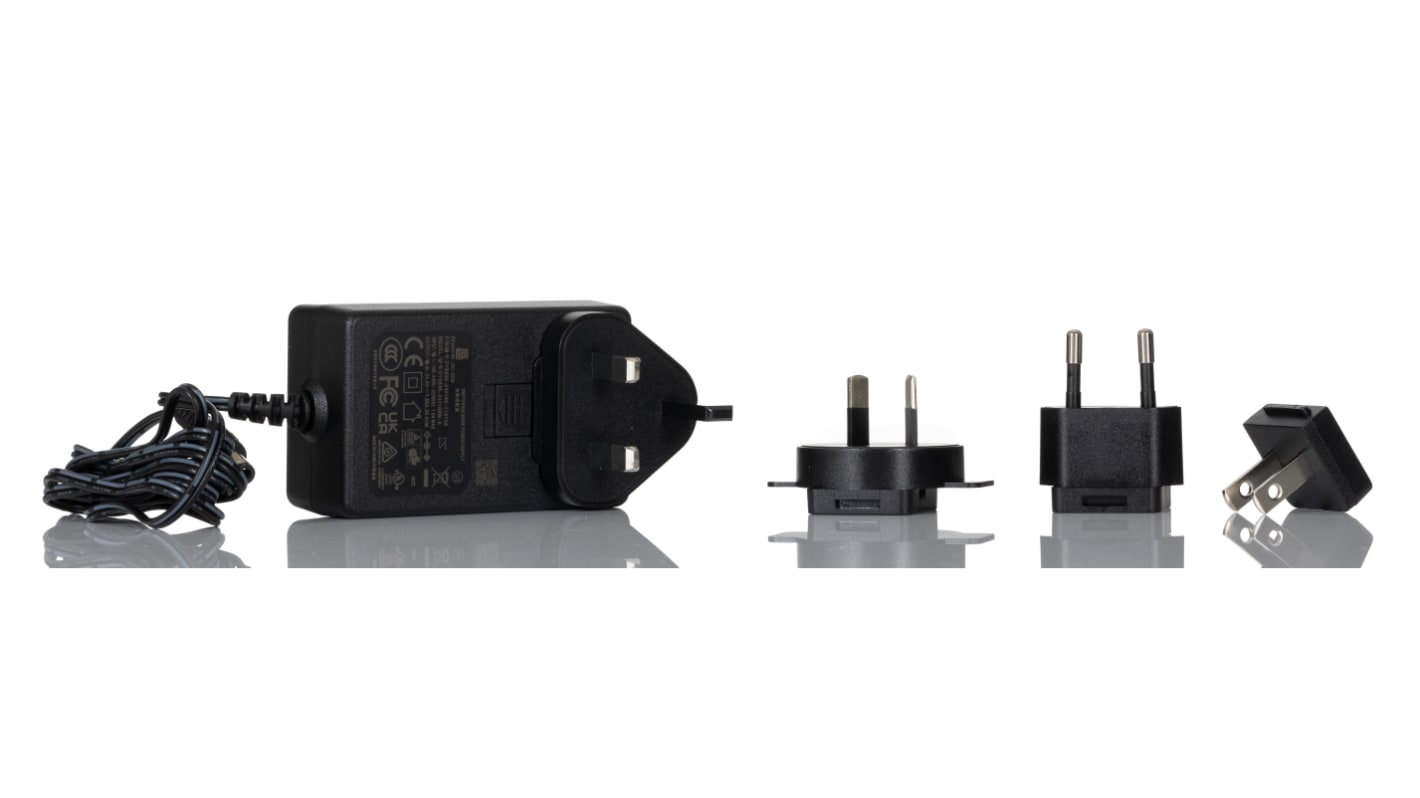

RS PRO 40W AC/DC Interchangeable Adaptor Plug with 2.5 x 5.5mm Barrel Plug Output
A hardwearing and high performing AC/DC adaptor plug fitted with a 2.5 x 5.5mm Barrel Plug on one end and an interchangeable plug on the other.
Supplied with 4 interchangeable plug adaptors for UK, European, US and Australian plug types.
The RS PRO 24V DC power supply unit meets Efficiency Level VI rating and features Short Circuit, Over Voltage, Over Current and Over Temperature Protection creating a highly efficient and reliable AC/DC adaptor
The AC/DC power supply unit is suitable for use in a wide range of applications and its compact size makes it perfect to keep in your bag or suitcase when travelling on business or on holiday.
Features and Benefits
- UK, Euro, UK and AUS plug types
- 2.5 x 5.5mm Barrel Plug
- 1.5m cable with strain relief
- High-efficiency rating (VI)
- Over voltage, current and temperature protection
- Short circuit protection
Approvals and Standards: TUV, CE, cULus, RCM (C-Tick), RoHS, REACH, EN 62368-1/IEC 62368-1, EU 2019/1782 compliant, Level VI Efficiency Regulations, EMC FCC Class B Certified
What is a Plug-in AC-DC Adapter?
Plug in AC-DC adapters are also known as AC Adaptors or AC-DC converters and are a type of external power supply. Some electrical appliances require power but lack the internal components to derive the required voltage and power from mains power. This is where an AC adapter is used to convert the AC current into DC voltage.
Why RS PRO?
Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Australia, European, UK, US |
| Output Voltage | 24V dc |
| Input Voltage | 100 → 240V ac |
| Output Current | 1.66A |
| Maximum Temperature | +40°C |
| Output Connector | 2.5 x 5.5 |
| Input Connector | 2 Pin |
| Number of Outputs | 1 |
| Power Rating | 40W |
| Regulated/Unregulated | Regulated |
| Cable Length | 1.5m |
| Medical Approved | No |
| Efficiency | 87.58% |
| MTBF | 50000h |
| Load Regulation | ±5% |
| Length | 84.5mm |
| Minimum Temperature | 0°C |
| Type | Interchangeable AC-DC Power Adapter |
| Width | 52mm |
| Energy Efficiency Level | VI |
| Depth | 35mm |
