RS PRO 12W Plug-In AC/DC Adapter 12V dc Output, 1A Output
- RS Stock No.:
- 251-9221
- Distrelec Article No.:
- 304-19-131
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£12.38
(exc. VAT)
£14.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 175 unit(s) ready to ship
- Plus 42 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £12.38 |
5 - 9 | £12.01 |
10 - 24 | £11.63 |
25 - 49 | £11.26 |
50 + | £10.89 |
*price indicative
- RS Stock No.:
- 251-9221
- Distrelec Article No.:
- 304-19-131
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Adapter Type | Plug-In Adapter | |
Plug Type | European | |
Output Voltage | 12V dc | |
Input Voltage | 100 → 240V ac | |
Output Current | 1A | |
Maximum Temperature | +40°C | |
Output Connector | 2.1 x 5.5 mm | |
Input Connector | 2 Pin | |
Number of Outputs | 1 | |
Power Rating | 12W | |
Regulated/Unregulated | Regulated | |
Cable Length | 1.8m | |
Medical Approved | No | |
MTBF | 50000h | |
Efficiency | 82.96% | |
Depth | 58.1mm | |
Minimum Temperature | 0°C | |
Energy Efficiency Level | VI | |
Load Regulation | ±5% | |
Length | 60.65mm | |
Width | 29.14mm | |
Type | AC-DC Power Adapter | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Adapter Type Plug-In Adapter | ||
Plug Type European | ||
Output Voltage 12V dc | ||
Input Voltage 100 → 240V ac | ||
Output Current 1A | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 mm | ||
Input Connector 2 Pin | ||
Number of Outputs 1 | ||
Power Rating 12W | ||
Regulated/Unregulated Regulated | ||
Cable Length 1.8m | ||
Medical Approved No | ||
MTBF 50000h | ||
Efficiency 82.96% | ||
Depth 58.1mm | ||
Minimum Temperature 0°C | ||
Energy Efficiency Level VI | ||
Load Regulation ±5% | ||
Length 60.65mm | ||
Width 29.14mm | ||
Type AC-DC Power Adapter | ||
- COO (Country of Origin):
- CN

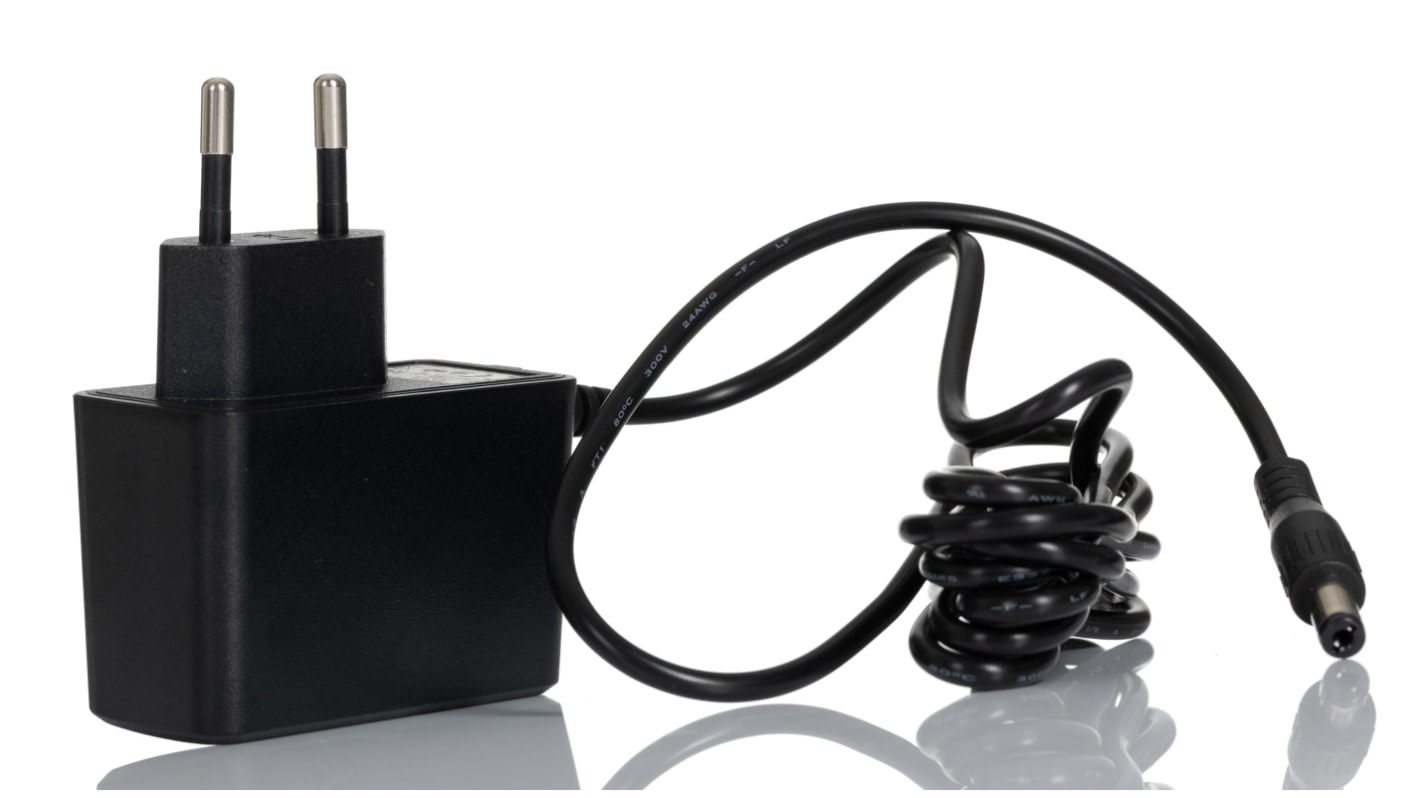

RS PRO 12W AC/DC 2 Pin European Adaptor Plug with 2.1 x 5.5mm Barrel Plug Output
A hardwearing and high performing AC/DC adaptor plug fitted with a 2 Pin Euro plug on one end and a 2.1 x 5.5mm barrel jack on the other.
The RS PRO 12V DC power supply unit meets Efficiency Level VI rating and features Short Circuit, Over Voltage, Over Current and Over Temperature Protection creating a highly efficient and reliable AC/DC adaptor
The AC/DC power supply unit is suitable for use in a wide range of applications including audio and video equipment, telecommunication, lighting as well as connecting peripherals.
Features and Benefits
- European 2 pin to 2.1 x 5.5mm Barrel Plug
- 1.2m cable with strain relief
- High-efficiency rating (VI)
- Over voltage, current and temperature protection
- Short circuit protection
Approvals and Standards: TUV-GS, CE, RoHS, REACH, EN 62368-1/IEC 62368-1, EU 2019/1782 compliant, Level VI Efficiency Regulations, EMC FCC Class B Certified
What is a Plug-in AC-DC Adapter?
Plug in AC-DC adapters are also known as AC Adaptors or AC-DC converters and are a type of external power supply. Some electrical appliances require power but lack the internal components to derive the required voltage and power from mains power. This is where an AC adapter is used to convert the AC current into DC voltage.
Why RS PRO?
Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that youre receiving the exceptional quality, reliability and the best value for money.
