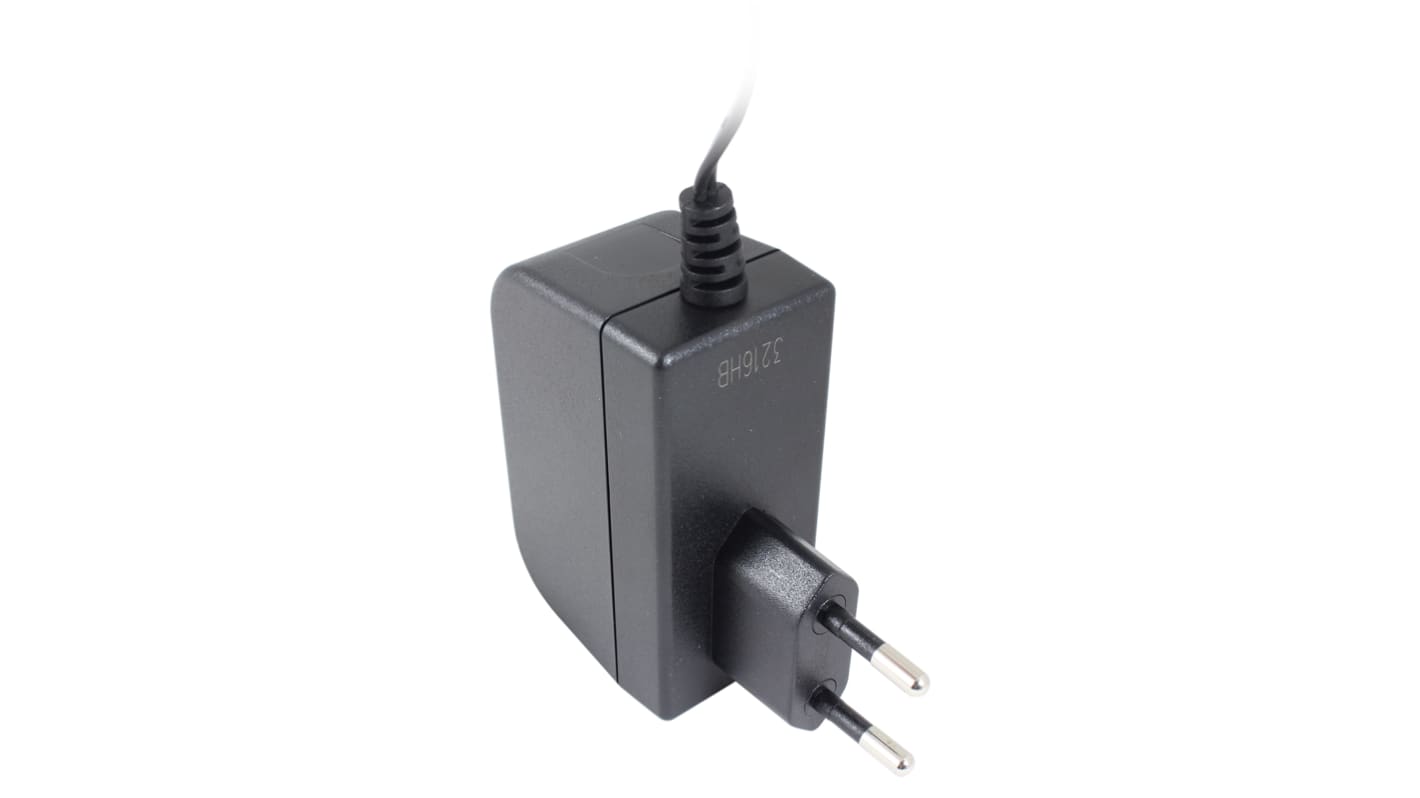

RS PRO 5 W AC/DC Adapter AC/DC Adapter Type C 5V dc Output, 1 A
- RS Stock No.:
- 175-3297
- Distrelec Article No.:
- 304-04-045
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£5.74
(exc. VAT)
£6.89
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 499 unit(s) ready to ship
- Plus 276 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.74 |
| 5 - 9 | £5.57 |
| 10 - 24 | £5.40 |
| 25 - 49 | £5.22 |
| 50 + | £5.05 |
*price indicative
- RS Stock No.:
- 175-3297
- Distrelec Article No.:
- 304-04-045
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | AC/DC Adapter | |
| Sub Type | AC/DC Adapter | |
| Plug Type | Type C | |
| Output Voltage | 5V dc | |
| Power | 5W | |
| Output Connector Type | 2.1 x 5.5 x 12 mm Centre Positive | |
| Cable Length | 1.5m | |
| Number of Outputs | 1 | |
| Adapter Current | 1A | |
| Regulated/Unregulated | Regulated | |
| Input Connector Type | EU Plug | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | EN 60950-1, CE | |
| Length | 67mm | |
| Depth | 72.2mm | |
| Width | 26mm | |
| Maximum Input Voltage | 240V ac | |
| Efficiency | 82.95% | |
| Minimum Input Voltage | 100V ac | |
| Series | T63 | |
| Load Regulation | ±5 % | |
| Energy Efficiency Level | VI | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type AC/DC Adapter | ||
Sub Type AC/DC Adapter | ||
Plug Type Type C | ||
Output Voltage 5V dc | ||
Power 5W | ||
Output Connector Type 2.1 x 5.5 x 12 mm Centre Positive | ||
Cable Length 1.5m | ||
Number of Outputs 1 | ||
Adapter Current 1A | ||
Regulated/Unregulated Regulated | ||
Input Connector Type EU Plug | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals EN 60950-1, CE | ||
Length 67mm | ||
Depth 72.2mm | ||
Width 26mm | ||
Maximum Input Voltage 240V ac | ||
Efficiency 82.95% | ||
Minimum Input Voltage 100V ac | ||
Series T63 | ||
Load Regulation ±5 % | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN
RS PRO, 5 W Plug Adapter 5 V DC, 1 A, Level VI Efficiency, 1 Output Power Adapter, Type C
Need an EU-compatible plug to charge your electrical equipment? This 5 W power adapter from RS PRO includes a two-pin, Type C plug used throughout the EU, so you won't need a separate UK-EU converter. It allows you to charge or power small devices requiring a 5 V DC supply from your AC mains.
The unit comes with a single centre-positive output connector (2.1 x 5.5 x 12 mm) that's compatible with a wide range of equipment. Its 1.5 m cable also gives you greater flexibility when finding a mains socket.
With a mean time between failures (MTBF) of 50000 hours, this adapter is highly reliable. It meets both the BS3535 and EN 60 742 standards for electrical safety.
Features and Benefits
• Input voltage range of 100 to 240 V AC
• Regulated output
• Maximum input current of 0.2 A
• Output current of 1 A
• Load and line regulation of ±5%
• Dimensions of 67 (L) x 26 (W) x 72.2 mm (D)
• Operating temperature range of 0°C to +40°C
• Input frequency range of 47 to 63 Hz
• Weight of 80 g
• Holdup time of 5 ms
• Ripple and noise of 300 mV
• Energy Efficiency Level VI
