RS PRO 24 W AC-DC Converter Power Supplies AC/DC Adapter 12V dc Output, 2 A
- RS Stock No.:
- 175-3275
- Distrelec Article No.:
- 304-05-358
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£17.94
(exc. VAT)
£21.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 330 unit(s) shipping from 29 June 2026
- Plus 43 unit(s) shipping from 29 June 2026
- Plus 500 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £17.94 |
| 5 - 9 | £17.39 |
| 10 - 24 | £16.87 |
| 25 - 49 | £16.32 |
| 50 + | £15.79 |
*price indicative
- RS Stock No.:
- 175-3275
- Distrelec Article No.:
- 304-05-358
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Sub Type | AC-DC Converter Power Supplies | |
| Product Type | AC/DC Adapter | |
| Output Voltage | 12V dc | |
| Power | 24W | |
| Output Connector Type | 2.1 x 5.5 x 12 mm Centre Positive - Right Angle | |
| Cable Length | 80.6mm | |
| Number of Outputs | 1 | |
| Regulated/Unregulated | Regulated | |
| Input Connector Type | IEC 320-C8 | |
| Adapter Current | 2A | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 40°C | |
| Length | 80.6mm | |
| Depth | 31mm | |
| Standards/Approvals | EN 60950-1, CE | |
| Width | 50mm | |
| Efficiency | 86.2% | |
| Maximum Input Voltage | 240V ac | |
| Energy Efficiency Level | VI | |
| Series | C8 | |
| Minimum Input Voltage | 90V ac | |
| Load Regulation | ±5 % | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Sub Type AC-DC Converter Power Supplies | ||
Product Type AC/DC Adapter | ||
Output Voltage 12V dc | ||
Power 24W | ||
Output Connector Type 2.1 x 5.5 x 12 mm Centre Positive - Right Angle | ||
Cable Length 80.6mm | ||
Number of Outputs 1 | ||
Regulated/Unregulated Regulated | ||
Input Connector Type IEC 320-C8 | ||
Adapter Current 2A | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 40°C | ||
Length 80.6mm | ||
Depth 31mm | ||
Standards/Approvals EN 60950-1, CE | ||
Width 50mm | ||
Efficiency 86.2% | ||
Maximum Input Voltage 240V ac | ||
Energy Efficiency Level VI | ||
Series C8 | ||
Minimum Input Voltage 90V ac | ||
Load Regulation ±5 % | ||
- COO (Country of Origin):
- CN

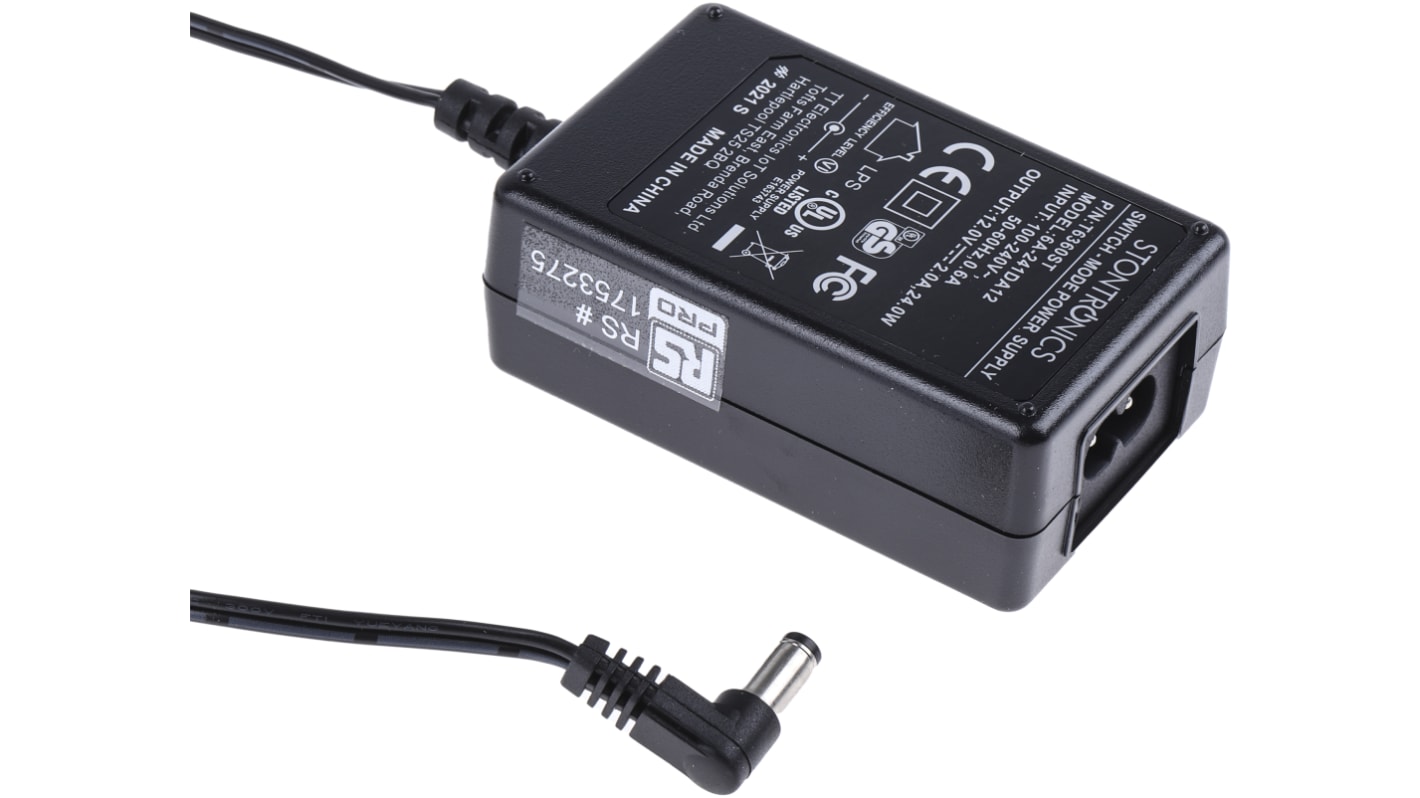

The RS Pro Range of 24 watt AC/DC switch mode power supplies provide 24 watts of continuous output power in a high quality compact enclosure suitable for many general power applications.
Features:
• Universal Input
• IEC-320-C8 Input Connector
• 3 Year Warranty
• Efficiency Level VI
• Safety approved to: IEC60950, UL60950, EN60950
