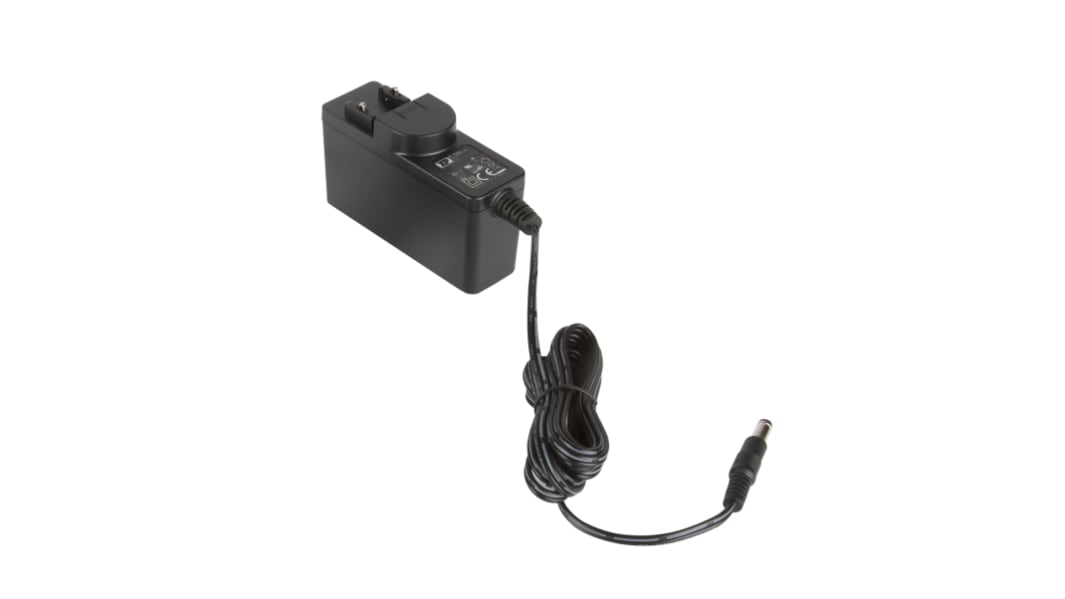

XP Power 36W Plug-In AC/DC Adapter 9V dc Output, 4A Output
- RS Stock No.:
- 172-0721
- Distrelec Article No.:
- 301-83-272
- Mfr. Part No.:
- ACM36US09
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 172-0721
- Distrelec Article No.:
- 301-83-272
- Mfr. Part No.:
- ACM36US09
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Adapter Type | Plug-In Adapter | |
| Plug Type | Interchangeable | |
| Output Voltage | 9V dc | |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | |
| Output Current | 4A | |
| Maximum Temperature | +60°C | |
| Output Connector | 2.5 x 5.5 x 11 mm Centre Positive | |
| Input Connector | Universal Plug | |
| Number of Outputs | 1 | |
| Power Rating | 36W | |
| Cable Length | 1.5m | |
| Medical Approved | Yes | |
| Depth | 59.5mm | |
| Type | AC/DC Adapter | |
| Width | 33mm | |
| Minimum Temperature | 0°C | |
| Load Regulation | 5% | |
| Energy Efficiency Level | VI | |
| Series | ACM36 | |
| Length | 96.7mm | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Adapter Type Plug-In Adapter | ||
Plug Type Interchangeable | ||
Output Voltage 9V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | ||
Output Current 4A | ||
Maximum Temperature +60°C | ||
Output Connector 2.5 x 5.5 x 11 mm Centre Positive | ||
Input Connector Universal Plug | ||
Number of Outputs 1 | ||
Power Rating 36W | ||
Cable Length 1.5m | ||
Medical Approved Yes | ||
Depth 59.5mm | ||
Type AC/DC Adapter | ||
Width 33mm | ||
Minimum Temperature 0°C | ||
Load Regulation 5% | ||
Energy Efficiency Level VI | ||
Series ACM36 | ||
Length 96.7mm | ||
The ACM36 series of wall plug adaptors comply with the latest energy efficiency level VI standards with high active mode efficiency and extremely low no load power consumption. Available with a standard jack plug connector these adaptors suit a wide variety of cost sensitive industrial and medical applications while maintaining industry leading performance.
Interchangeable Mains Connectors
Output Voltages from 9 V to 36 V
3 Years Warranty
Output Voltages from 9 V to 36 V
3 Years Warranty
