MEAN WELL 359W Power Brick AC/DC Adapter 27.6V dc Output, 0 → 13A Output
- RS Stock No.:
- 136-1321
- Mfr. Part No.:
- ENP-360-24
- Brand:
- MEAN WELL
3 In stock - FREE next working day delivery available
Added
Price Each
£105.46
(exc. VAT)
£126.55
(inc. VAT)
| Units | Per unit |
| 1 + | £105.46 |
- RS Stock No.:
- 136-1321
- Mfr. Part No.:
- ENP-360-24
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details

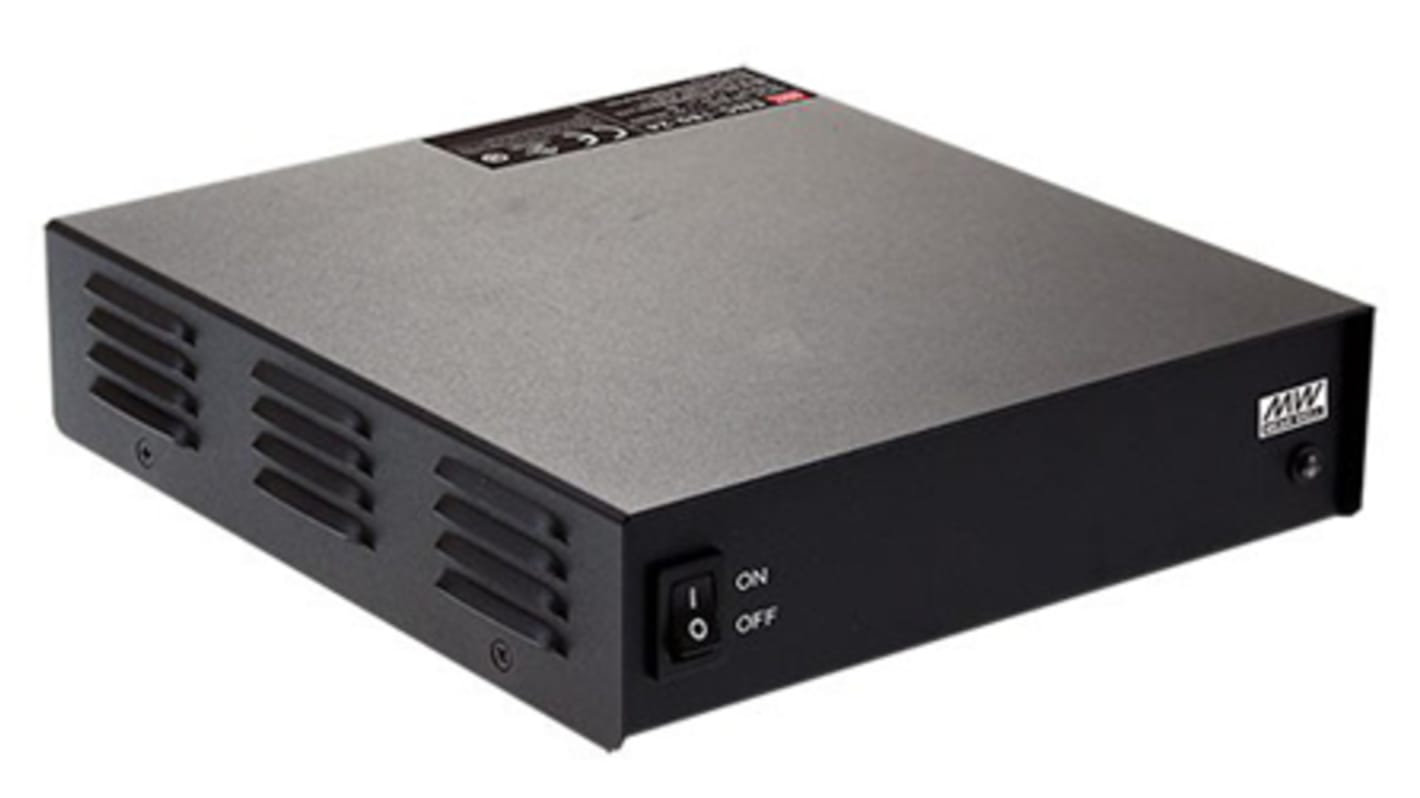

Mean Well ENP-360 Series Desktop Power Supplies
From Mean Well, the ENP-360 series of desktop power supplies have a standard 7" width for use in the mobile radio field. With a rated output of 360 W and a rugged design, this series also provides the most frequently used voltages within communication applications. ENP-360 desktop power supplies operate between -30°C and +70°C and are cooled by free air convection.
Features and Benefits:
Universal AC input and full range
High efficiency circuitry
Overload, overvoltage, overtemperature and short circuit protection
Built in power faction correction function
125% peak load capability
Fanless design
VI Level energy efficiency
Efficiency between 91% and 94% (depending on model)
Compliant with EISA 2007/DoE, NRCan and EU ErP
Product Applications:
These desktop power supplies are designed for communication-related applications. Suitable applications include TV antenna facilities, surveillance systems, electric scooter charging and land mobile radio systems.
Not supplied input power lead - C13 power lead needs to be ordered separately
Standards
UL60950-1 approved
EMC Emission: Compliance to EN55022 (CISPR22) class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 class B
EMC immunity: Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, light industry level, criteria A
EMC Emission: Compliance to EN55022 (CISPR22) class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 class B
EMC immunity: Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, light industry level, criteria A
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Power Brick Adapter |
| Output Voltage | 27.6V dc |
| Input Voltage | 90 → 264V ac |
| Output Current | 0 → 13A |
| Maximum Temperature | +70°C |
| Number of Outputs | 1 |
| Power Rating | 359W |
| MTBF | 147500h |
| Efficiency | 93% |
| Series | ENP-360 |
| Length | 192mm |
| Minimum Temperature | -30°C |
| Load Regulation | +1% |
| Width | 178mm |
| Line Regulation Range | +0.5% |
| Energy Efficiency Level | VI |
| Depth | 45.5mm |
