Stontronics 13 W AC-DC Converter Power Supplies AC/DC Adapter Type C 5.1V dc Output, 2.5 A
- RS Stock No.:
- 123-5272
- Mfr. Part No.:
- T6143DV
- Brand:
- Stontronics
Subtotal (1 box of 60 units)*
£403.74
(exc. VAT)
£484.50
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 5,580 unit(s), ready to ship
Units | Per unit | Per Box* |
|---|---|---|
| 60 + | £6.729 | £403.74 |
*price indicative
- RS Stock No.:
- 123-5272
- Mfr. Part No.:
- T6143DV
- Brand:
- Stontronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Stontronics | |
| Product Type | AC/DC Adapter | |
| Sub Type | AC-DC Converter Power Supplies | |
| Plug Type | Type C | |
| Output Voltage | 5.1V dc | |
| Output Connector Type | Micro USB Type B | |
| Power | 13W | |
| Cable Length | 1.5m | |
| Number of Outputs | 1 | |
| Input Connector Type | EU Plug | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 2.5A | |
| Maximum Operating Temperature | 40°C | |
| Depth | 35.1mm | |
| Standards/Approvals | EN 55022, EMI, CE | |
| Length | 73.2mm | |
| Width | 45.1mm | |
| Efficiency | 80.86% | |
| Maximum Input Voltage | 240V ac | |
| Minimum Input Voltage | 100V ac | |
| Load Regulation | 5 % | |
| Energy Efficiency Level | VI | |
| Series | T614 | |
| Select all | ||
|---|---|---|
Brand Stontronics | ||
Product Type AC/DC Adapter | ||
Sub Type AC-DC Converter Power Supplies | ||
Plug Type Type C | ||
Output Voltage 5.1V dc | ||
Output Connector Type Micro USB Type B | ||
Power 13W | ||
Cable Length 1.5m | ||
Number of Outputs 1 | ||
Input Connector Type EU Plug | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 2.5A | ||
Maximum Operating Temperature 40°C | ||
Depth 35.1mm | ||
Standards/Approvals EN 55022, EMI, CE | ||
Length 73.2mm | ||
Width 45.1mm | ||
Efficiency 80.86% | ||
Maximum Input Voltage 240V ac | ||
Minimum Input Voltage 100V ac | ||
Load Regulation 5 % | ||
Energy Efficiency Level VI | ||
Series T614 | ||
- COO (Country of Origin):
- CN

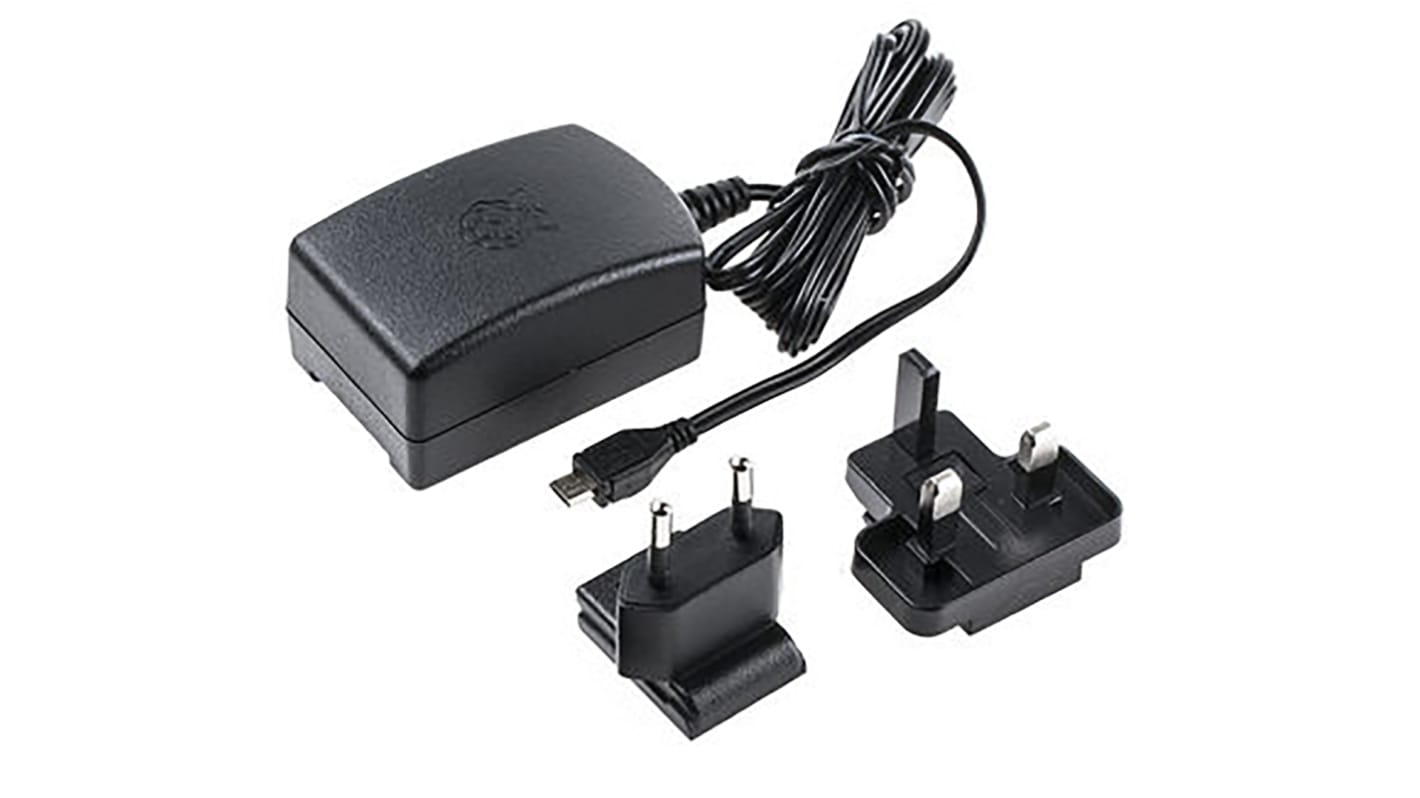

Stontronics Power Supply
The Stontronics power supply unit for the Raspberry Pi has a regulated output voltage of 5.1VDC. It supports numerous applications due to a wide range of input (90-264VAC) that complies with the universal standard. This mains power supply has a 1.5m cable and a micro USB plug. It has 2 interchangeable plugs so you can use it in the UK and Europe.
Note:
The Official Pi 3 power supply unit is for the Pi 3 board only. The power supply unit is not for any general-purpose power supply.
Features and Benefits
Nominal output power is 13W
short-circuit
Over-current and over-voltage protection
Low standby current consumption
Class II double insulated
ERP level 6 efficiency rating
Nominal load current is 2.5A
50,000 hour MTBF
