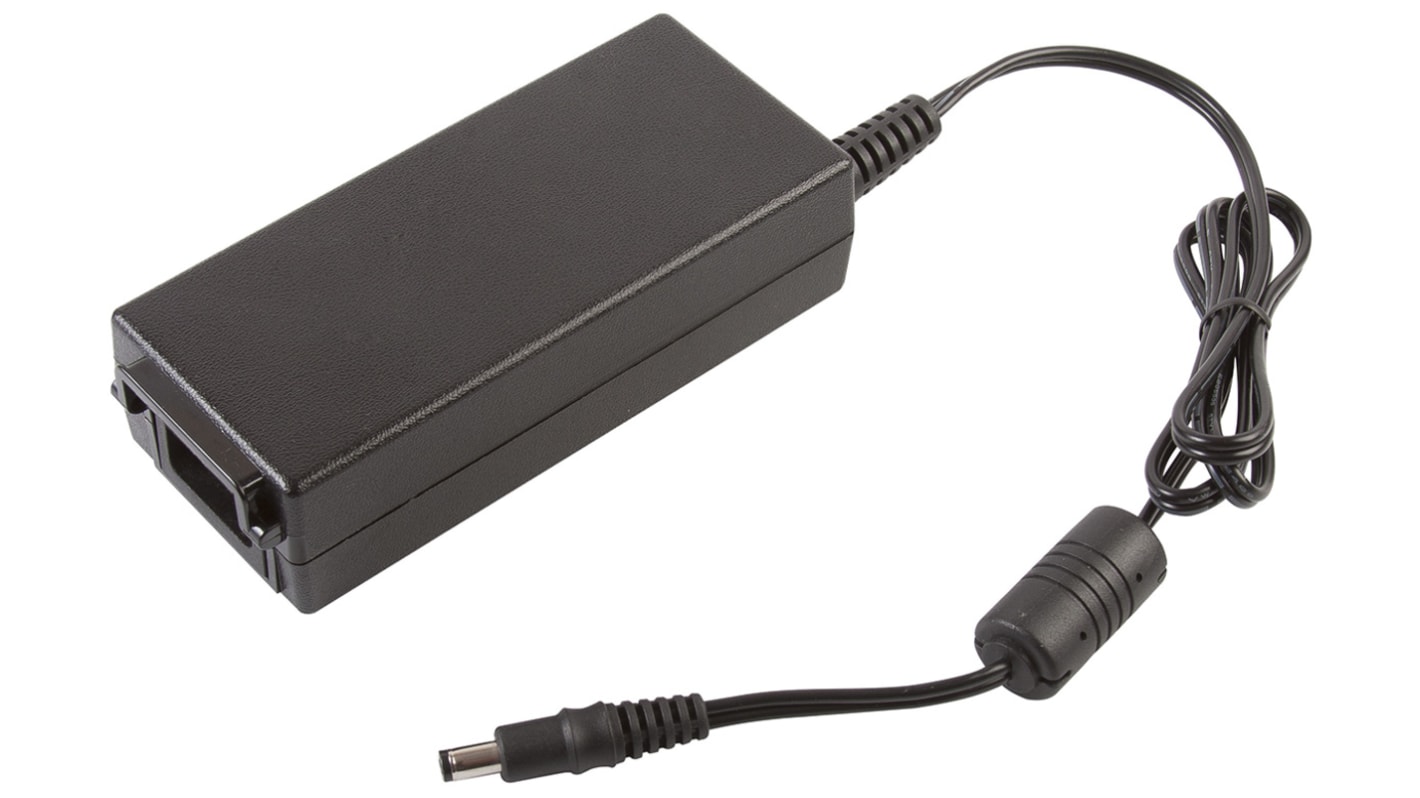

XP Power 65W Power Brick AC/DC Adapter 24V dc Output, 2.7A Output
- RS Stock No.:
- 121-7100
- Distrelec Article No.:
- 301-83-336
- Mfr. Part No.:
- ALM65US24
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£39.62
(exc. VAT)
£47.54
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 30 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £39.62 |
| 5 - 9 | £38.44 |
| 10 - 24 | £37.24 |
| 25 - 49 | £36.06 |
| 50 + | £34.88 |
*price indicative
- RS Stock No.:
- 121-7100
- Distrelec Article No.:
- 301-83-336
- Mfr. Part No.:
- ALM65US24
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Adapter Type | Power Brick Adapter | |
| Output Voltage | 24V dc | |
| Input Voltage | 90 → 264V ac | |
| Output Current | 2.7A | |
| Maximum Temperature | +60°C | |
| Output Connector | DC Plug | |
| Input Connector | IEC 320-C14 | |
| Number of Outputs | 1 | |
| Power Rating | 65W | |
| Cable Length | 900mm | |
| Medical Approved | Yes | |
| MTBF | >300kh | |
| Width | 55.5mm | |
| Depth | 33.5mm | |
| Length | 130mm | |
| Line Regulation Range | ±0.5% | |
| Series | ALM65 | |
| Energy Efficiency Level | VI | |
| Minimum Temperature | 0°C | |
| Load Regulation | ±5% | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Adapter Type Power Brick Adapter | ||
Output Voltage 24V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 2.7A | ||
Maximum Temperature +60°C | ||
Output Connector DC Plug | ||
Input Connector IEC 320-C14 | ||
Number of Outputs 1 | ||
Power Rating 65W | ||
Cable Length 900mm | ||
Medical Approved Yes | ||
MTBF >300kh | ||
Width 55.5mm | ||
Depth 33.5mm | ||
Length 130mm | ||
Line Regulation Range ±0.5% | ||
Series ALM65 | ||
Energy Efficiency Level VI | ||
Minimum Temperature 0°C | ||
Load Regulation ±5% | ||
- COO (Country of Origin):
- VN
XP Power Desktop Power Supply
The XP Power ALM65 series plug-in Power unit desktop Power supply has an output voltage rating of 48VDC. It provides 65W of continuous output power in a high-quality, compact enclosure suitable for many general Power applications. It has an input frequency of 47Hz to 63Hz. While the input voltage rating ranging from 80VAC to 264VAC, its maximum output current is 2.7A. It is ideal for many small electrical devices.
Features and Benefits
Energy efficiency level VI
4th Edition Medical EMC
Output connection type is DC plug
Load regulation range is ±5%
Holdup time is 20ms
Efficiency is 88%
4th Edition Medical EMC
Output connection type is DC plug
Load regulation range is ±5%
Holdup time is 20ms
Efficiency is 88%
Certifications
Class I
Class II
EN55022
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-3, 3 V/m Perf Criteria A
EN61000-4-4, level 3 Perf Criteria A
EN61000-4-5
Installation class 3 Perf Criteria A
EN61000-4-6, 3 Vrms Perf Criteria A
EN61000-4-8, 3 A/m, Perf Criteria A
EN61000-4-11
UL60950-1
IEC60950-1
EN60601-1 (3rd Ed.)
UL60601-1 (2nd Ed.)
IEC60601-1
Class II
EN55022
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-3, 3 V/m Perf Criteria A
EN61000-4-4, level 3 Perf Criteria A
EN61000-4-5
Installation class 3 Perf Criteria A
EN61000-4-6, 3 Vrms Perf Criteria A
EN61000-4-8, 3 A/m, Perf Criteria A
EN61000-4-11
UL60950-1
IEC60950-1
EN60601-1 (3rd Ed.)
UL60601-1 (2nd Ed.)
IEC60601-1
