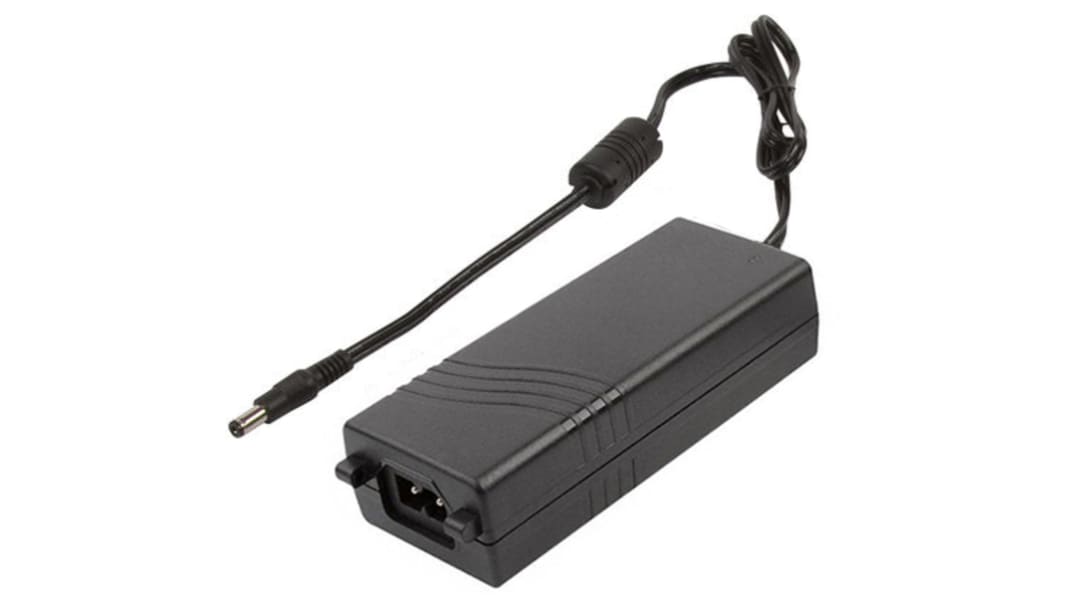

XP Power 65W Power Brick AC/DC Adapter 19V dc Output, 3.4A Output
- RS Stock No.:
- 121-7099
- Mfr. Part No.:
- ALM65US19C2-8
- Brand:
- XP Power
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£37.77
(exc. VAT)
£45.32
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £37.77 |
| 5 - 9 | £36.64 |
| 10 - 24 | £35.50 |
| 25 - 49 | £34.37 |
| 50 + | £33.24 |
- RS Stock No.:
- 121-7099
- Mfr. Part No.:
- ALM65US19C2-8
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- VN
Product Details
XP Power - ALM65 Series of AC-DC Power Supplies
The ALM65 series from XP Power offers a wide range of 65 W plug-in power supplies, all of which feature level VI energy efficiency. These reliable power supplies are available in Class I and Class II versions and are all medically and ITE safety approved. The range also features <0.21 W standby power and a low earth leakage current. This highly efficient range of power supplies has an operating temperature of 0°C to +60 °C and an IP32 environmental rating.
65 W plug-in power supplies
Energy efficiency level VI
Class I and Class II versions available
Medical and ITE Safety Approved
<0.21 W standby power
Low earth leakage current
4th Edition Medical EMC
3-year warranty
0°C to +60 °C Operating temperature
Energy efficiency level VI
Class I and Class II versions available
Medical and ITE Safety Approved
<0.21 W standby power
Low earth leakage current
4th Edition Medical EMC
3-year warranty
0°C to +60 °C Operating temperature
Switch Mode - XP Power
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Power Brick Adapter |
| Output Voltage | 19V dc |
| Input Voltage | 90 → 264V ac |
| Output Current | 3.4A |
| Maximum Temperature | +60°C |
| Output Connector | DC Plug |
| Input Connector | IEC 320-C8 |
| Number of Outputs | 1 |
| Power Rating | 65W |
| Cable Length | 900mm |
| Medical Approved | Yes |
| MTBF | >300kh |
| Width | 55.5mm |
| Depth | 33.5mm |
| Length | 130mm |
| Energy Efficiency Level | VI |
| Series | ALM65 |
| Minimum Temperature | 0°C |
| Line Regulation Range | ±0.5% |
| Load Regulation | ±5% |
