XP Power DC Jack Power Adapter AC/DC Adapter 48 W 12V dc Output, 4 A
- RS Stock No.:
- 121-7028
- Distrelec Article No.:
- 301-83-294
- Mfr. Part No.:
- AFM45US12C2
- Brand:
- XP Power
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£45.81
(exc. VAT)
£54.97
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £45.81 |
| 5 - 9 | £44.43 |
| 10 - 24 | £43.07 |
| 25 - 49 | £41.69 |
| 50 + | £40.31 |
*price indicative
- RS Stock No.:
- 121-7028
- Distrelec Article No.:
- 301-83-294
- Mfr. Part No.:
- AFM45US12C2
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | AC/DC Adapter | |
| Sub Type | Power Adapter | |
| Output Voltage | 12V dc | |
| Power | 48W | |
| Output Connector Type | DC Jack | |
| Cable Length | 950mm | |
| Number of Outputs | 1 | |
| Adapter Current | 4A | |
| Input Connector Type | IEC 320-C8 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 121mm | |
| Standards/Approvals | EN 60950-1, CE, CB, UL 60950-1 | |
| Width | 50mm | |
| Depth | 30.8mm | |
| Efficiency | 87.7% | |
| Maximum Input Voltage | 264V ac | |
| Energy Efficiency Level | V | |
| Minimum Input Voltage | 80V ac | |
| Series | AFM | |
| Load Regulation | 2.5 % | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type AC/DC Adapter | ||
Sub Type Power Adapter | ||
Output Voltage 12V dc | ||
Power 48W | ||
Output Connector Type DC Jack | ||
Cable Length 950mm | ||
Number of Outputs 1 | ||
Adapter Current 4A | ||
Input Connector Type IEC 320-C8 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Length 121mm | ||
Standards/Approvals EN 60950-1, CE, CB, UL 60950-1 | ||
Width 50mm | ||
Depth 30.8mm | ||
Efficiency 87.7% | ||
Maximum Input Voltage 264V ac | ||
Energy Efficiency Level V | ||
Minimum Input Voltage 80V ac | ||
Series AFM | ||
Load Regulation 2.5 % | ||
- COO (Country of Origin):
- CN

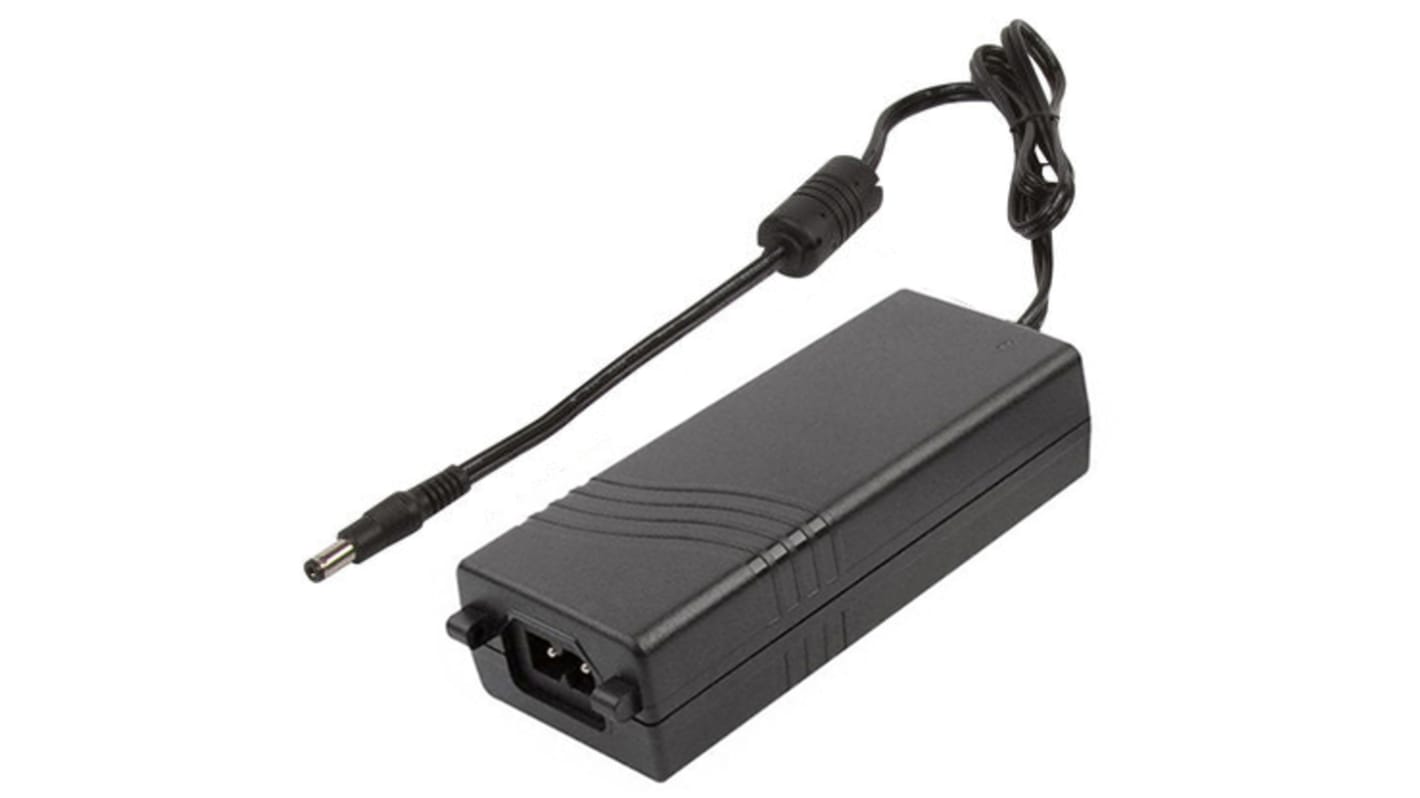

XP Power Desktop Power Supply
The XP Power AFM series plug-in Power unit desktop Power supply has an output voltage rating of 12VDC. It provides 48W of continuous output power in a high-quality, compact enclosure suitable for many general Power applications. It has an input frequency of 50Hz to 60Hz. While the input voltage rating ranging from 80VAC to 264VAC, its maximum output current is 4A. It is ideal for many small electrical devices.
Features and Benefits
Energy efficiency level V
Output connection type is DC plug
Load regulation range is 2.5%
Holdup time is 8ms
Efficiency is 87.7%
Certifications
CEC2008
EISA2007
IT and medical approvals
China compulsory certification (CCC) qualified
Optional class II versions
Optional white case versions
EN55011/22/FCC class B conducted
EN55011/22/FCC class B radiated
EN61000-3-2, class A
EN61000-3-3
EN61000-4-2
EN61000-4-3, 3 V/m perf criteria A
EN61000-4-4, level 3 perf criteria A
EN61000-4-5
Installation class 3 perf criteria A
EN61000-4-6, 3 Vrms perf criteria A
EN61000-4-8, 3 A/m, perf criteria A
EN61000-4-11
UL60950-1
IEC60950-1
EN60601-1 (3rd Ed.)
UL60601-1 (2nd Ed.)
IEC60601-1
