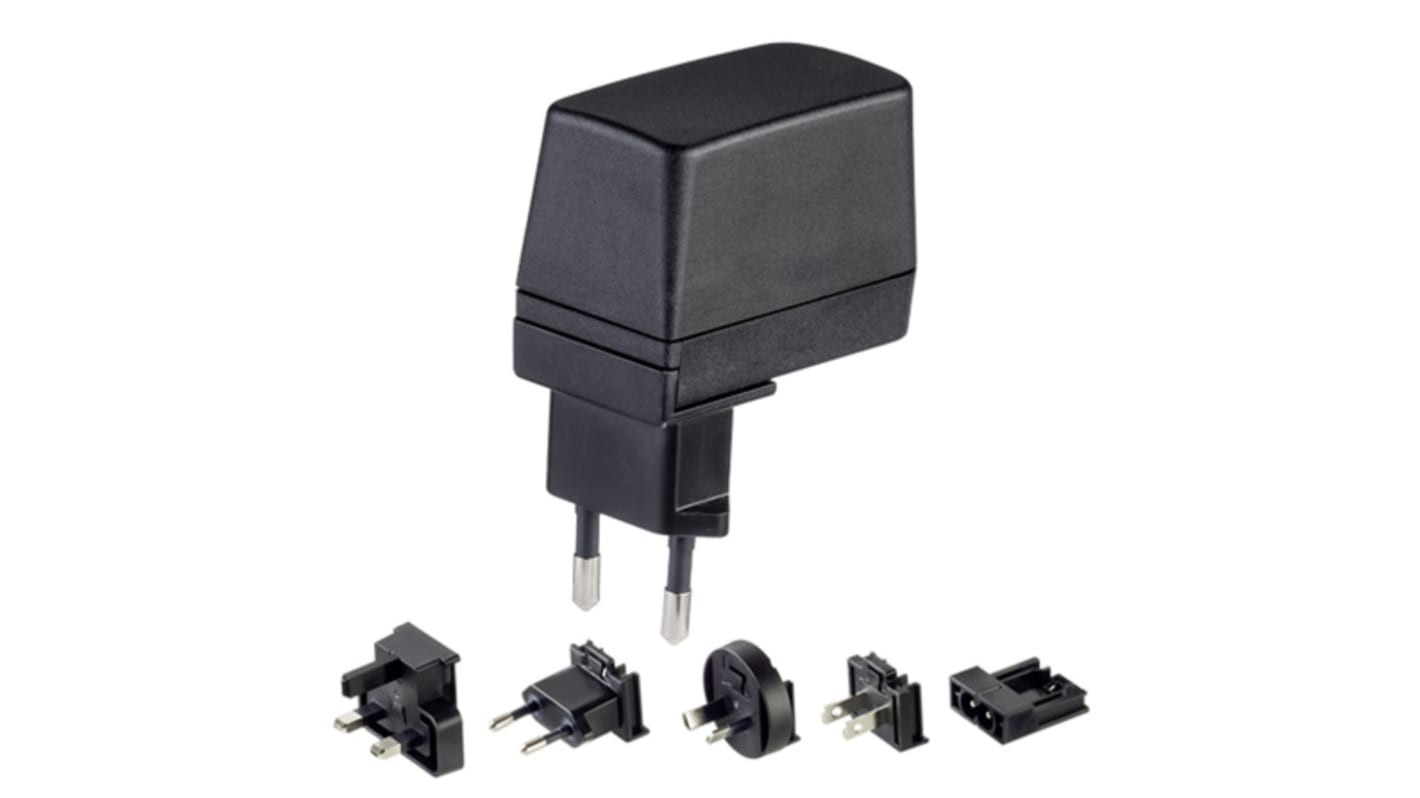

Friwo 7.5 W AC/DC Adapter Interchangeable 12V dc Output, 600 mA
- RS Stock No.:
- 117-6608
- Distrelec Article No.:
- 304-10-265
- Mfr. Part No.:
- EDV1898110RS
- Brand:
- Friwo
Bulk discount available
Subtotal (1 unit)*
£27.05
(exc. VAT)
£32.46
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £27.05 |
| 5 - 9 | £26.23 |
| 10 - 24 | £25.42 |
| 25 - 49 | £24.62 |
| 50 + | £23.80 |
*price indicative
- RS Stock No.:
- 117-6608
- Distrelec Article No.:
- 304-10-265
- Mfr. Part No.:
- EDV1898110RS
- Brand:
- Friwo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Friwo | |
| Product Type | AC/DC Adapter | |
| Plug Type | Interchangeable | |
| Output Voltage | 12V dc | |
| Power | 7.5W | |
| Output Connector Type | Interchangeable | |
| Cable Length | 58mm | |
| Number of Outputs | 1 | |
| Adapter Current | 600mA | |
| Input Connector Type | Universal Plug | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 45°C | |
| Width | 41mm | |
| Depth | 41mm | |
| Standards/Approvals | CE, cULus, EN 55022, EN 55024, EN EC22, IEC 60065, IEC 60335-1, IEC 60950, PSE, SIQ | |
| Length | 58mm | |
| Efficiency | 80% | |
| Minimum Input Voltage | 100V ac | |
| Energy Efficiency Level | VI | |
| Series | FW8002 | |
| Select all | ||
|---|---|---|
Brand Friwo | ||
Product Type AC/DC Adapter | ||
Plug Type Interchangeable | ||
Output Voltage 12V dc | ||
Power 7.5W | ||
Output Connector Type Interchangeable | ||
Cable Length 58mm | ||
Number of Outputs 1 | ||
Adapter Current 600mA | ||
Input Connector Type Universal Plug | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 45°C | ||
Width 41mm | ||
Depth 41mm | ||
Standards/Approvals CE, cULus, EN 55022, EN 55024, EN EC22, IEC 60065, IEC 60335-1, IEC 60950, PSE, SIQ | ||
Length 58mm | ||
Efficiency 80% | ||
Minimum Input Voltage 100V ac | ||
Energy Efficiency Level VI | ||
Series FW8002 | ||
Friwo FOX Series Global Plug In Power Adapter
Friwo FOX series of power supplies are a meticulously designed range designed to meet Department of Energy level VI requirements. The Friwo FOX range offers a range of output voltages ranging from 5 to 48 V dc, and is compatible with the FOX interchangeable plug system. Power consumption while idle is low, and the running efficiency offers some of the highest in it's class.
The Friwo FOX series comes equipped with industry standard protection features, such as short circuit, overload & overvoltage.
Supplied with 4 interchangeable mains plugs for use in UK, Europe, USA, Japan and Australia.
Features and Benefits
Voltage outputs available from 5 to 48 V dc.
USB output options available.
Interchangeable plug system allows for flexibility.
Medical rated options available, to adhere to 2 x MOPP.
Meets energy efficiency standards DOE Level VI & ErP Level V.
Friwo's partial potting technology within the FOX series provides a cost-effective sealed unit.
Switch Mode - Friwo
Standards
IEC/EN/UL 60950, IEC/EN/ ANSI/AAMI ES60601
Supplied with
A set of 7 output connectors
